Aluninum Carbide Inserts

Aluninum Carbide Inserts

HI-POLISH ALUMINUM INSERTS

UNCOATED GRADE C520 (C-2) General purpose grade designed for cast iron and non-ferrous materials. Can also be used for machining 200 and 300 series stainless steel. Provides excellent wear resistance. C550 (C-5) Designed for heavy roughing to semi-finishing of all steels COATED GRADE CM02 (C-2) Multi Layer coating TiC/Al2O3/TiN. Good toughness, high strength in use and versatility for roughing, medium roughing of steel, alloy steel and cast-iron, especially for high speed and quick cutting. Aluminum oxide coating for machining 200 and 300 series stainless steel. CM-14 (C-5) Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tools steel. Provides longer tool life than uncoated grades. X-Treme (C-5) Layer coating TiAlN for turning and milling carbon alloy steels, steel and stainless steel. Provides longer tool life perfect for dry machining due to its good corrosion resistance, high hardness, high heat resistance (800 C-1475 F) and its self lubricating properties.

Items 1-12 of 26

Set Descending Direction

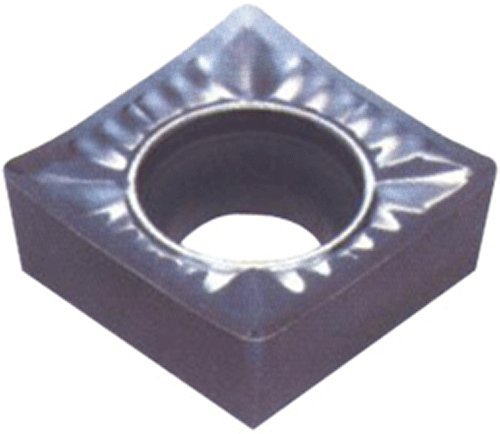

  1. INSERT 06 02 02 :
    #CCGX 21.50
    INSERT 06 02 02 :
    CCGX 21.50 INSERT 06 02 02 : 1/4 I.C.: 3/32 WIDTH: 0.008 CORNER RADIUS: 0.110 THRU HOLE
    $5.33
  2. INSERT 06 02 04 :
    #CCGX 21.51
    INSERT 06 02 04 :
    CCGX 21.51 INSERT 06 02 04 : 1/4 I.C.: 3/32 WIDTH: 1/64 CORNER RADIUS: 0.110 THRU HOLE
    $5.33
  3. INSERT 09 T3 02 :
    #CCGX 32.50
    INSERT 09 T3 02 :
    CCGX 32.50 INSERT 09 T3 02 : 3/8 I.C.: 5/32 WIDTH: 0.008 CORNER RADIUS: 0.173 THRU HOLE
    $5.33
  4. INSERT 09 T3 04 :
    #CCGX 32.51
    INSERT 09 T3 04 :
    CCGX 32.51 INSERT 09 T3 04 : 3/8 I.C.: 5/32 WIDTH: 1/64 CORNER RADIUS: 0.173 THRU HOLE
    $5.33
  5. INSERT 09 T3 08 :
    #CCGX 32.52
    INSERT 09 T3 08 :
    CCGX 32.52 INSERT 09 T3 08 : 3/8 I.C.: 5/32 WIDTH: 1/32 CORNER RADIUS: 0.173 THRU HOLE
    $5.33
  6. INSERT 12 04 04 :
    #CCGX 431
    INSERT 12 04 04 :
    CCGX 431 INSERT 12 04 04 : 1/2 I.C.: 3/16 WIDTH: 1/64 CORNER RADIUS: 0.203 THRU HOLE
    $6.00
  7. INSERT 12 04 08 :
    #CCGX 432
    INSERT 12 04 08 :
    CCGX 432 INSERT 12 04 08 : 1/2 I.C.: 3/16 WIDTH: 1/32 CORNER RADIUS: 0.203 THRU HOLE
    $6.00
  8. INSERT 07 02 02 :
    #DCGX 21.50
    INSERT 07 02 02 :
    DCGX 21.50 INSERT 07 02 02 : 1/4 I.C.: 3/32 WIDTH: 0.008 CORNER RADIUS: 0.110 THRU HOLE
    $5.70
  9. INSERT 07 02 04 :
    #DCGX 21.51
    INSERT 07 02 04 :
    DCGX 21.51 INSERT 07 02 04 : 1/4 I.C.: 3/32 WIDTH: 1/64 CORNER RADIUS: 0.110 THRU HOLE
    $5.70
  10. INSERT 11 T3 02 :
    #DCGX 32.50
    INSERT 11 T3 02 :
    DCGX 32.50 INSERT 11 T3 02 : 3/8 I.C.: 5/32 WIDTH: 0.008 CORNER RADIUS: 0.173 THRU HOLE
    $6.00
  11. INSERT 11 T3 04 :
    #DCGX 32.51
    INSERT 11 T3 04 :
    DCGX 32.51 INSERT 11 T3 04 : 3/8 I.C.: 5/32 WIDTH: 1/64 CORNER RADIUS: 0.173 THRU HOLE
    $6.00

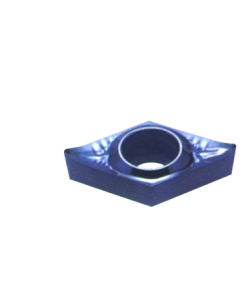

  12. INSERT 11 T3 08 :
    #DCGX 32.52
    INSERT 11 T3 08 :
    DCGX 32.52 INSERT 11 T3 08 : 3/8 I.C.: 5/32 WIDTH: 1/32 CORNER RADIUS: 0.173 THRU HOLE
    $6.00
Page
per page
Shop By
Shopping Options
Category
  1. CCGX 7item
  2. DCGX 5item
  3. TCGX 5item
  4. SCGX 3item
  5. VCGX 6item
Cut Viewing
  1. Standard Cut or Double Cut 26item
Price
  1. $5.00 - $5.99 14item
  2. $6.00 and above 12item
