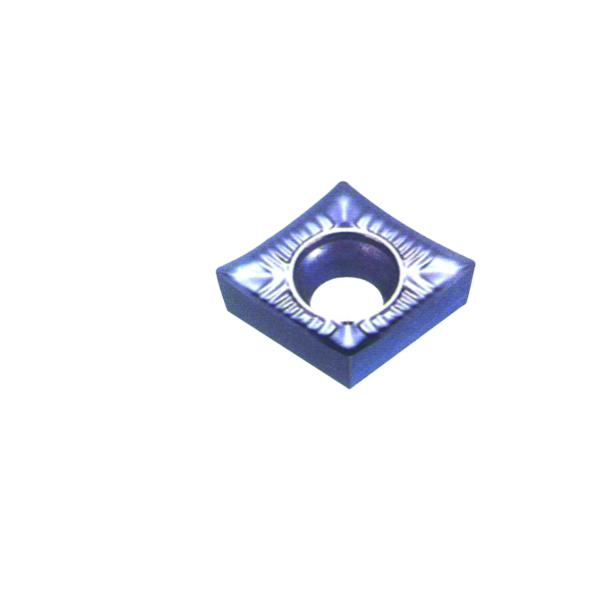

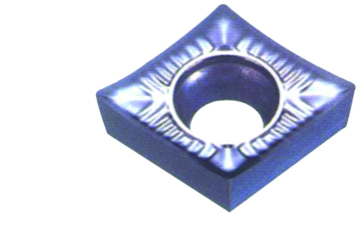

CCGX Style Screw-On High Polish Turning Insert
Product Overview
Meet the CCGX 431 INSERT 12 04 04, a specially designed turning insert crafted to handle aluminum with precision. Its 80-degree diamond shape and high polish finish make it ideal for smooth and efficient machining tasks.
If you’re a metalworker or machinist tackling aluminum parts, this screw-on style insert is tailored for your needs. Its molded chip breaker enhances chip control, reducing interruptions during work.
Combining durability with performance, this insert supports both standard and double cut types, ensuring versatility. Upgrade your turning setup with this reliable, precision-crafted insert that keeps your aluminum machining clean and efficient.
Key Features
- 80-degree diamond single-sided shape optimized for aluminum turning
- High polish surface finish for smoother cuts and reduced material buildup
- Screw-on style insert ensures secure mounting and easy replacement
- Molded chip breaker enhances chip control and minimizes clogging
- Standard and double cut options to suit various machining needs
- Precise dimensions: 1/2 inch I.C., 3/16 inch width, and 0.203 inch corner radius
- Thru hole design enabling firm attachment and stability during operation
- Durable construction built to withstand continuous aluminum cutting
- Compatible with CCGX tooling systems for streamlined integration
Specifications
- Shape / Type: 80 Degree Diamond, Single-Sided
- Cut Type: Carbide Insert
- Insert Size (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Aluminum
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: CCGX 431 INSERT 12 04 04
Boost Your Machining Productivity with Burrs4Less CCGX Inserts
Investing in the CCGX 431 insert means long-term value that goes beyond just the sharpness of the cut. Its durable construction and high polish finish reduce the wear and tear on your tooling setup, translating to fewer interruptions and less time spent swapping out parts. This leads to steady operation shifts and consistent product quality, which benefits your entire workflow and bottom line.
As part of the Burrs4Less lineup, these inserts carry the trust and innovation of a brand known for metalworking excellence. Proudly made in the USA, the CCGX 431 blends cutting-edge features with reliability. Over time, this translates to cost savings and an overall smoother production schedule—helping your business stay ahead in demanding metalworking environments.
Case Study: Real Business, Real Results
Located in Charlotte, NC, Precision Aluminum Works switched to the CCGX 431 insert to enhance their finishing processes.
"Since upgrading to this insert, our surface finishes are consistently smoother, and chip control has drastically improved, cutting downtime."
Marcus Reynolds – Lead Machinist
They saw a 35% increase in throughput while keeping material waste to a minimum.
How the Molded Chip Breaker Boosts Your Efficiency
A molded chip breaker might sound like technical jargon, but it’s really just a smart little feature built right into the insert’s design. Think of it like grooves carved to snap and guide metal chips as they’re cut. This keeps chips from tangling up your work area or damaging the part.
Imagine trying to cut aluminum without any chip control – it’s like mowing a lawn and having the grass clippings pile up in your wheels. The molded chip breaker acts like a neat catcher, directing those chips away so your cutter runs smoothly and your finished piece stays clean.
Installation and Maintenance Guide
Setting It Up
- Ensure your tool holder is compatible with CCGX style screw-on inserts.
- Inspect the insert's thru-hole for any debris before mounting.
- Align the insert securely in the holder and tighten the screw firmly but avoid overtightening.
- Check orientation so the 80-degree diamond edge is facing the correct cutting direction.
- Confirm the chip breaker grooves are clear and properly positioned for your machining operation.
Keeping It Going
- Regularly clean inserts to remove aluminum buildup and preserve the polish finish.
- Inspect for wear, especially on the cutting edges and chip breaker features.
- Replace the insert promptly once performance drops to avoid machining defects.
- Store unused inserts in protective cases to keep their cutting surfaces pristine.
- Use proper coolant to reduce heat and extend insert lifespan during aluminum turning.
Frequently Asked Questions
Q: What materials is the CCGX 431 insert best suited for?
It’s specifically designed for aluminum machining to provide smooth finishing.
Q: Can I use this insert on other metals like steel?
While possible, it’s optimized for aluminum; other metals may reduce tool lifespan.
Q: What are the available cut types?
Standard cut and double cut options are available to suit different machining needs.
Q: How does the molded chip breaker help in machining?
It controls chip flow to prevent clogging and improve surface finish quality.
Q: Is the insert compatible with all screw-on holders?
It is designed for holders compatible with CCGX screw-on style inserts.
Q: What is the significance of the 80-degree diamond shape?
This shape allows precise turning with good edge strength on aluminum parts.
Q: How do I maintain the insert for optimal performance?
Clean regularly, check for wear, and replace before cutting quality declines.
Q: What is the corner radius for this insert?
The corner radius measures 0.203 inches, balancing strength and finish.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let inferior inserts slow down your aluminum projects. The CCGX 431 INSERT 12 04 04 is your ticket to cleaner cuts and better chip control. Add it to your toolbox today and experience smoother machining tomorrow!
