MILLING INSERTS

UNCOATED GRADE C520 (C-2) General purpose grade designed for cast iron and non-ferrous materials. Can also be used for machining 200 and 300 series stainless steel. Provides excellent wear resistance. C550 (C-5) Designed for heavy roughing to semi-finishing of all steels COATED GRADE CM02 (C-2) Multi Layer coating TiC/Al2O3/TiN. Good toughness, high strength in use and versatility for roughing, medium roughing of steel, alloy steel and cast-iron, especially for high speed and quick cutting. Aluminum oxide coating for machining 200 and 300 series stainless steel. CM-14 (C-5) Multi Layer coating TiN/TiC/TiCN/TiN for turning and milling carbon and alloy steels and tools steel. Provides longer tool life than uncoated grades. X-Treme (C-5) Layer coating TiAlN for turning and milling carbon alloy steels, steel and stainless steel. Provides longer tool life perfect for dry machining due to its good corrosion resistance, high hardness, high heat resistance (800 C-1475 F) and its self lubricating properties.

Items 1-12 of 37

Set Descending Direction
  1. INSERT APKT 1003 PDR-HM :
    #APKT 1003 PDR-HM
    INSERT APKT 1003 PDR-HM :
    APKT 1003 PDR-HM INSERT APKT 1003 PDR-HM : 0.264 I.C.: 0.441 WIDTH: 0.138 CORNER RADIUS: 0.020 THRU HOLE
    $4.52
  2. INSERT APKT 1505 PDR-HM :
    #APKT 1505 PDR-HM
    INSERT APKT 1505 PDR-HM :
    APKT 1505 PDR-HM INSERT APKT 1505 PDR-HM : 0.375 I.C.: 0.625 WIDTH: 0.188 CORNER RADIUS: 0.031 THRU HOLE
    $6.33
  3. INSERT APKT 1604 PDR-HM :
    #APKT 1604 PDR-HM
    INSERT APKT 1604 PDR-HM :
    APKT 1604 PDR-HM INSERT APKT 1604 PDR-HM : 0.376 I.C.: 0.625 WIDTH: 0.188 CORNER RADIUS: 0.032 THRU HOLE
    $6.33
  4. INSERT CTA-2 :
    #CTA-2-1
    INSERT CTA-2 :
    CTA-2-1 INSERT CTA-2 : 0.355 I.C.: 5/32 WIDTH: 1/64 CORNER RADIUS: *** THRU HOLE
    $3.79
  5. INSERT CTA-2 :
    #CTA-2-2
    INSERT CTA-2 :
    CTA-2-2 INSERT CTA-2 : 0.355 I.C.: 5/32 WIDTH: 1/32 CORNER RADIUS: *** THRU HOLE
    $3.79
  6. INSERT CTA-2 :
    #CTA-2-3
    INSERT CTA-2 :
    CTA-2-3 INSERT CTA-2 : 0.355 I.C.: 5/32 WIDTH: 3/32 CORNER RADIUS: *** THRU HOLE
    $3.79
  7. INSERT CTA-2 :
    #CTA-2-4
    INSERT CTA-2 :
    CTA-2-4 INSERT CTA-2 : 0.355 I.C.: 5/32 WIDTH: 1/8 CORNER RADIUS: *** THRU HOLE
    $3.79
  8. INSERT CTA-4 :
    #CTA-4-1
    INSERT CTA-4 :
    CTA-4-1 INSERT CTA-4 : 0.460 I.C.: 3/16 WIDTH: 1/32 CORNER RADIUS: *** THRU HOLE
    $5.91
  9. INSERT CTA-4 :
    #CTA-4-2
    INSERT CTA-4 :
    CTA-4-2 INSERT CTA-4 : 0.460 I.C.: 3/16 WIDTH: 3/32 CORNER RADIUS: *** THRU HOLE
    $5.91
  10. INSERT CTA-4 :
    #CTA-4-3
    INSERT CTA-4 :
    CTA-4-3 INSERT CTA-4 : 0.460 I.C.: 3/16 WIDTH: 1/8 CORNER RADIUS: *** THRU HOLE
    $5.91

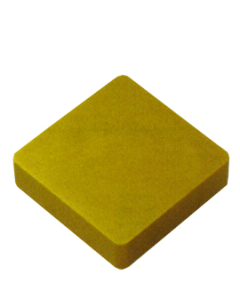

  11. INSERT CTA-6 :
    #CTA-6-1
    INSERT CTA-6 :
    CTA-6-1 INSERT CTA-6 : 0.685 I.C.: 3/16 WIDTH: 1/32 CORNER RADIUS: *** THRU HOLE
    $8.33
  12. INSERT CTA-6 :
    #CTA-6-2
    INSERT CTA-6 :
    CTA-6-2 INSERT CTA-6 : 0.685 I.C.: 3/16 WIDTH: 3/32 CORNER RADIUS: *** THRU HOLE
    $8.33
