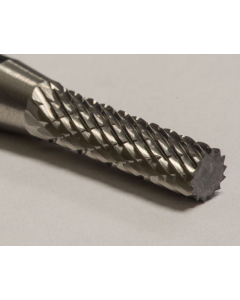

A Series Cylindrical Shape
Cylindrical Shape A Burr With No End Cut
Use tungsten carbide burrs on hard materials including steel, aluminum and cast iron, all types of stone, ceramic, porcelain, hard wood, acrylics, fibreglass and reinforced plastics. When used on soft metals such as gold, platinum and silver, carbide burrs are perfect as they will last for a long time with no breaking or chipping. Steel, Carbon Steel & Stainless Steel Cast Iron Aluminium Titanium Stone Gold, Platinum & Silver Ceramic & Porcelain Fibreglass Plastic, Carbon Fiber Reinforced Plastic (CRP), Glass Fibre Reinforced Plastic (GRP) Brass, Copper & Bronze Zinc Hard Wood Different cuts of carbide burrs will be best suited for certain materials.
Use carbide burrs in air tools such as die grinders, pneumatic rotary tools and high speed engravers. Micro Motors, Pendant Drills, Flexible Shafts, and hobby rotary tools such as a Dremel. Carbide burrs are widely used for metalworking, tool making, engineering, model engineering, wood carving, jewelry making, welding, chamferring, casting, deburring, grinding, cylinder head porting and sculpting. Carbide burrs are used in the aerospace, automotive, dentistry, stone and metalsmith industries.
Single cut (one flute) carbide burrs have a right handed (up cut) spiral flute. Single cut is used with stainless steel, hardened steel, copper, cast iron and ferrous metals and will remove material quickly with a smooth finish. Use for heavy stock removal, milling, deburring and cleaning. Heavy removal of material Milling Deburring Cleaning Creates long chips Use double cut carbide burrs on ferrous and non ferrous metals, aluminium, soft steel and also for all non-metal materials such as stone, plastics, hard wood and ceramic. This cut has more cutting edges and will remove material faster.
Double cut also called Diamond Cut or Cross Cut (2 flutes cut across each other) and will leave a smoother finish than single cut due to producing smaller chips as they cut away the material. Use double cut for medium-light stock removal, deburring, finishing and cleaning. Double cut carbide burrs are most popular and work for most applications. Medium- light removal of material Deburring Fine finishing Cleaning Smooth finish Creates small chips
- #001-03051SA-61
Head Diam 1/16 Length of Cut 1/4 Shank Diameter 3/32x1-1/2
Special Price $4.21 Regular Price $9.62 - #001-04071SA-62Head Diam 5/64 Length of Cut 5/16 Shank Diameter 3/32X1-1/2Special Price $12.58 Regular Price $19.16
- #001-05092SA-42 with Optional Lengths
Head Diam 3/32 : Length of Cut 7/16 : Shank Diameter 1/8X1-1/2
$8.42 As low as $3.90 - #001-08114SA-11
Head Diam 1/8 : Length of Cut 1/2 : Shank Diameter 1/4X2
Special Price $7.18 Regular Price $14.36 - #001-08122SA-43 with Extended Shank Options
Head Diam 1/8 : Length of Cut 9/16 : Shank Diameter 1/8X1-1/2
$8.42 As low as $3.90 - #001-10081SA-63Head Diam 3/32 Length of Cut 3/8 Shank Diameter 3/32X1-1/2Special Price $5.81 Regular Price $9.62
- #001-10112SA-52
Head Diam 5/32 Length of Cut 1/2 Shank Diameter 1/8X1-1/2
Special Price $12.81 Regular Price $20.21 - #001-10144SA-13Head Diam 5/32 : Length of Cut 5/8 : Shank Diameter 1/4X2Special Price $8.18 Regular Price $14.36
- #001-12112SA-53
Head Diam 3/16 Length of Cut 1/2 Shank Diameter 1/8X1-1/2
Special Price $10.11 Regular Price $20.21 - #001-12143SA-81Head Diam 3/16 Length of Cut 5/8 Shank Diameter 3/16X2Special Price $7.53 Regular Price $15.05
- #001-12144SA-14
Head Diam 3/16 : Length of Cut 5/8 : Shank Diameter 1/4 X 2
Special Price $7.18 Regular Price $14.36
