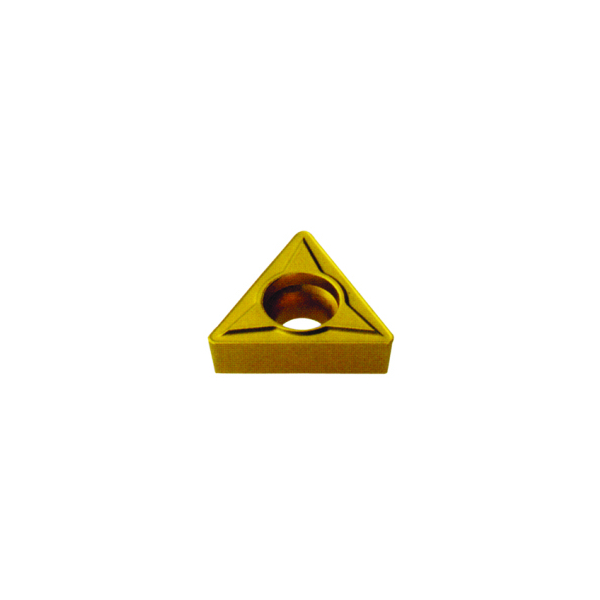

Triangle Screw-On Insert with Chipbreaker 3/8 I.C.
Product Overview
The TPGM 16 T3 04 is a screw-on type carbide insert designed with precision for semi-finishing and finishing tasks. It features a triangle shape with an integrated chipbreaker, optimized for smooth metalworking performance.
If you’re a machinist or metalworking professional seeking reliable inserts that maintain edge sharpness and reduce chip buildup, this insert fits right into your toolkit. Whether you’re working on small production runs or detailed finishing, it’s built for consistent results.
With its dual cut type options—standard cut and double cut—the TPGM 16 T3 04 offers versatility and efficiency, keeping your projects on track and hassle-free. Upgrade your tooling with this dependable insert that balances performance and durability.
Key Features
- Triangle-shaped insert for effective chip control and strength
- Chipbreaker design reduces heat and prevents chip clogging
- Screw-on mounting ensures secure and easy installation
- Available in Standard Cut and Double Cut for versatile applications
- Designed specifically for semi-finishing and finishing operations
- Compact 3/8 inch inscribed circle for tight tolerance machining
- Thin 5/32 inch width allows for fine machining without material waste
- Corner radius of 0.173 inches supports smooth corner transitions
- Thru hole design for stable and consistent mounting
- Durable carbide material withstands wear and heat
Specifications
- Shape / Type: Triangle with Chipbreaker
- Cut Type: Carbide Insert
- Head Diameter (Inscribed Circle): 3/8 inch
- Width: 5/32 inch
- Corner Radius: 0.173 inch
- Thru Hole: Yes
- Mounting: Screw On Type
- Material Compatibility: Cut Type for Metalworking
- Brand / Manufacturer: TPGM
- Made In: not Specified
- SKU / Part Number: TPGM 32.51
Precision and Reliability You Can Count On with TPGM Inserts
When choosing tooling inserts, consistency matters just as much as precision—and the TPGM 16 T3 04 excels on both fronts. Its durable carbide construction and secure screw-on design reduce the risk of inserts shifting or wearing unevenly during production, meaning fewer disruptions and better end-product quality. This translates to long-term savings since downtime and scrap rates come way down.
Besides dependable performance, TPGM is recognized for advancing insert design by integrating features such as chipbreakers that not only boost efficiency but also support more sustainable machining. By reducing heat and chip waste, your machines run cooler, preventing early tool failure and saving energy over the long haul. It’s a smart choice for shops aiming to combine quality with environmental responsibility on their shop floors.
Case Study: Real Business, Real Results
Based in Chicago, IL, Precision Toolworks upgraded their semi-finishing inserts to improve surface finish quality on aerospace components.
"Replacing our old inserts with the TPGM 16 T3 04 gave us much smoother finishes and reduced chip jamming during runs. It’s the kind of reliability that keeps our machines humming without interruptions."
Linda Thompson – Production Manager
Resulted in a 35% reduction in production downtime and improved finish quality consistency.
How the Chipbreaker Keeps Your Milling Smooth
The integrated chipbreaker on this TPGM insert works like a traffic controller for chips produced during cutting. Instead of long, stringy metal bits that can tangle up your setup, the chipbreaker breaks those chips into smaller, manageable pieces. Imagine trying to collect confetti after a party—small pieces are much easier to handle than one giant sheet. This design reduces heat buildup and prevents chips from clogging up your tool or workpiece, resulting in cleaner cuts and extended tool life.
Installation and Maintenance Guide
Setting It Up
- Ensure the screw-on insert seat is clean and free of debris
- Align the triangle insert carefully with the mounting hole
- Secure the insert using the manufacturer recommended torque for screws
- Verify the insert is seated flat to avoid chatter in machining
- Double-check the chipbreaker orientation matches your machining direction
Keeping It Going
- Regularly clean chips and debris away after each shift
- Inspect the insert edge for wear or damage before each use
- Replace inserts promptly to maintain finish quality
- Use proper coolant to reduce heat and extend insert life
- Store inserts in original packaging to protect cutting edges
Frequently Asked Questions
Q: What materials can this insert cut?
It is primarily designed for metalworking, especially steels and alloys during semi-finishing and finishing stages.
Q: Can I use both Standard Cut and Double Cut inserts interchangeably?
Yes, but double cut is better suited for tougher materials or when enhanced chip control is needed.
Q: Does the insert fit standard holders?
It requires holders compatible with screw-on triangle inserts. Confirm holder specs before purchasing.
Q: How do I know when to replace the insert?
Replace when you notice wear on cutting edges or a decline in finish quality.
Q: What is the significance of the corner radius?
A larger corner radius enhances surface finish and tool strength; smaller provides precision detail.
Q: Is coolant recommended when using this insert?
Yes, using coolant helps reduce heat and prolongs the insert life.
Q: What does the chipbreaker do?
It breaks chips into smaller pieces to prevent buildup and reduce heat.
Q: How tight should the mounting screw be?
Tighten screws to manufacturer’s recommended torque to prevent loosening without damaging inserts.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Boost your tooling setup with the TPGM 16 T3 04 today. Whether you're after better finishes or more efficient chip control, this insert is ready to perform right out of the box. Don’t miss the chance to upgrade your metalworking precision and reliability now!
