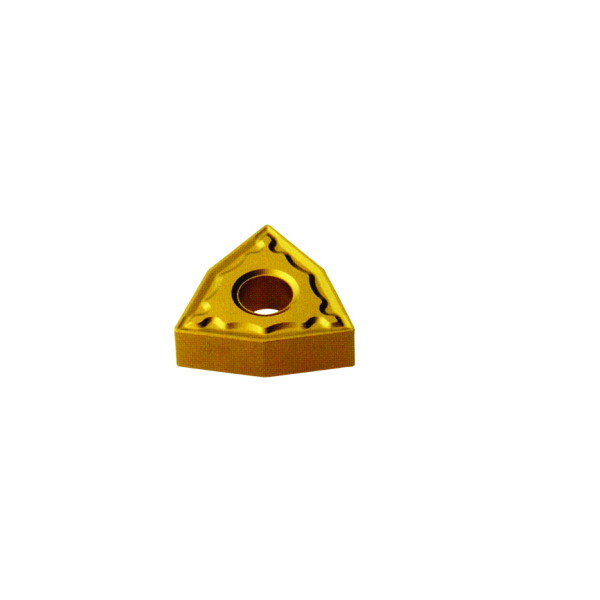

WNMG 08 04 04 Combo Pin Clamp Insert
Product Overview
Meet the WNMG 431 INSERT: WNMG 08 04 04, your go-to solution for versatile machining tasks. This insert excels in handling medium machining on stainless steel, steel, cast iron, and high-temperature alloys, making it a reliable choice for various metalworking challenges.
If you're a machinist or shop owner who values efficiency and precision, this all-purpose chipbreaker insert is tailored to fit your workflow. Its combo pin and clamp design ensures a secure fit and optimal chip control during operation.
With a 1/2 inch inscribed circle, 3/16 inch width, and a 0.203 inch corner radius, this insert is engineered to deliver consistent performance. Ready to upgrade your tooling setup? The WNMG 431 inserts bring durability and versatility right to your fingertips.
Key Features
- Combo pin and clamp insert design for enhanced stability
- All-purpose chipbreaker suitable for diverse materials
- Perfect for medium machining applications
- Compatible with stainless steel, steel, cast iron, and high-temp alloys
- 1/2 inch inscribed circle for precise fit
- 3/16 inch cutting width delivers controlled cuts
- 0.203 inch corner radius for balanced edge strength
- Thru hole structure ensures secure mounting
- Standard or double cut options available for different finish needs
- Robust construction for long-lasting use under heavy workloads
Specifications
- Shape / Type: WNMG
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Stainless Steel, Steel, Cast Iron, High Temperature Alloys
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: WNMG 431 INSERT: WNMG 08 04 04
Why WNMG Inserts Are Trusted in Metalworking Shops
WNMG inserts have earned a solid reputation among metalworking professionals because of their versatility and dependability. Their thoughtful design reduces downtime by requiring fewer insert changes and less frequent tool adjustments. This means your machines spend more time cutting and less time idling, boosting productivity across the board. Plus, the combo pin and clamp system ensures every insert stays secure during tough machining jobs, contributing to consistent, high-quality finishes that your customers will appreciate.
Thanks to advanced manufacturing methods and materials, these inserts offer longevity that goes beyond the first cut. Their construction supports a range of materials including high-temperature alloys, making them a go-to option for shops tackling complex projects. With Burrs4Less' commitment to quality and made-in-the-USA standards, you’re investing in tools that back your work day after day, helping you keep your shop competitive and efficient without sacrificing precision.
Case Study: Real Business, Real Results
Located in Houston, TX, Precision Metalworks upgraded their tooling to improve machining of stainless steel components.
"Switching to the WNMG 431 inserts significantly improved our chip control and surface finish on complex parts. The combination of durability and versatility made it a smart addition to our production line."
Emily Carter – Production Manager
Boosted machining efficiency by 30% and reduced tool change downtime.
Why the Combo Pin and Clamp Design Improves Stability
The combo pin and clamp system on the WNMG 431 insert is like the seatbelt and airbags of your machining setup—it keeps the insert firmly in place under pressure. Instead of relying on just one method to hold the insert, this combo ensures it won’t shift or loosen, even during aggressive cutting. That means smoother cuts, fewer interruptions, and a safer working environment. Think of it as giving your insert a strong handshake and a firm hug at the same time.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of debris before installation.
- Place the WNMG 431 insert carefully into the seat, aligning the pin and clamp.
- Secure the insert with the clamp screw, tightening firmly but without over-torquing.
- Check that the insert sits flush and stable before operating the machine.
- Verify the correct orientation for chipbreaker alignment.
Keeping It Going
- Regularly inspect inserts for wear or damage to maintain cutting precision.
- Clean chipbreaker area to prevent buildup and ensure proper chip flow.
- Replace inserts at the first sign of chipping or dull edges to protect your workpiece.
- Use appropriate coolant to minimize heat and tool wear during machining.
- Store unused inserts in a dry, secure location to avoid corrosion.
Frequently Asked Questions
Q: What materials are these WNMG inserts suitable for?
They are designed for medium machining of stainless steel, steel, cast iron, and high temperature alloys.
Q: What is the difference between standard cut and double cut?
Standard cut offers smoother finishes, while double cut provides better chip control for tougher materials.
Q: What does the corner radius affect in machining?
The corner radius impacts edge strength and the finish of the cut; larger radius offers durability, smaller radius improves detail.
Q: Does the combo pin and clamp design improve insert stability?
Yes, it secures the insert more firmly, reducing movement during cutting for better precision.
Q: Are these inserts compatible with all tool holders?
They fit holders that accept WNMG inserts with the specified 1/2 inch inscribed circle size.
Q: What does the corner radius of 0.203 inches signify?
It indicates the size of the rounded cutting edge, balancing sharpness and strength for general machining.
Q: Can I use these inserts for high-speed machining?
They are suitable for medium machining speeds; check your machine recommendations for maximum limits.
Q: What is the purpose of the thru hole in this insert?
The thru hole is part of the clamping mechanism, helping secure the insert firmly in place.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don't wait to experience the solid performance and versatility of the WNMG 431 inserts. Upgrade your machining setup today and see the difference precise tooling can make in your projects. Place your order now and get back cutting with confidence!
