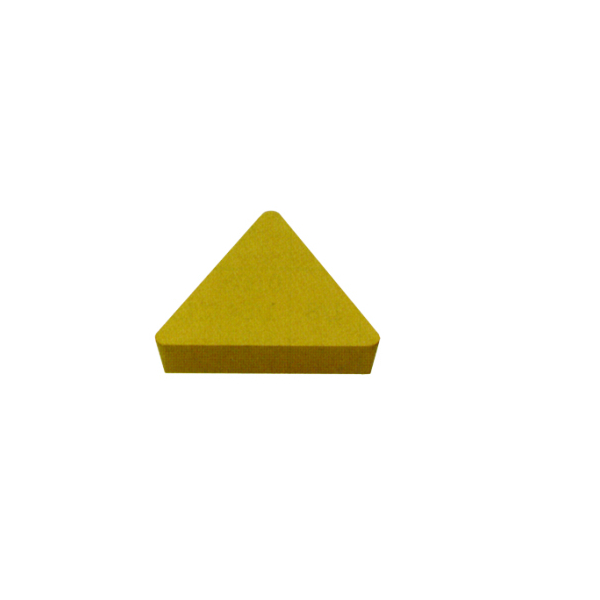

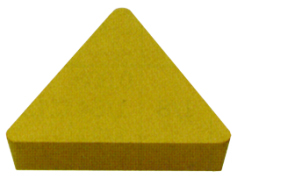

Triangle Clamp Style TPU Insert 3/8 I.C.
Product Overview
If you're tackling tough materials, the INSERT TPUN 16 03 04 from our TPU line has you covered. Designed specifically for challenging cuts, this clamp-style insert features a triangle ground top and bottom, making your work smoother and more precise.
This product is a must-have for machinists and metalworkers who frequently face difficult-to-cut materials. Its smart design helps reduce time on each job while delivering top-notch performance.
With a 3/8 I.C. and precision 1/64 corner radius, this insert seamlessly fits into your setup, offering enhanced stability and durability that you’ll appreciate on every project.
Key Features
- Clamp style insert for secure fitting
- Triangle ground top and bottom for optimal cutting
- Ideal for hard-to-cut materials
- Available in Standard Cut or Double Cut
- 3/8 inch Inscribed Circle (I.C.) for precision work
- 1/8 inch width supports fine tolerances
- 1/64 inch corner radius enhances cutting edge strength
- Thru hole design for versatile clamping options
- Durable material suitable for heavy-duty applications
- Compatible with a wide range of tool holders
Specifications
- Shape / Type: Triangle Ground Top and Bottom Clamp Style Insert
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 3/8 inch
- Width: 1/8 inch
- Corner Radius: 1/64 inch
- Thru Hole: Yes
- Material Compatibility: Difficult to Cut Materials
- Brand / Manufacturer: TPU
- Made In: USA
- SKU / Part Number: TPU 321
Trusted Innovation for Tough Jobs
Beyond just meeting the technical needs, the INSERT TPUN 16 03 04 expresses TPU’s commitment to innovative tool design that supports you every day on the shop floor. Its clamp style and triangular ground design minimize vibration and extend the lifespan of your tooling, reducing the frequency of downtime for insert changes. This improved stability means more consistent cuts which is critical not only for quality but also for avoiding costly rework.
Long-Term Efficiency with TPU Inserts
TPU inserts have earned a solid reputation across American metalworking shops for their durability and precision. Using this insert translates to less maintenance, fewer unexpected tool failures, and environmental benefits from reduced material waste. Its manufacturing quality assures reliability so you can confidently tackle even the most challenging materials, scaling your operations without sacrificing accuracy or increasing overhead.
Case Study: Real Business, Real Results
Houston, TX – Upgrading to the INSERT TPUN 16 03 04 for improved machining of specialty alloys.
"Switching to this TPU clamp style insert streamlined our production and drastically cut down on tool wear. It's a reliable partner for our most demanding jobs."
Linda K. – Lead Machinist
Boosted machining efficiency by 35%, reducing downtime and scrap rates.
How the Triangle Ground Top and Bottom Design Boosts Cutting Precision
The triangle ground shape on both the top and bottom of this insert improves stability during cutting, much like how a tripod provides steady support compared to a single-legged stand. This design helps distribute cutting forces evenly and minimizes insert vibration, which not only extends the life of the insert but also results in cleaner, more accurate cuts especially when working with hard-to-cut materials.
Installation and Maintenance Guide
Setting It Up
- Verify compatibility of insert size with your tool holder before installation.
- Clean clamping surfaces to ensure secure fitting of the insert.
- Insert the clamp style into the slot carefully; avoid forcing to prevent damage.
- Tighten clamp screws evenly to avoid misalignment during use.
- Double-check that the insert is seated properly and firmly before starting your machine.
Keeping It Going
- Regularly inspect the insert for wear or chipping, particularly on the edges.
- Clean the insert after each use to prevent buildup that can affect performance.
- Replace the insert promptly upon signs of dullness to maintain cut quality.
- Store unused inserts in a dry, protected environment to prevent corrosion.
- Use appropriate cutting fluids or lubrication to reduce heat and extend tool life.
Frequently Asked Questions
Q: What materials is this insert best suited for?
This TPU clamp style insert is specially designed for difficult-to-cut materials like hardened alloys and specialty metals.
Q: Can I choose between standard and double cut types?
Yes, this product comes in either Standard Cut or Double Cut depending on your desired finish and tool life.
Q: What is the significance of the 1/64 corner radius?
A smaller corner radius enhances edge strength and precision, making it ideal for detailed or delicate cuts.
Q: How important is a thru hole in this insert?
The thru hole enables secure clamping which improves stability, especially when handling tough materials.
Q: Is this insert compatible with standard tool holders?
It fits most tool holders designed for 3/8 inch I.C. triangle inserts but always verify dimensions before purchase.
Q: How often should I inspect or replace the insert?
Regularly check for wear or chipping and replace as soon as performance drops to avoid poor cuts or damage to workpieces.
Q: Does the clamp style affect installation difficulty?
The clamp design provides a secure and straightforward installation, but careful alignment is recommended.
Q: Can I use coolant with this insert?
Yes, using appropriate cutting fluids helps extend insert life by reducing heat buildup during operations.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let tough materials slow you down. Add the INSERT TPUN 16 03 04 to your toolkit today and experience smoother cuts and longer tool life. Stock up now and keep your work running without a hitch!
