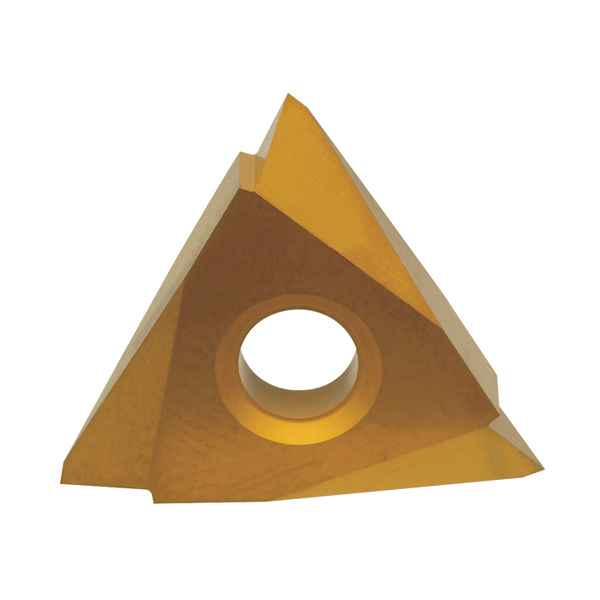

TPMC 10° Positive Rake Threading Insert
Product Overview
Looking for a reliable threading insert that keeps your operations smooth? The TPMC-54NV is designed specifically for metalworkers and machinists who need precision and durability in one package.
This threading insert features a 10-degree positive rake and a thru-hole design, making it an excellent option for internal threading tasks. Whether you’re working on delicate parts or heavy-duty components, this insert’s versatility fits right into your toolkit.
Key specs like the 5/8 inch inscribed circle and various width options mean you can customize your threading approach for the job at hand. Ready to take your threading to the next level? This TPMC insert might be just what you need.
Key Features
- 10° positive rake angle for optimal cutting performance
- Thru-hole design allows easy mounting and secure fit
- Suitable for internal threading operations
- Available in standard cut or double cut options
- 5/8 inch inscribed circle for precise fit
- Width options ranging from 4 to 20 for versatile applications
- External threading capabilities between sizes 4 and 12
- Durable construction designed to handle tough materials
- Compatible with a wide range of metals
- Made to exacting quality standards for consistent results
Specifications
- Shape / Type: TPMC
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 5/8 inch
- Width: 4-20
- Threading Size - External: 4-12
- Special Feature: 10° Positive Rake with Thru Hole
- Material Compatibility: Metalworking (varied metals)
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TPMC-54NV
Long-Term Reliability You Can Count On
Choosing the TPMC-54NV insert means opting for a product built with the everyday demands of metalworking shops in mind. Over time, its robust build and positive rake angle reduce the frequency of tool replacements and machine downtime. This means smoother workflows and less money spent on interruptive repairs or reworks. Its precision design ensures every thread meets specification, helping your business maintain quality standards effortlessly.
The trusted Burrs4Less brand backs this insert with decades of industry experience, making it a go-to for shops looking for reliability and innovation. Beyond just threading capabilities, the insert helps maintain environmental efficiency by reducing scrap and extending tool life. It’s a smart investment for any metalworking operation aiming to boost productivity while lowering operational costs.
Case Study: Real Business, Real Results
Chicago, IL - Upgrading threading tools to improve production speed
"Switching to the TPMC-54NV insert drastically improved our threading consistency and reduced tool change times. The precision cuts mean less rework and a smoother workflow overall."
Emily Sanchez – Production Manager
Increased threading output by 35% while reducing scrap rates.
Why the 10° Positive Rake Angle Makes a Difference
The 10-degree positive rake angle on this insert is like having a chef's sharp knife ready for slicing perfect thin cuts every time. It helps reduce cutting forces, meaning the tool slices cleanly through metal with less effort and heat buildup. This leads to cleaner threads, a longer tool lifespan, and fewer headaches on the production floor. Think of it as the difference between trying to cut a ripe tomato with a dull butter knife versus a sharp paring knife – precision and ease are everything.
Installation and Maintenance Guide
Setting It Up
- Align the TPMC-54NV insert properly with the tool holder's thru hole.
- Ensure the 10° positive rake angle is oriented correctly for internal threading.
- Secure the insert firmly without overtightening to prevent damage.
- Verify that the insert size matches the threading task specifications.
- Test the setup on scrap material before starting actual production.
Keeping It Going
- Regularly clean the insert to remove metal shavings and debris.
- Inspect the cutting edges for wear or chipping before each use.
- Replace the insert promptly if performance drops or damage occurs.
- Store inserts in a dry, clean area to prevent corrosion.
- Use appropriate coolant or lubrication during threading to extend tool life.
Frequently Asked Questions
Q: Can the TPMC-54NV be used for external threading?
Yes, this insert supports external threading sizes between 4 and 12.
Q: What materials is this insert compatible with?
It’s designed for metalworking and performs well on a variety of metals commonly used in machining.
Q: What is the purpose of the thru hole in this insert?
The thru hole allows for secure mounting and proper alignment in the tool holder.
Q: What is the difference between standard cut and double cut?
Standard cut is used for general threading while double cut provides a finer finish and smoother chip evacuation.
Q: How important is the 10° positive rake angle?
It reduces cutting forces, leading to cleaner cuts and longer tool life.
Q: Is this insert suitable for high-volume production?
Yes, it’s built for durability and consistent performance in production environments.
Q: What is the inscribed circle size?
The inscribed circle (I.C.) size is 5/8 inch, suitable for precise threading fits.
Q: Can I reuse the insert if edges are worn?
It’s best to replace inserts when cutting edges show wear to maintain threading quality.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to upgrade your threading performance. The TPMC-54NV insert is ready to deliver precision and durability to your next project. Order now and experience smoother cuts and better production efficiency.
