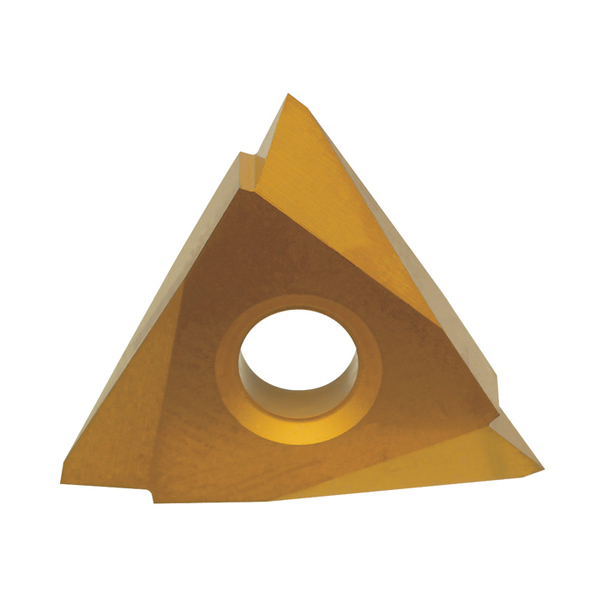

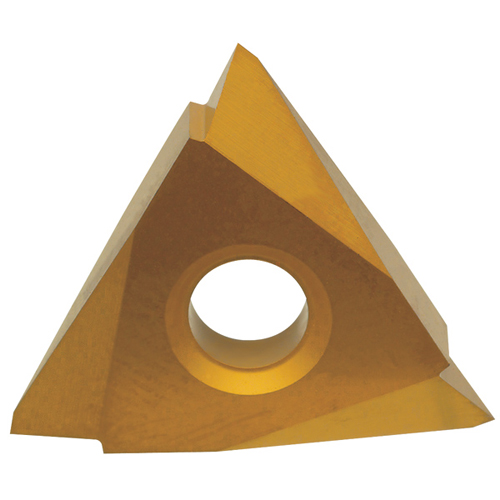

TPMC 10 Degree Positive Rake Threading Insert
Product Overview
If you're in the market for a specialized threading insert, the TPMC-43NV is designed to fit the bill perfectly. This insert comes with a 10-degree positive rake, making it superb for internal threading tasks that require precision and efficiency.
Perfect for machinists and metalworking professionals who demand accuracy, this insert caters especially to those working on internal threads with external diameters ranging from 6 to 12 mm. The double cut style option gives you added versatility depending on the threading finish you want.
Featuring a thru-hole design and boasting a reliable 1/2-inch inscribed circle with varying widths from 6 to 20, the TPMC-43NV blends functionality and durability to keep your threading jobs running smoothly and consistently. It's a solid choice whether you're upgrading or adding to your current tool inventory.
Key Features
- 10-degree positive rake angle for smooth internal threading
- Thru-hole design for secure mounting and easy replacement
- Standard cut or double cut options for different threading finishes
- 1/2-inch inscribed circle size for versatile threading applications
- Suitable for internal threading on external diameters between 6 mm and 12 mm
- Width range from 6 to 20 for adaptable thread depths
- Compatible with a variety of threading machines and holders
- Durable carbide construction ensuring longevity and wear resistance
- Optimized design helps reduce cutting forces and improve surface finish
- Reliable performance in both low and high-speed machining environments
Specifications
- Shape / Type: TPMC with thru hole
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 6 - 20 mm
- External Diameter Range: 6 - 12 mm
- Rake Angle: 10 degrees positive
- Use: Internal Threading
- SKU / Part Number: TPMC-43NV
- Brand / Manufacturer: Burrs4Less
- Made In: USA
Precision and Performance You Can Trust with TPMC Inserts
Beyond the technical specifications, TPMC inserts like the TPMC-43NV are crafted to deliver exceptional long-term value in any machining environment. Their durable carbide construction and thoughtful design keep machine downtime low and threading consistent, reducing costly rework and maintenance cycles. This means your shop can rely on producing accurate internal threads run after run, making it an invaluable asset for quality-focused operations.
At Burrs4Less, our commitment to quality and reliability shines through every insert we supply. Our TPMC line is recognized throughout the industry for its innovative design and high standards, helping metalworkers across the USA maintain a competitive edge. Aside from technical prowess, their efficient material use and energy-friendly manufacturing processes align with modern sustainability goals, aiding businesses that value operational excellence and environmental responsibility alike.
Case Study: Real Business, Real Results
Chicago, Illinois – A local precision machining shop needed an upgrade for their internal threading operations to boost output quality.
"Switching to the TPMC-43NV inserts improved our thread accuracy and reduced setup time significantly. These inserts stand up to our toughest jobs without dulling quickly."
Michael T. – Lead Machinist
Increased threading accuracy by 30% and reduced tool change downtime by 25%
Why the 10-Degree Positive Rake Angle Makes a Difference
The 10-degree positive rake is like the optimal tilt on a pizza cutter blade, letting it slice through dough smoothly instead of tearing it apart. Similarly, this rake angle allows the insert to cut through metal cleanly and with less resistance. This leads to less wear on the tool, smoother threads, and less effort on your machine—a practical benefit that keeps your project moving fast and yields top-notch results.
Installation and Maintenance Guide
Setting It Up
- Ensure the threading holder matches the TPMC-43NV insert dimensions before installation.
- Secure the insert properly through the thru-hole to prevent shifting during operation.
- Check the positive rake angle orientation aligns with your threading direction.
- Verify the external diameter compatibility (6-12 mm) for the workpiece before you begin.
- Use proper torque settings to avoid damage or loosening during machining.
Keeping It Going
- Regularly inspect the insert edges for wear or chipping.
- Clean chips and debris from the insert and holder after each use.
- Sharpen or replace the insert as soon as thread finish quality starts to decline.
- Store inserts in a dry, organized workspace to prevent corrosion or loss.
- Use recommended cutting fluids to reduce heat buildup and prolong tool life.
Frequently Asked Questions
Q: Can the TPMC-43NV be used for external threading?
This insert is specially designed for internal threading, optimized for external diameters ranging from 6 to 12 mm.
Q: What metals are compatible with this insert?
It works best with a variety of metals commonly used in internal threading, such as steel and stainless steel, thanks to its durable carbide material.
Q: How do I know if I should use standard cut or double cut?
Standard cut is good for general threading; double cut is best for smoother finishes and harder materials.
Q: What does the 10-degree positive rake angle do?
It helps the insert cut metal more efficiently, reducing wear and producing cleaner threads.
Q: Is the insert compatible with all threading tool holders?
Make sure the holder supports TPMC style inserts with a 1/2 inch inscribed circle and thru-hole mounting.
Q: What sizes of thread width does this insert support?
The insert supports thread widths between 6 and 20 mm, making it versatile for various thread depths.
Q: How do you maintain the insert?
Regular inspection, cleaning, and timely sharpening or replacement will keep it performing well.
Q: What’s the benefit of the thru-hole design?
It helps secure the insert firmly to prevent movement during threading operations, keeping threads accurate.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let threading challenges slow you down — the TPMC-43NV insert is your go-to for precision and durability in internal threading. Ready to upgrade your toolkit? Order now and experience smooth threading like never before!
