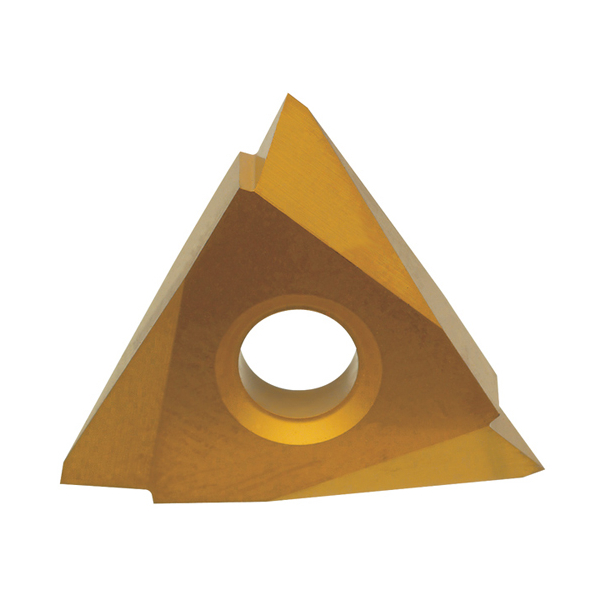

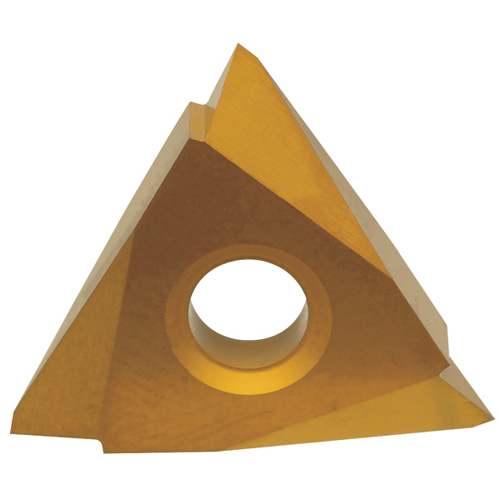

TPMA 10° Positive Rake Insert for Internal Threading
Product Overview
If you're focused on internal threading work, the INSERT TPMA-54NV is designed just for professionals like you. Its precise 10-degree positive rake and straight thru-hole make it a specialist in its category.
This insert fits perfectly for internal threading on sizes ranging from 4 to 12, with a 5/8 inch internal corner and 1/4 inch width—ideal for those detailed, tight spots where accuracy matters.
Whether you're a machinist working with complicated metals or a metalwork hobbyist sharpening your skills, the TPMA-54NV promises consistent performance and durability. Give your internal threading tasks a reliable edge with this expertly crafted insert.
Key Features
- 10-degree positive rake angle for sharper, cleaner cuts.
- Straight thru-hole design ensures secure mounting and stability.
- Specialized for internal threading tasks from 4 to 12 mm diameter.
- 5/8 inch internal corner offers precise threading control.
- 1/4 inch width suitable for a variety of threading depths.
- Standard or double cut options to match different material needs.
- Compatible with TPMA style holders for easy integration.
- Durable design built for long-lasting use in metalworking.
- Reduces chatter and vibration, improving surface finish quality.
- Made to maintain thread integrity and accuracy over multiple uses.
Specifications
- Shape / Type: TPMA
- Cut Type: Carbide Insert
- Internal Corner (I.C.): 5/8 inch
- Width: 1/4 inch
- Internal Thread Size Compatibility: 4-12 mm
- External Thread Size Compatibility: 4-20 mm
- Positive Rake: 10 degrees
- Hole Type: Straight Thru Hole
- Ideal Use: Internal Threading
- SKU / Part Number: TPMA-54NV
Maximizing Your Business Efficiency with TPMA Inserts
Choosing the right threading insert is more than a technical detail—it's a strategic business decision. The TPMA-54NV is engineered to reduce downtime by offering consistent, reliable threading performance. Its durability means fewer changes and less waste, translating to long-term savings in both time and material costs. Precision threading reduces the risk of faulty parts, ensuring fewer rejects and greater customer satisfaction, which strengthens your reputation in a competitive market.
The brand behind the TPMA series has a solid legacy in threading tool innovation, trusted by machining professionals across the USA. Built for demanding shop floors, these inserts maintain high performance even under heavy use. Additionally, their design focuses on efficient chip evacuation and cutting dynamics that minimize energy consumption and tool wear, supporting environmentally conscious manufacturing practices without sacrificing productivity.
Case Study: Real Business, Real Results
Denver, Colorado - A local machine shop upgraded their threading tools.
"Switching to the TPMA-54NV insert significantly improved our threading precision. The tool's rigidity and sharp rake angle allowed us to handle complex internal threads effortlessly, cutting down our rework time dramatically."
Mark Stevens – Production Manager
Boosted threading accuracy by 35%, reduced downtime, and improved client satisfaction.
Why the 10-Degree Positive Rake Makes a Difference
The 10-degree positive rake of the TPMA-54NV insert is all about cutting efficiency. Imagine slicing through butter with a sharp knife versus a dull one—that's the kind of difference this angle makes for metal. It means the cutting edge bites in smoothly, reducing pressure and heat, which helps you get cleaner threads and longer tool life. This design minimizes resistance during threading, making your work faster and less tiring.
Installation and Maintenance Guide
Setting It Up
- Ensure your TPMA holder matches the insert size and style.
- Clean the mounting surface before inserting the TPMA-54NV.
- Insert the TPMA-54NV firmly, aligning the straight thru-hole properly.
- Secure the insert with the correct torque to prevent movement during threading.
- Double-check the tool alignment in your machine for optimal thread quality.
Keeping It Going
- Regularly inspect the insert for signs of wear or chipping.
- Clean the insert and holder after each use to prevent buildup.
- Use cutting fluid to reduce heat and extend insert life.
- Replace the insert immediately if threading quality decreases or damage appears.
- Store inserts in a dry, organized place to avoid damage when not in use.
Frequently Asked Questions
Q: What thread sizes can the TPMA-54NV handle?
The insert is compatible with internal threads ranging from 4 to 12 mm diameter.
Q: Does the insert support both standard and double cuts?
Yes, it is available in both standard cut and double cut options for different material hardness.
Q: What is the significance of the 10-degree positive rake?
This angle helps reduce cutting forces and produces smoother, cleaner threads.
Q: Is the insert suitable for external threading?
The TPMA-54NV is specifically designed for internal threading tasks.
Q: What does the straight thru-hole design do?
It ensures stable mounting and minimizes insert movement during operation.
Q: Can I use this insert with my existing TPMA toolholder?
Yes, the insert is made to fit TPMA style holders perfectly.
Q: What materials can I thread with this insert?
It works best on a variety of metals commonly used in internal threading, including steel and stainless steel.
Q: How do I know when to replace the insert?
Signs include decreased thread quality, visible wear, or chipping on the cutting edge.
Q: What is the internal corner radius?
The insert has a 5/8 inch internal corner, ideal for fine threading control.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don't let threading challenges slow you down. The INSERT TPMA-54NV is stocked and ready to ship, helping you get back to work with confidence and precision. Add it to your tool arsenal today and see the difference professional-grade inserts make!
