TPMA 10° Positive Rake Threading Insert
Product Overview

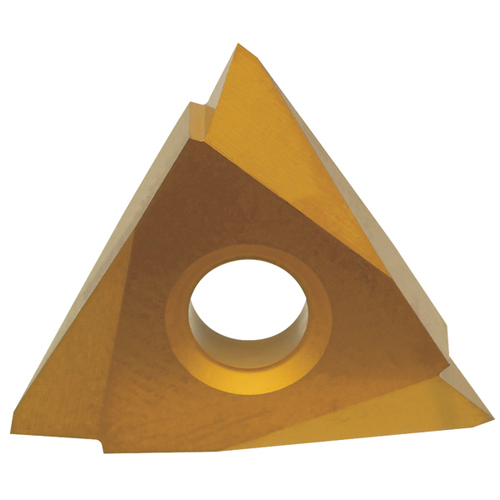

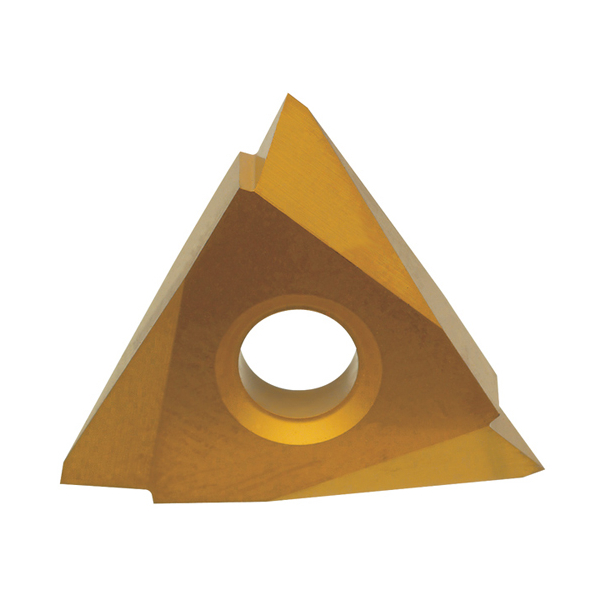

Meet the INSERT TPMA-43NV, a precision-crafted carbide insert designed for both internal and external threading needs. It’s perfect for metalworking pros who demand accuracy and efficiency in their threading operations.
Designed with a 10-degree positive rake and a straight thru hole, this insert works flawlessly with internal threads, offering smooth cutting action and long-lasting performance. Whether you're threading a small-diameter pipe or working on a complex assembly, this tool handles tasks with ease.
If you’re looking for a reliable insert that balances precision and durability, the TPMA-43NV is a standout choice to keep your shop running smoothly.
Key Features
- 10-degree positive rake angle for efficient chip flow and smooth cutting
- Straight thru hole design for secure mounting and stability
- Multi-compatible with internal and external threading applications
- Standard cut or double cut options for versatile metalworking
- 1/2 inch inscribed circle with 3/16 inch width suited for 6-20 thread pitch
- Optimized for external sizes ranging between 6-12 for maximum versatility
- Durable carbide material designed for extended wear life
- Helps reduce chatter and vibration during threading operations
- Compatible with a wide range of threading machines and tools
- Precision ground for consistent thread form and quality
Specifications
- Shape / Type: TPMA Style Insert
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 3/16 inch
- Thread Pitch Compatibility: 6-20
- External Diameter Range: 6-12
- Internal Threading: Yes, ideal
- Rake Angle: 10° Positive
- Hole Type: Straight thru hole
- Material Compatibility: Carbide insert for threading metals
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TPMA-43NV
Trusted Quality that Drives Long-Term Success
The INSERT TPMA-43NV isn’t just about specs – it’s about consistent performance that your shop can bank on. By minimizing downtime through durable construction and effective chip clearance, this insert helps maintain steady production schedules. Over time, that means fewer interruptions and reduced tool replacement costs, giving your business a tangible competitive edge. Our USA-based manufacturing ensures tight quality controls so you get a reliable product every time, supporting your business's reputation for excellence.
Innovation Meets Practicality in Every Cut
With decades of industry experience culminating in this insert’s design, Burrs4Less blends innovation with real-world usability. The positive rake and versatile sizing reflect a deep understanding of threading challenges—delivering a product that’s both easy to fit and flexible across a range of applications. Our continual commitment to energy-efficient manufacturing practices ensures that, beyond helping your shop work smarter, we're also mindful of environmental responsibilities, making this insert a smart choice for future-focused businesses.
Case Study: Real Business, Real Results
Chicago-based precision machining shop sought higher efficiency in internal threading for stainless steel parts.
"Switching to the TPMA-43NV insert improved our thread quality immensely while reducing tool change times. The durability is amazing, saving us both material costs and downtime."
Michael J. – Shop Manager
Achieved a 35% increase in throughput and doubled tool life compared to previous inserts.
Why the 10-Degree Positive Rake Makes a Difference
Think of the 10-degree positive rake as the insert’s way of giving a smooth, gentle push as it cuts through metal. This angle allows chips to flow away more easily, preventing buildup and making threading faster and cleaner. Imagine slicing a loaf of bread with a slightly angled blade—each cut is smooth, reducing strain and effort. This results in less heat, less wear, and a sharper finish on your threads.
Installation and Maintenance Guide
Setting It Up
- Make sure the tool holder is clean and free of debris before installation.
- Align the insert’s straight thru hole with the holder’s fastening screw.
- Tighten the insert securely without over-torquing to avoid damage.
- Verify the correct rake angle orientation for optimal cutting.
- Check that the insert projects the proper amount per threading specifications.
Keeping It Going
- Regularly inspect the insert edge for wear or chipping and replace when necessary.
- Keep the machining area clean to avoid contamination and reduce tool wear.
- Use manufacturer-recommended speeds and feeds for your material.
- Store inserts in a dry, safe place to maintain cutting edge quality.
- Periodically check holder and screw for signs of loosening or damage.
Frequently Asked Questions
Q: What materials are compatible with the TPMA-43NV insert?
This insert is designed primarily for carbide threading in metals like steel, stainless steel, and cast iron.
Q: Can the TPMA-43NV insert be used for both internal and external threads?
Yes, it is ideal for internal threading but also works well on certain external threading applications within specified size ranges.
Q: What does the 10-degree positive rake angle mean for my threading?
It helps improve chip flow and cutting efficiency, resulting in smoother threads and less tool wear.
Q: How do I know if I need standard cut or double cut inserts?
Standard cut is suited to general threading, while double cut provides finer finishes and better surface quality.
Q: What thread pitch ranges does this insert support?
The insert supports pitches between 6 and 20 threads per inch.
Q: How do I secure the insert properly in my tool holder?
Align the insert with the holder’s hole, tighten securely but do not over-tighten to avoid breakage.
Q: What is the inscribed circle size of this insert?
The inscribed circle (I.C.) measurement is 1/2 inch.
Q: Can this insert be used for threading soft metals?
Yes, but ensure feed and speed settings match the softer material to avoid premature wear.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let subpar inserts hold back your threading projects. The INSERT TPMA-43NV delivers precision and reliability you can count on. Stock up today and keep your production line humming with top-quality performance.
