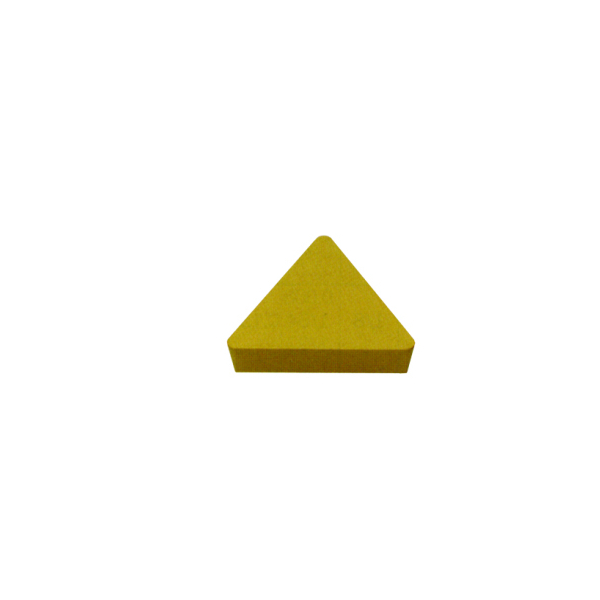

TPGN 22 04 32 Screw-On Style Insert
Product Overview
The TPG 438 INSERT TPGN 22 04 32 is a precision-engineered cutting insert designed to meet the demands of metalworking professionals. Crafted for durability and performance, this screw-on style insert is particularly suited for materials that produce short chips, making your machining tasks smoother and more efficient.
Ideal for machinists and metalworking shops focusing on production efficiency and clean cuts, its versatile cut type options cater to various applications. Whether you're refining surfaces or preparing components, this insert delivers consistent results every time.
With its robust design, including a 1/2 inch inscribed circle and a 3/16 inch width, this insert stands out as a reliable choice for precision and longevity. Ready to enhance your cutting process? This insert might just be the upgrade your workshop needs.
Key Features
- Standard cut or double cut options for flexible application
- Screw-on style insert for easy installation and replacement
- Designed specifically for materials that create short chips
- 1/2 inch inscribed circle for compatibility with various tools
- 3/16 inch cutting width ensuring precision
- 1/8 inch corner radius for clean edge finishes
- Thru hole design for secure mounting
- Durable construction to withstand rigorous machining tasks
- Minimizes downtime with quick insert changes
- Optimized geometry to improve chip control and surface finish
Specifications
- Shape / Type: TPG Screw-On Style Insert
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 1/8 inch
- Thru Hole: Yes
- Material Compatibility: Materials that produce short chips
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TPG 438
Trusted Durability and Performance in Every Insert
The TPG 438 insert reflects a commitment to long-term performance crucial to your machining success. Its sturdy construction minimizes frequent replacements, reducing downtime and operational costs over time. This reliability means less worry about tool wear interrupting your workflow, maintaining steady output with consistent cut quality—an important factor for businesses aiming for efficiency and precision in every job.
Backed by Burrs4Less’ strong reputation in cutting tools, this insert embodies the brand's tradition of innovation and quality. Manufactured in the USA, it meets strict standards for durability and performance. Users benefit from tools that deliver in real-world conditions, including the challenging environments of continuous metal cutting, ensuring durability and control while respecting environmental concerns through longer-lasting components that help reduce waste.
Case Study: Real Business, Real Results
Atlanta, Georgia – Upgraded tooling for improved chip management
"Switching to the TPG 438 inserts has greatly reduced chip clogging and improved surface finishes on our aluminum components. The ease of replacement saves us valuable time on the shop floor."
Monica Reynolds – Production Manager
Increased machining efficiency by 35%, resulting in faster turnaround times.
How the Screw-On Style Design Simplifies Your Workflow
The screw-on style of the TPG 438 insert isn’t just about holding tight—it makes changing inserts a breeze. Imagine swapping out a light bulb; the insert unscrews quickly and clicks into place without hassle, minimizing downtime. This design ensures the insert stays firmly attached during high-speed cutting, so you get consistent precision without worrying about slippage or misalignment.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of debris before installing the insert.
- Align the insert properly with the screw hole on the tool holder.
- Use the appropriate screwdriver or torque wrench to secure the screw firmly, but avoid over-tightening.
- Check the corner radius matches your cutting needs before installation.
- Test tool alignment with a trial cut to confirm stable positioning.
Keeping It Going
- Regularly inspect the insert for wear or chipping before operation.
- Replace inserts promptly when cutting performance declines to maintain quality.
- Use proper coolant or lubrication as recommended for the work material.
- Keep screws clean and periodically check for tightness to avoid loosening.
- Store spare inserts in a dry, organized space to avoid damage or loss.
Frequently Asked Questions
Q: What materials are these inserts best suited for?
They work great on materials that produce short chips, such as certain aluminum alloys and stainless steels.
Q: Can I use both standard and double cut inserts interchangeably?
Yes, but choose based on your surface finish requirements; double cut inserts offer smoother finishes.
Q: How do I know if this insert fits my tool holder?
Check that your holder matches the 1/2 inch inscribed circle and screw-on style design.
Q: What is the purpose of the corner radius on this insert?
The 1/8 inch radius helps balance edge strength with cutting sharpness for cleaner edges.
Q: Is the thru hole important for installation?
Yes, it secures the insert firmly to the holder, preventing movement during cutting.
Q: How often should I replace the inserts?
Replace whenever you notice decreased cutting performance or visible wear.
Q: Are these inserts compatible with coolant use?
Yes, using coolant can extend insert life and improve cut quality.
Q: Can these inserts handle high-speed machining?
They are designed for a range of speeds typical of short-chip materials but always check your machine specifications.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
If you're ready to boost your machining efficiency and enjoy smooth cutting performance, the TPG 438 INSERT TPGN 22 04 32 is just a click away. Don’t miss out on upgrading your tool setup with this reliable, straightforward insert designed for precision and ease.
