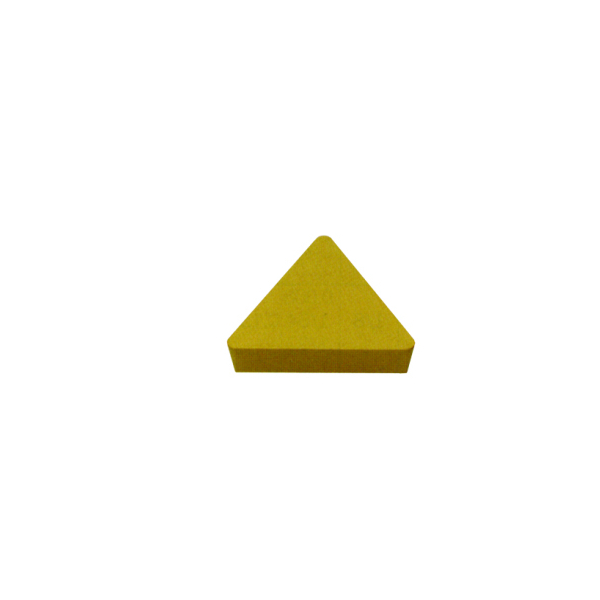

TPGN 22 04 24 Screw-On Insert 1/2 I.C. 3/16 Width
Product Overview
If you’re seeking reliable inserts for your machining projects, the INSERT TPGN 22 04 24 is a fantastic choice. Designed for the TPG 436 tool line, these screw-on style inserts bring precision and ease to your workflow.
Perfect for machinists and metalworkers working with materials that produce short chips, this insert handles the job smoothly while minimizing downtime. Its robust design ensures consistent performance across various applications.
Featuring a 1/2 I.C. and 3/16 width with a 3/32 corner radius, this insert fits snugly on your tool holder, delivering sharp cuts without fuss. Ready to upgrade your tooling with a component that balances durability and efficiency?
Key Features
- Screw-on style design for quick and secure installation
- Standard or double cut options tailored to your machining needs
- Ideal for materials that produce short chips, improving chip control
- 1/2 inch inscribed circle (I.C.) for precise fitment
- 3/16 inch wide insert for sturdy cutting edge
- 3/32 inch corner radius for clean and smooth finishes
- Durable carbide composition resists wear and delivers longer tool life
- Thru-hole design ensures strong attachment to tool holder
- Compatible with various machining operations - versatile and dependable
- Manufactured to meet high-quality industry standards
Specifications
- Shape / Type: TPG Screw-On Style Insert
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 3/32 inch
- Thru Hole: Yes
- Material Compatibility: Materials producing short chips
- Brand / Manufacturer: Burrs4Less / TPG
- Made In: USA
- SKU / Part Number: TPG 436
Reliable Performance You Can Count On Every Day
Beyond the numbers, these TPGN inserts bring a level of dependability that’s indispensable in busy machine shops. Long-term, their robust build means fewer tool changes, less downtime, and more consistent quality on every job. By cutting down maintenance hassles and unexpected replacements, shops can boost productivity and keep projects on schedule—saving time and money where it truly counts.
Burrs4Less Quality: Innovation Rooted in Experience
The TPG line reflects Burrs4Less’ ongoing commitment to innovation with practical design features like screw-on mounting and specialized chip control cuts. With a strong reputation backed by industry trust, these inserts deliver not just technical value but peace of mind. Plus, their USA manufacture supports local industry and ensures strict quality controls, helping you maintain high standards in your operations day after day.
Case Study: Real Business, Real Results
Based in Cincinnati, Ohio, Precision Machining Inc. upgraded to the TPGN 22 04 24 inserts to enhance their milling of short-chip materials.
“Switching to these screw-on inserts has streamlined our setup times and improved the surface finish quality dramatically.”
Alexandra Moore – Production Manager
Achieved a 35% increase in machining efficiency and significantly reduced tool replacement frequency.
Why the Screw-On Style Insert Makes Your Tooling Easier
The screw-on style of this TPGN insert means you can swap out worn inserts quickly and securely without complicated tools. Think of it like changing a bike tire: the screw keeps the insert firmly in place, but when it’s time to replace, it’s a simple twist rather than a full teardown. This design reduces downtime and keeps you cutting without hassle—ideal when you’re handling materials that demand quick chip control and consistent precision.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is compatible with TPG style screw-on inserts.
- Clean the mounting surface to remove any debris or residue.
- Position the insert correctly aligning the thru-hole with the screw.
- Tighten the screw firmly but avoid over-tightening to prevent damage.
- Verify insert is seated flat and secure before operation.
Keeping It Going
- Regularly inspect the insert cutting edge for wear or chipping.
- Replace inserts promptly when cutting performance declines.
- Clean inserts and holders to prevent chip buildup.
- Store spare inserts in a clean, dry environment to prevent corrosion.
- Use recommended speeds and feeds for materials to extend tool life.
Frequently Asked Questions
Q: What materials are these TPG inserts best for?
They perform best on materials that produce short chips during cutting, ensuring efficient chip management.
Q: Can I install these inserts on any tool holder?
They require compatible holders designed for TPG style screw-on inserts to ensure proper fit and function.
Q: What's the difference between standard cut and double cut?
Standard cut offers aggressive material removal; double cut provides smoother finishes with finer chip control.
Q: How do I know if the insert size fits my tool?
Check that your tool holder accepts an insert with a 1/2 inch inscribed circle and 3/16 inch width.
Q: Is the corner radius important?
Yes, a 3/32 inch radius balances sharpness for detailed cuts with durability for lasting performance.
Q: How often should I replace the insert?
Replace inserts when you notice reduced cutting performance or visible wear on the edges.
Q: Are these inserts made in the USA?
Yes, Burrs4Less proudly supplies USA-made TPG inserts for quality assurance.
Q: What does the thru hole feature do?
The thru hole allows the insert to be securely fastened onto the tool holder with a screw for stability.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to experience smoother machining and faster setups—grab your INSERT TPGN 22 04 24 today. Stock up now and keep your operations running at peak performance with tooling you can trust.
