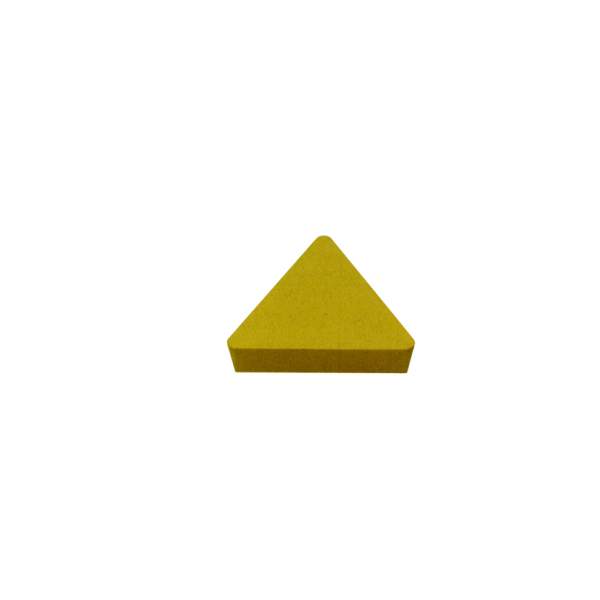

TPGN 22 04 01 Screw-On Style Insert
Product Overview
Looking for a reliable insert that fits seamlessly into your machining setup? The TPG 430 INSERT TPGN 22 04 01 delivers precise performance and durability for your cutting needs.
Designed specifically for professionals who work with materials generating short chips, this screw-on style insert ensures smooth operation and quick changes.
With its standard or double cut options and zero corner radius, it’s a versatile addition that helps keep your workflow efficient and dependable.
Key Features
- Screw-on style insert for easy mounting and replacement
- Compatible with materials that produce short chips for improved cutting action
- Standard and double cut options available to suit different machining needs
- 1/2 inch inscribed circle (I.C.) for accurate fitting
- 3/16 inch cutting width for precise operations
- Zero corner radius for exact edge profiling
- Thru-hole design enhances secure attachment and stability
- Crafted to reduce downtime with fast insert changes
- Works well in a variety of metalworking applications
- Durable construction ensures long-lasting performance
Specifications
- Shape / Type: Screw-on style insert (TPG)
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 0.000 (zero radius)
- Thru Hole: Yes
- Material Compatibility: Suitable for materials that create short chips
- SKU / Part Number: TPG 430
Why TPG Style Inserts Are Trusted in Metalworking
Over time, the durability and secure fit of TPG style inserts like the TPG 430 reduce interruptions caused by tool changes and maintenance, saving both time and money. This reliability keeps your production line humming and lowers overall operating costs. Their consistent performance means you can rely on the same precise cuts day after day, maintaining quality and reducing scrap rates. This operational steadiness is particularly valued in high-volume shops where even small efficiencies add up big.
Manufactured to meet exacting standards, these inserts reflect decades of innovation the industry trusts. Their screw-on design simplifies swaps, while the careful material compatibility cuts down wear and tear on your machinery. By investing in quality tools that prioritize ease of use and longevity, businesses also reduce waste and environmental impact. The TPG 430 embodies a balance of advanced engineering and practical design that supports smarter, more sustainable metalworking.
Case Study: Real Business, Real Results
Based in Dayton, Ohio, Precision Cuts upgraded their machining inserts to tackle short chip materials more effectively.
"Switching to the TPG 430 inserts gave us smoother cuts and reduced tool changeover time significantly."
Lisa M. – Production Manager
Increased operational throughput by 35% while maintaining precision.
Why the Screw-On Style Insert Provides Quick and Secure Tool Changes
Think of the screw-on style insert like swapping out a removable phone case with just a quick turn – secure yet incredibly easy. This design lets machinists change inserts rapidly without fussing over complicated clamps, meaning less downtime and more productivity. The thru-hole screw firmly holds the insert in place, preventing movement during cutting, which helps keep your edges sharp and your cuts clean.
Installation and Maintenance Guide
Setting It Up
- Ensure the insert seat and screw hole are clean before installation
- Align the insert properly with the tool holder's seat
- Insert the screw through the thru hole and tighten securely but avoid over-tightening
- Check for firm seating with no wobble before use
- Verify the correct orientation for standard or double cut configurations
Keeping It Going
- Regularly inspect inserts for wear and replace when cutting edges dull
- Clean inserts to remove any buildup that affects cutting performance
- Check screws for tightness after every shift to avoid loosening
- Store inserts in a dry, organized space to prevent damage
- Use recommended cutting speeds and feeds to maximize insert life
Frequently Asked Questions
Q: What materials are best for the TPG 430 insert?
A: It works best with materials that create short chips, like certain steels and non-ferrous metals.
Q: Can I use both standard and double cut types with this insert?
A: Yes, the TPG 430 supports either standard or double cut configurations.
Q: What is the inscribed circle size?
A: The inscribed circle (I.C.) is 1/2 inch, which fits standard TPG tool holders.
Q: Does the zero corner radius affect edge durability?
A: Zero radius gives a precise edge but may wear faster than rounded edges in tougher jobs.
Q: How do I secure the insert onto my tool?
A: Using the screw through the thru hole ensures a sturdy, stable fit.
Q: Is the width measurement the cutting width?
A: Yes, the 3/16 inch width refers to the cutting edge size.
Q: Are these inserts reusable?
A: Inserts can be rotated or flipped depending on wear, but replacement is needed once edges dull.
Q: What is the best way to maintain my inserts?
A: Regular cleaning and checking screw tightness helps extend insert life.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to upgrade your tool setup! The TPG 430 INSERT TPGN 22 04 01 is ready to bring precision and reliability to your shop. Order now and experience the difference in your cutting performance.
