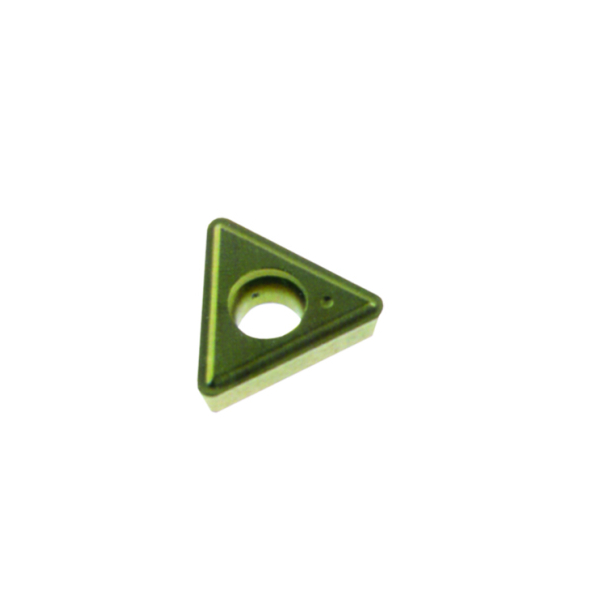

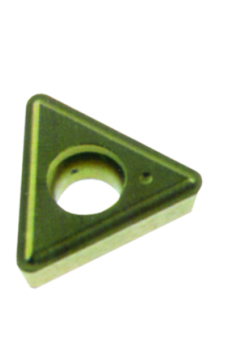

TPGH 11 02 04 Screw-On Style Insert
Product Overview
If you're looking to enhance your turning, facing, and boring operations, the INSERT TPGH 11 02 04 is designed just for you. This versatile screw-on style insert is built to bring precision and efficiency to your machining tasks.
Crafted with a 1/4 inch inscribed circle and a corner radius of 0.110 inches, it complements a variety of standard and double cut operations, making it dependable for both simple and complex jobs alike. Whether you operate in metalworking or general machining, it fits seamlessly into your workflow.
Robust and easy to replace, this TPGH style insert ensures you get consistent results every time, reducing downtime and boosting productivity. Ready to upgrade your toolset with a reliable cutting insert? This one’s worth a close look.
Key Features
- Screw-on style insert that’s easy to install and replace
- Suitable for turning, facing, and boring applications
- Standard cut and double cut options for versatile machining
- 1/4 inch inscribed circle for compatibility with many holders
- Corner radius of 0.110 inches for smooth finishes on workpieces
- Thru hole design for secure and stable mounting
- Designed to minimize chatter and improve cutting accuracy
- Durable construction ensures longer tool life and fewer replacements
- Compatible with a range of materials in metalworking
- Easy integration into existing tooling setups minimizing downtime
Specifications
- Shape / Type: TPGH Screw-On Style Insert
- Cut Type: Carbide Insert
- Head Diameter: 1/4 inch Inscribed Circle (I.C.)
- Shank Diameter: N/A (Insert Only)
- Overall Length: N/A (Insert Only)
- Material Compatibility: Suitable for various metalworking applications
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TPGH 21.51
Trusted Quality Meets Practical Performance
When investing in tooling like the INSERT TPGH 11 02 04, it pays off to consider not just the specifications but the lasting value it delivers. This insert minimizes downtime with its quick-change screw-on design, helping businesses maintain consistent production without costly interruptions. It also offers a stable cutting experience that reduces wear on your machines, meaning less maintenance and longer operational life overall.
Made in the USA: Where Innovation and Reliability Combine
Burrs4Less is proud to supply tools crafted in the USA, where quality standards are among the highest. That commitment means you get cutting inserts that perform reliably day in and day out—even under demanding shop conditions. From metal fabrication to specialized machining, this insert reflects decades of innovation, industry insight, and a drive to help professionals get the job done right every single time.
Case Study: Real Business, Real Results
Detroit, Michigan – A machine shop upgrading to the INSERT TPGH 11 02 04 to improve machining precision and reduce tool change time.
"Since switching to the TPGH style insert, our turnaround times have improved noticeably. The screw-on style makes swaps quick, and the finish quality is excellent, which has cut down rework significantly."
Mark Reynolds – Operations Manager
Reduced tool change time by 30%, increasing overall shop throughput.
How the Screw-On Design Simplifies Your Work
The screw-on style of the TPGH insert means swapping out dull or damaged inserts is a breeze—think of it like changing a lightbulb rather than rewiring the whole lamp. This design securely locks the insert in place during use, so you get stable, consistent cuts without the fuss of complicated tool changes. For busy shops juggling multiple jobs, this quick-change feature helps keep the workflow smooth and downtime minimal.
Installation and Maintenance Guide
Setting It Up
- Ensure the parent tool holder is clean and free of debris before installation.
- Align the insert’s thru hole with the screw on the tool holder.
- Secure the insert firmly using the appropriate screw; avoid over-tightening.
- Check insert positioning to ensure proper seating with no wobble.
- Test the setup on a sample workpiece to confirm cutting accuracy.
Keeping It Going
- Regularly inspect the insert for wear or damage during use.
- Clean the insert and holder after each shift to prevent chip buildup.
- Replace inserts as soon as cutting quality decreases to maintain finish standards.
- Store spare inserts in a dry, dust-free environment to preserve sharpness.
- Keep screws and holder components well-maintained to ensure secure fit.
Frequently Asked Questions
Q: What machines are compatible with this insert?
The TPGH 11 02 04 insert fits standard holders designed for 1/4 inch inscribed circle inserts and works well in turning, facing, and boring machines.
Q: Can I use this insert for both standard and double cut applications?
Yes, it is designed to support both standard and double cut operations, offering flexibility for different machining needs.
Q: How do I know if the insert is properly installed?
The insert should sit flush without wobbling and the mounting screw should be securely tightened without over-torquing.
Q: Is the corner radius important?
Absolutely. A corner radius like 0.110 aids in smoother finishes and reduces tool stress.
Q: What material types can I machine with this insert?
It's suitable for a wide range of metalworking materials typically handled in turning, facing, and boring.
Q: How often should the insert be replaced?
Replace inserts when you notice a drop in finish quality or increased cutting resistance.
Q: Is the screw included with the insert?
The insert comes as the cutting piece only; screws are usually part of the tool holder assembly.
Q: Does the insert require special handling?
Keep inserts clean and store them in a dry place to maintain sharpness and prevent corrosion.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let downtime slow down your workshop any longer. Upgrade your tooling with the reliable INSERT TPGH 11 02 04 today and enjoy smoother machining, quicker changes, and consistent results. Add it to your cart and experience the difference quality makes!
