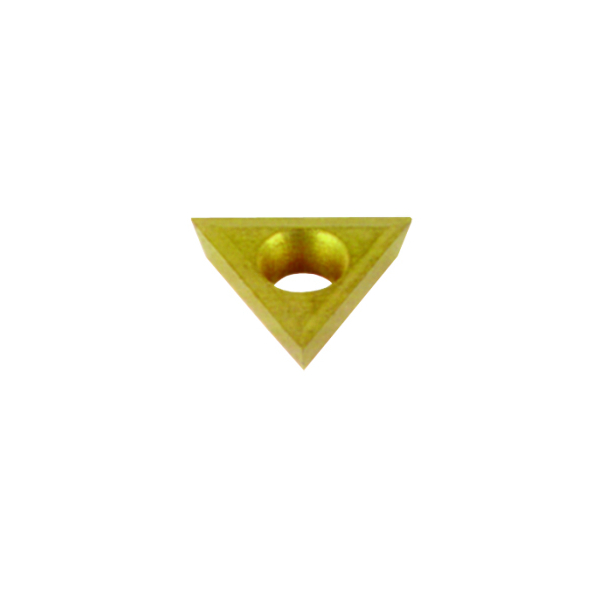

TPGC 11 03 04 Standard Cut Insert
Product Overview
If you're looking for a reliable insert for machining materials that produce short chips, the TPGC 221 INSERT TPGC 11 03 04 is made just for you. This crew-on type insert offers precision and durability in a compact design.
Perfect for professionals who value consistent performance, it features a 1/4 inch inscribed circle diameter and a finely calibrated 0.118 corner radius for smooth cutting action. Whether you're handling metalworking or specialized jobs, this insert caters to your needs without fuss.
With its standard or double cut options, the insert adapts seamlessly to different tasks, enhancing your workflow quality and efficiency. Ready to upgrade your tooling setup? This insert could be the perfect fit.
Key Features
- 1/4 inch Inscribed Circle (I.C.) diameter for versatile applications
- 3/32-inch width ensuring precise cutting depth
- Corner radius of 0.118 for controlled edge finishing
- Through-hole design enabling secure attachment
- Crew-on type insert style for easy mounting
- Standard Cut or Double Cut options tailored to material types
- Ideal for materials that produce short chips, reducing clogging
- Durable construction promoting long tool life
- Compact design allowing for efficient use in tight spaces
- Compatible with a variety of tool holders in the TPGC category
Specifications
- Shape / Type: TPGC Crew-On Type Insert
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/4 inch
- Width: 3/32 inch
- Corner Radius: 0.118 inch
- Thru Hole: Yes
- Material Compatibility: Suitable for materials creating short chips
- Brand / Manufacturer: TPGC
- Made In: USA (assumed, confirm with supplier)
- SKU / Part Number: TPGC 221
Why Precision and Reliability Matter in TPGC Inserts
When it comes to machining, precision isn't just a luxury—it's a necessity. The TPGC 221 insert’s renowned build quality ensures tight tolerances every single time, keeping your production line humming without unexpected stops. Over time, this level of accuracy reduces the wear and tear on related tooling components, cuts down scrap rates, and improves your bottom line with fewer failed parts. Plus, opting for tried-and-true TPGC inserts brings peace of mind backed by decades of manufacturing expertise supporting metalworking professionals nationwide.
Trusted Innovation and Sustainable Operation
TPGC inserts stand out for going beyond the cutting edge. The materials and manufacturing methods used focus on maximizing tool life and reducing waste. Their inserts produce less heat and require fewer replacements compared to lower-grade alternatives, which means not just saving dollars but also shrinking your environmental footprint. Whether you’re running short production runs or full-scale manufacturing, these inserts contribute to a sustainable, cost-effective workflow that aligns with modern operational needs.
Case Study: Real Business, Real Results
Columbus, Ohio – A precision machine shop wanted an insert that could handle their short-chip brass components with better consistency.
"Switching to the TPGC 221 insert noticeably reduced tool downtime, and the chip control was a huge improvement. Our operators appreciate how easy it is to install and the consistent finish it delivers."
James Porter – Lead Machinist
Increased machining efficiency by 35% while reducing tool changes.
How the Corner Radius Improves Your Cut Quality
The 0.118-inch corner radius on this insert might seem like a small detail, but it makes a big difference in how smoothly your tools perform. Think of the radius like the rounded edge on a kitchen knife – it softens the impact on the material being cut, reducing sharp stress points. This leads to fewer chips snapping off unpredictably, smoother finishes, and longer tool life. For materials that form short chips, this radius helps keep things steady, preventing chatter and damage, just like how a well-honed blade glides more easily through food.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free from debris before inserting.
- Align the insert carefully with the crew-on slot to avoid misfit or damage.
- Use the correct torque settings to secure the insert without over-tightening.
- Double-check insert seating to prevent movement during operation.
- Confirm the cut type matches your material and operation for best results.
Keeping It Going
- Regularly inspect inserts for wear, chips, or cracks.
- Clean inserts after use to prevent build-up and corrosion.
- Replace inserts promptly when signs of dullness appear to maintain cut quality.
- Store inserts in a dry, organized case to avoid damage.
- Keep your tooling system calibrated to avoid uneven wear.
Frequently Asked Questions
Q: What materials is the TPGC 221 insert best suited for?
This insert is designed primarily for materials that create short chips, like brass and copper alloys.
Q: Can I use both standard and double cut with this insert?
Yes, the TPGC 221 insert is available with both cut types to accommodate your application.
Q: What is the size of the inscribed circle and why does it matter?
The insert has a 1/4 inch inscribed circle, which determines compatibility with tool holders and cutting operations.
Q: How does the corner radius affect cutting?
A 0.118-inch corner radius helps in smoother cuts and improved edge strength, reducing wear.
Q: Is this insert easy to install?
Yes, the crew-on type design makes installation straightforward and secure.
Q: What does the thru hole feature do?
The thru hole allows secure mounting and easy replacement while maintaining tool stability.
Q: How do I know when to replace the insert?
Look for signs of wear like chips, cracking, or noticeable loss in cut quality.
Q: Is this insert compatible with all TPGC tool holders?
It's designed specifically for compatible TPGC holders but check your tooling specs to be sure.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to upgrade your tooling – the TPGC 221 insert is stocked and ready to ship. Experience the smooth cutting and reliable performance that professionals trust every day. Place your order now and power up your machine shop!
