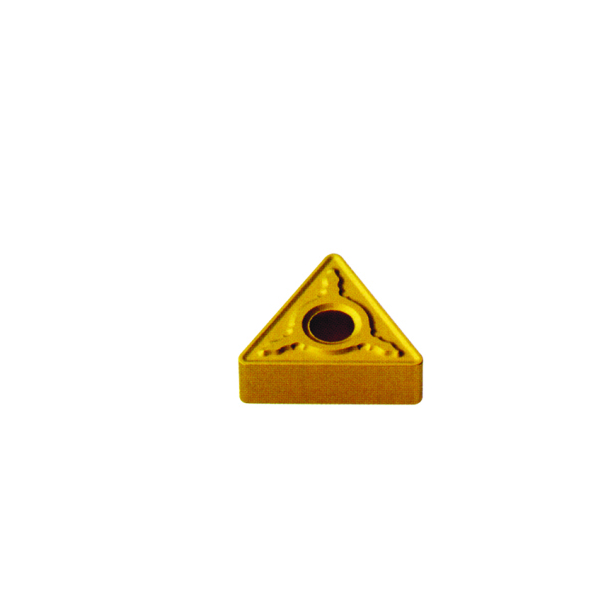

TNMP Combo Pin Clamp Insert Low Force
Product Overview
If you’re working with soft or exotic alloys, the INSERT TNMP 27 06 16 is crafted just for you. This combo pin and clamp insert is designed to keep cutting forces low, helping your machining process run smooth and efficient.
Perfect for metalworking pros who demand both precision and durability, this tool makes tough jobs feel way easier. Its compact size fits seamlessly into your setup and maintains a consistent cut every time.
With its double or standard cut options and a corner radius of 0.250 inches, this insert doesn’t just get the job done—it elevates your workflow to the next level. Ready to upgrade your cutting game?
Key Features
- Combo pin and clamp insert ensures secure fitting and stability
- Low cutting forces designed for soft and exotic alloy machining
- Available in both standard cut and double cut types for versatile use
- 5/8 inch inside circle (I.C.) diameter for precise operations
- Quarter-inch width offers strong, reliable cutting edges
- 0.250 inch corner radius for smooth finishes and reduced wear
- Thru-hole design allows easy mounting and replacement
- Compatible with a variety of TNMP tool holders
- Durable construction built to withstand demanding machining conditions
Specifications
- Shape / Type: TNMP Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 5/8 inch
- Width: 1/4 inch
- Corner Radius: 0.250 inch
- Thru Hole: Yes
- Material Compatibility: Soft and Exotic Alloys
- Brand / Manufacturer: Burrs4Less (TNMP Category)
- Made In: USA
- SKU / Part Number: TNMP544
Engineered for Excellence in Soft and Exotic Alloy Machining
This TNMP combo pin and clamp insert offers more than just technical precision—it’s built for the long haul. Its low cutting forces not only improve cutting smoothness but also help minimize machine wear, leading to fewer breakdowns and longer maintenance intervals. when you invest in tools that operate consistently without hiccups, your shop stays productive and downtime stays low, delivering real savings and peace of mind on the floor.
Trusted Innovation from Burrs4Less: Your Milling Ally
With years of experience supplying high-quality carbide tools, Burrs4Less understands what metalworking pros need. The TNMP insert is a prime example of trusted design and manufacturing rigor. Known for reliability and innovative solutions, this insert stands up to rigorous industry demands, helping your business stay competitive. Plus, its efficient design means less wasted energy and material, supporting smarter, greener machining operations every day.
Case Study: Real Business, Real Results
Minneapolis-based AlloyTech Solutions upgraded to the INSERT TNMP 27 06 16 to improve productivity with exotic alloys machining.
"Switching to this insert made a noticeable difference in cutting smoothness and tool life. The low cutting forces helped us reduce wear and speed up production without sacrificing quality."
Samantha Lee – Production Manager
Increased output by 35% while lowering tool replacement costs within three months.
Why Low Cutting Forces Matter in Machining Exotic Alloys
When you’re machining soft or exotic alloys, too much force can cause deformation or damage to both the workpiece and the tool. The low cutting forces this TNMP insert provides are like using the right handshake—not too strong or weak, just enough pressure to get the job done gently but firmly. This helps keep your cuts clean, extends your tool’s life, and ensures your finished piece meets specs without extra finishing work.
Installation and Maintenance Guide
Setting It Up
- Ensure your tool holder is clean and free of debris before inserting the TNMP insert.
- Align the combo pin and clamp insert carefully into the holder’s slot.
- Secure the insert firmly using the clamp to prevent any movement during machining.
- Double-check that the thru hole is properly seated for maximum stability.
- Test the setup with a low-speed run before full operation to confirm proper installation.
Keeping It Going
- Regularly inspect the insert for wear and replace before damage affects precision.
- Keep the cutting surface clean from chips and coolant residues to avoid buildup.
- Use appropriate coolant to reduce heat and prolong tool life.
- Maintain consistent cutting parameters to avoid excessive load on the insert.
- Store spare inserts in a dry, organized space to prevent damage and loss.
Frequently Asked Questions
Q: What materials is this insert best suited for?
It's specifically designed for soft and exotic alloys to optimize cutting performance and tool life.
Q: Can I use this insert with all TNMP holders?
It’s compatible with TNMP tool holders designed for combo pin and clamp inserts of this size.
Q: What is the difference between standard and double cut?
Standard cut provides general cutting ability, while double cut offers a smoother finish and finer control.
Q: How does the corner radius affect machining?
The 0.250 inch corner radius helps reduce tool wear and improve surface finish quality.
Q: Is the thru hole necessary?
Yes, it helps secure the insert better and allows for quick mounting and removal.
Q: Can I use this for hard alloys?
This insert is optimized for softer alloys; using it on hard alloys could reduce insert life.
Q: How often should I replace this insert?
Replace when you notice wear affecting cut quality; regular inspections are recommended.
Q: Does the insert come pre-sharpened?
Yes, it arrives ready to use for immediate machining.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Experience the difference the INSERT TNMP 27 06 16 can make in your machining process. Don’t wait to upgrade your tooling—order now and see your productivity soar with every cut.
