TNMP Combo Pin and Clamp Insert
Product Overview

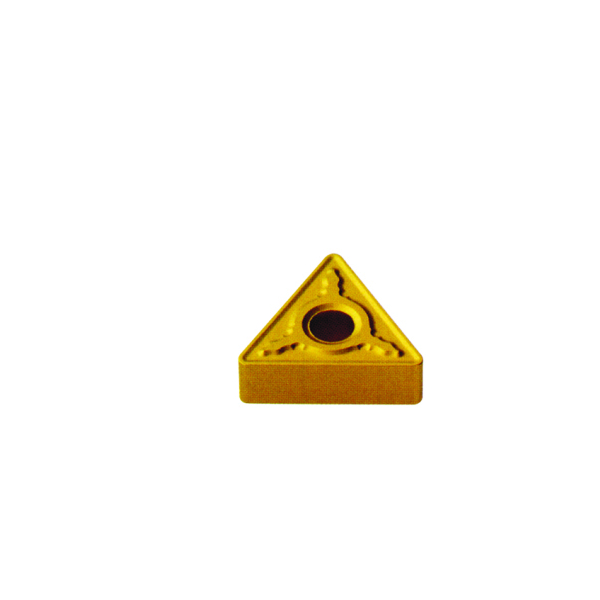

If you’re digging for a reliable, precision-engineered insert for machining soft and exotic alloys, the INSERT TNMP 22 04 16 is right up your alley. It’s designed with a perfect balance in mind—combining a combo pin and clamp style for low cutting forces.
This insert is made for machinists and metalworking pros who want smooth, efficient cuts without the hassle of excessive wear or overheating. Whether you’re in aerospace, automotive, or custom fabrication, this tool handles diverse materials like a champ.
Boasting a 1/2 inch inscribed circle and a 3/16 inch width, it’s built to tackle tight tolerances and tough jobs alike. Plus, the 0.203 corner radius adds just the right amount of edge strength. Ready to sharpen your workflow with a dependable insert? This one’s made to keep you cutting clean and consistent.
Key Features
- Combo Pin and Clamp design reduces cutting forces for smoother operation
- Standard or Double Cut options for versatile material adaptability
- 1/2 inch inscribed circle size fits a wide range of tool holders
- 3/16 inch width enhances cutting stability and precision
- 0.203 inch corner radius adds durability to edge performance
- Thru hole for secure and easy mounting
- Engineered specifically for soft and exotic alloys
- Low cutting forces minimize tool wear and extend tool life
- Ideal for fine machining with consistent, quality finishes
- Manufactured to meet demanding industry standards
Specifications
- Shape / Type: TNMP Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 0.203 inch
- Shank Diameter: N/A (Insert Only)
- Overall Length: N/A (Insert Only)
- Material Compatibility: Soft and Exotic Alloys
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMP434
Innovative Engineering That Elevates Your Metalworking
The INSERT TNMP 22 04 16 isn’t just another tool in the box—it’s a product of thoughtful engineering designed to reduce the common headaches machinists face. Its combo pin and clamp mechanism ensures the insert stays put, reducing vibrations that can lead to uneven cuts or premature wear. This rugged stability leads to fewer interrupts on the production floor, which means you get more done with less downtime. Over time, that translates into real savings for your operation, minimizing the need for frequent replacements and maintenance overhauls.
Built with quality materials right here in the USA and supported by Burrs4Less’ commitment to excellence, you’re investing in a piece that’s been vetted by industry pros. Its precision and compatibility with exotic alloys position it at the forefront of tooling innovation—your go-to for tough machining operations where every detail counts. and the energy efficiency gained through reduced cutting forces also means your machines run cooler and greener, making it a solid choice for businesses focused on sustainability alongside performance.
Case Study: Real Business, Real Results
Dallas, TX – A custom aerospace parts shop needed better inserts to handle exotic alloys without frequent tool changes.
Since switching to the INSERT TNMP 22 04 16, our machining runs smoother, with less downtime and improved finish quality. The low cutting forces really helped preserve the inserts’ life.
Chris Dunbar – Production Manager
Increased tool life by 35% and reduced maintenance downtime significantly.
How Low Cutting Forces Improve Your Machining Experience
When machining soft or exotic alloys, too much pressure or force can wear out your tool quickly or damage your material. The combo pin and clamp design of this insert helps reduce those cutting forces, which means less friction and heat buildup. Think of it like slicing through butter with a sharp knife instead of trying to saw through a tough steak; less effort and cleaner cuts every time.
This reduction in cutting force not only extends your insert's life but also helps keep your machines running cooler and more efficiently, saving you time and money on replacements and repairs.
Installation and Maintenance Guide
Setting It Up
- Ensure the insert slot is clean and free from debris before installation.
- Align the combo pin and clamp correctly to secure the insert firmly.
- Use appropriate torque on the clamp to avoid over-tightening and damage.
- Double-check the thru hole alignment for a stable fit.
- Test the setup with a light cut to verify stability before full use.
Keeping It Going
- Keep the insert clean after each use to prevent buildup of residue.
- Monitor wear regularly; replace before the corner radius degrades.
- Use recommended coolants to reduce heat and prolong tool life.
- Inspect clamps and pins periodically for signs of loosening.
- Store inserts in a dry, organized space to avoid chipping or damage.
Frequently Asked Questions
Q: What materials work best with this insert?
This TNMP insert is optimized for soft and exotic alloys, providing smooth cuts with low forces.
Q: What does the combo pin and clamp design mean?
It means the insert is held securely both by a pin and clamp, reducing vibration and heat during machining.
Q: Can I use standard or double cut with this insert?
Yes, this insert supports both standard and double cut options depending on the finish and stock removal you need.
Q: What does the corner radius affect?
The 0.203 inch corner radius offers a balance between edge strength and finish quality.
Q: Is there a specific tool holder required?
The insert fits 1/2 inch inscribed circle tool holders designed for TNMP style inserts.
Q: How do I mount the insert securely?
Make sure the pin and clamp are aligned properly and tightened to the recommended torque.
Q: Can I use this insert for hard alloys?
It's best suited for soft and exotic alloys; hard alloys may require specialized inserts.
Q: What’s the thru hole for?
The thru hole ensures the insert is securely fastened and stable during operation.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let your projects stall waiting on worn-out inserts. The INSERT TNMP 22 04 16 is ready to elevate your machining game with superior precision and durability. Get yours today and experience the difference quality makes on every cut.
