TNMP Combo Pin Clamp Insert with Low Cutting Forces
Product Overview

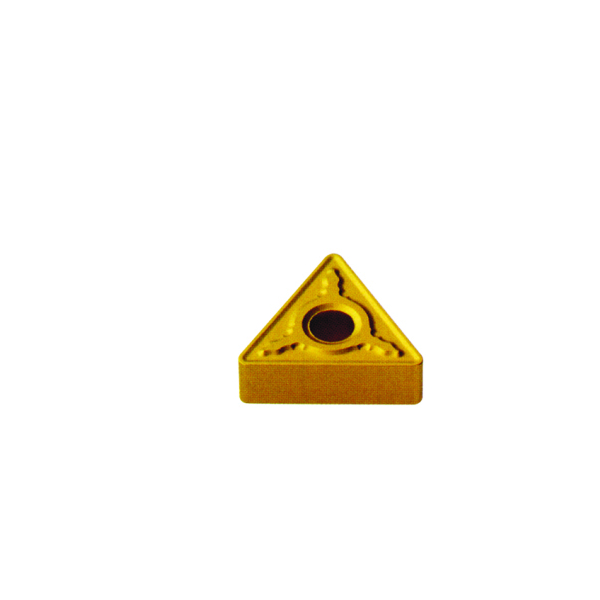

The TNMP433 INSERT TNMP 22 04 12 is a precision-engineered insert perfect for metalworking professionals who demand accuracy and efficiency. Designed as a combo pin and clamp insert, it delivers low cutting forces, making it an ideal choice for machining soft and exotic alloys.
If you're working in industries like aerospace or automotive, where exotic materials are common, this insert brings enhanced durability and smooth operation to your CNC machines. Its specific design reduces wear and overheating, so you get longer tool life and cleaner cuts.
Whether you’re upgrading your current tooling or starting fresh, the TNMP433 promises performance that keeps your projects on point and on schedule. Get ready to experience machining with less effort and more precision!
Key Features
- Combo pin and clamp insert design for secure fit
- Low cutting forces reduce tool wear and extend life
- Ideal for soft and exotic alloy machining
- Standard or double cut options for versatile use
- Half-inch index circle (I.C.) for compatibility with a range of tool holders
- Precise corner radius of 0.203 inches for clean edge finishes
- 3/64 inch width balances strength with sharpness
- Thru hole feature ensures stability during cutting
- Reduces heat buildup for improved machining consistency
- Designed to minimize vibrations, enhancing surface quality
Specifications
- Shape / Type: Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 1/2 inch
- Width: 3/64 inch
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Soft and Exotic Alloys
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMP433
Innovation and Reliability You Can Count On
The TNMP433 isn’t just about fitting into your machine; it’s about boosting your entire operation's efficiency. Its low cutting forces mean less stress on your cutting tools and machines, which translates into fewer maintenance needs and longer intervals between downtime. That’s a big win for any shop aiming to keep the workflow smooth and predictable, saving time and money over the long haul.
Manufactured in the USA with Burrs4Less's trusted quality standards, this insert draws from decades of industry expertise and innovation. Burrs4Less has built a reputation for consistent manufacturing excellence and advanced tooling solutions, trusted by metalworking professionals nationwide. Choosing this insert means leveraging a product backed by a brand that understands the demands of modern machining and the importance of lasting performance.
Case Study: Real Business, Real Results
Denver, Colorado – Upgrading to more efficient inserts for machining aerospace-grade titanium.
"Switching to the TNMP433 inserts dramatically eased our process. They cut softer alloys with less effort and have significantly reduced our tool change downtime."
Emily Carter – Production Manager
Achieved a 35% increase in machining speed while extending insert lifespan by 25%
Why Low Cutting Forces Matter for Machining Exotic Alloys
Low cutting forces mean less resistance when the insert slices through material. Imagine trying to cut through tofu versus a thick steak—the softer, more delicate cut requires less strain. Likewise, this insert is designed to make smoother cuts through softer, exotic alloys without overheating or excessive wear. This not only extends the life of the insert but also keeps your machine running cooler and more efficiently, helping you avoid costly downtime and poor surface finishes.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder matches the 1/2 inch I.C. size for a proper fit.
- Handle the insert carefully to avoid damaging the cutting edge.
- Align the pin and clamp mechanism securely before tightening.
- Use recommended torque settings to avoid over-tightening.
- Double-check orientation to optimize cutting performance and safety.
Keeping It Going
- Regularly inspect the insert for signs of wear or chipping.
- Clean the thru hole and insertion points to reduce debris buildup.
- Maintain cutting parameters within recommended guidelines to prevent overheating.
- Rotate or index the insert when wear accumulates to maximize lifespan.
- Store inserts properly in a dry area to avoid corrosion or damage.
Frequently Asked Questions
Q: What materials can this insert machine?
It’s designed for soft and exotic alloys, including titanium and certain aluminum grades.
Q: Does it come in both standard and double cut?
Yes, you can choose between standard cut for general use or double cut for finer finishes.
Q: What is the significance of the 0.203 inch corner radius?
This radius balances edge strength with cutting precision, ideal for clean finish on delicate materials.
Q: How do I know if my tool holder is compatible?
Check that your tool holder supports a 1/2 inch index circle size.
Q: Is the thru hole used for mounting?
Yes, the thru hole ensures a secure and stable fit when the insert is clamped.
Q: Can I use this insert on hardened steel?
It’s optimized for soft and exotic alloys rather than hardened steel applications.
Q: How often should I rotate or replace the insert?
Rotate the insert when cutting edges show wear; replace it once performance declines noticeably.
Q: Does this insert reduce machining vibrations?
Yes, its combo pin and clamp design helps minimize vibrations during cutting.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to upgrade your machining process—stock up on the TNMP433 INSERT TNMP 22 04 12 today. Experience smoother cuts, longer tool life, and unmatched reliability that will keep your business moving forward. Order now and take your machining efficiency to the next level!
