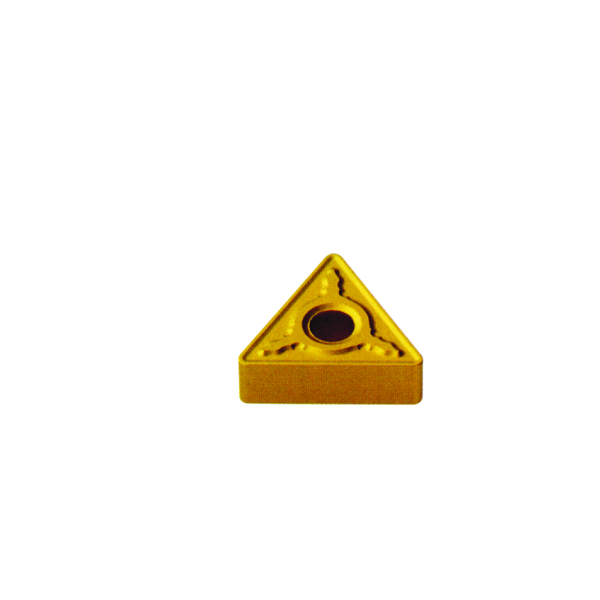

TNMP Combo Pin Clamp Insert Low Cutting Force
Product Overview
If you're looking to enhance your machining process, the INSERT TNMP 22 04 08 is a smart choice. Designed specifically to deliver low cutting forces, it's perfect for professionals working with soft and exotic alloys.
This combo pin and clamp insert blends durability with precision, making it ideal for metalworking shops aiming for top-notch performance without the fuss. It fits perfectly in the TNMP style category, giving you versatility in your workflow.
Whether you’re upgrading tooling or replacing worn-out parts, this insert promises consistent results thanks to its innovative design and reliable standards. Step up your machining game with this robust, expertly engineered insert.
Key Features
- Combo pin and clamp insert design for secure placement
- Low cutting forces ideal for soft and exotic alloys
- Standard or double cut type available for varied machining needs
- 1/2 inch Inside Circle (I.C.) for compatibility
- Precise 3/16-inch width for fine cutting control
- Corner radius of 0.203 inches for smooth edge finishing
- Thru hole for easy installation and replacement
- Offers reliable performance with minimal vibration
- Designed to reduce tool wear and extend life
- Compatible with various machining setups in TNMP style tooling
Specifications
- Shape / Type: TNMP Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Head Diameter (Inside Circle): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Soft and Exotic Alloys
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMP432
Built to Deliver Long-Term Reliability and Savings
Beyond just meeting your current machining requirements, the INSERT TNMP 22 04 08 is crafted for lasting operational reliability. Its design minimizes maintenance disruptions by reducing tool wear and lowering the stress on your machining equipment. This translates to fewer replacements and downtime, giving your business the edge when it comes to productivity and cost control. Plus, its compatibility with exotic alloys opens doors to specialized projects, expanding your service capabilities without sacrificing quality.
A Brand You Can Trust for Precision and Innovation
As a product offered by Burrs4Less, a reputable name in precision cutting tools, this insert benefits from a history of innovation and quality. Our commitment to providing American-made cutting solutions means you’re getting products that stand up to daily challenges in professional workshops. Burrs4Less tools are recognized for their practical design and durability, helping businesses maintain consistent cutting performance that meets industry demands and environmental efficiency considerations over the long run.
Case Study: Real Business, Real Results
Located in Cleveland, Ohio, Precision Alloy Works needed an upgrade to reduce machine downtime when working with specialized metals.
"Switching to the INSERT TNMP 22 04 08 drastically lowered our cutting force, allowing smoother runs and less wear on our machines. The precision and durability have noticeably boosted our production efficiency."
Mark Reynolds – Production Manager
Increased output by 35% while decreasing tool replacement frequency.
How Low Cutting Forces Improve Your Machining Experience
Low cutting force might sound like tech jargon, but it’s essentially about making your machine’s life easier. Think of it like slicing through butter instead of trying to carve a rock. when your tool applies less force, you get a smoother cut, less wear on machine parts, and longer tool life. For the TNMP 22 04 08 insert, that means less heat generation and less stress on both your equipment and the material, which equals better quality finishes and cost savings in the long run.
Installation and Maintenance Guide
Setting It Up
- Ensure your toolholder matches the TNMP insert style.
- Clean the clamp and pin area to prevent debris build-up.
- Place the insert carefully aligning the thru hole with the clamp pin.
- Tighten the clamp securely to avoid movement during operation.
- Double-check the corner radius orientation for the intended cutting angle.
Keeping It Going
- Regularly inspect the insert for signs of wear or chipping.
- Keep the toolholder and cutting area free from chips and dust.
- Lubricate machine components as recommended by your equipment manual.
- Replace the insert promptly once performance dips to maintain finish quality.
- Store spare inserts in a clean, dry place to prevent corrosion.
Frequently Asked Questions
Q: What materials is the INSERT TNMP 22 04 08 best suited for?
It's designed for soft and exotic alloys, providing low cutting forces and precision.
Q: Can I use this insert with standard and double-cut options?
Yes, it supports both standard and double-cut types depending on your machining needs.
Q: What is the significance of the corner radius?
The corner radius of 0.203 inch helps create smooth finishes and reduces tool stress.
Q: Is the insert easy to install?
Yes, it features a combo pin and clamp design with a thru hole for secure and straightforward installation.
Q: Does it fit all TNMP style toolholders?
It is specifically designed for TNMP style holders; compatibility should be confirmed before purchase.
Q: How does low cutting force benefit machining?
Lower cutting forces reduce wear on tools and machines, leading to better precision and longer equipment life.
Q: What is the overall size of the insert?
It has a 1/2 inch Inside Circle and a 3/16 inch width, fitting typical TNMP tooling specifications.
Q: Can this insert be used for high-production machining?
Absolutely, the durable design supports consistent performance in demanding environments.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Grab your INSERT TNMP 22 04 08 today and see the difference low cutting forces make in your shop. Delivered with Burrs4Less quality assurance, it’s time to boost your machining efficiency and reliability—order now!
