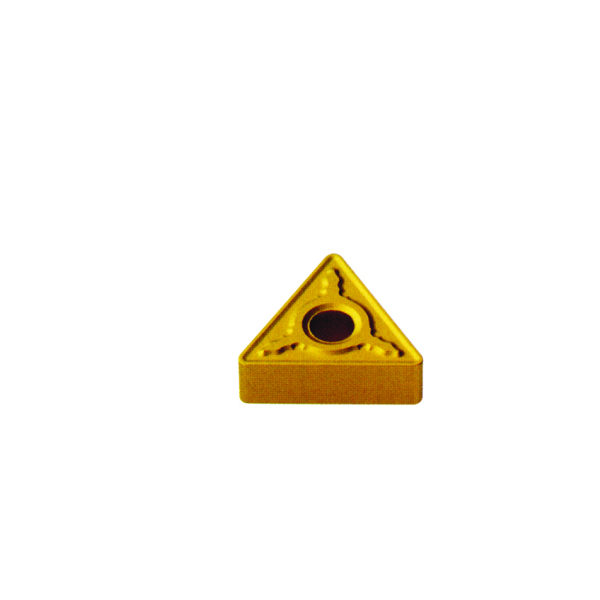

TNMP Combo Pin and Clamp Insert 1/2 I.C.
Product Overview
If you're working with softer metals or exotic alloys, the INSERT TNMP 22 04 04 is designed just for you. This combo pin and clamp insert provides low cutting forces, making machining smoother and more efficient.
Whether you’re a precision machinist or a metalworking professional, this insert tackles soft materials without wearing too hard on your tools. The corner radius and thru hole improve stability and chip evacuation.
With its standard or double cut option, you get versatility for a wide range of applications. Ready to make your next project easier? This insert is a solid choice to upgrade your machining game.
Key Features
- Combo pin and clamp design for secure attachment
- Low cutting forces reduce tool wear and power consumption
- Ideal for machining soft and exotic alloys
- Standard or double cut options available
- 1/2 inch inscribed circle size for compatibility
- 0.203 inch corner radius for fine detail and reduced chipping
- 3/16 inch width for precision material removal
- Thru hole enhances chip removal and insert stability
- Durable construction ensures long-lasting use
- Compatible with a range of tool holders in the TNMP category
Specifications
- Shape / Type: TNMP Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Soft and Exotic Alloys
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMP431
What Makes TNMP Inserts a Trusted Choice for Machinists
TNMP inserts have earned a reputation for reliability and precision in the machining world, especially when dealing with softer metals and exotic alloys. Their unique combo pin and clamp design not only ensures firm holding power but also promotes consistent cutting performance, reducing the need for frequent adjustments or replacements. Over time, this consistency translates to decreased downtime and smoother workflows for professional shops and manufacturers.
Aside from performance, Burrs4Less focuses on quality control and American manufacturing standards to deliver components that last. These inserts contribute to more sustainable operations by minimizing wear and tool waste, ultimately cutting costs while supporting environmentally conscious practices. Their longevity and trusted brand support make TNMP inserts an investment that pays dividends well beyond the workbench.
Case Study: Real Business, Real Results
Located in Dayton, Ohio, Precision Metals upgraded to the INSERT TNMP 22 04 04 to improve machinability of soft alloys in aerospace parts.
"Switching to this TNMP insert drastically lowered heat generation and extended tool life during our runs. It boosted our precision and reduced downtime."
Linda Marsh – Production Manager
Increased output by 35% while lowering tool replacement costs
Why Low Cutting Forces Matter in Machining Soft Alloys
Using inserts that deliver low cutting forces, like the TNMP 22 04 04, keeps machining smooth and prevents damage to delicate materials. Think of it like using a sharp knife to slice ripe tomatoes—the less force you need, the cleaner and neater the cut without crushing the fruit.
This means you’re less likely to warp or mar soft and exotic alloys, prolonging both your tools' lives and the quality of your finished parts. Plus, it reduces the energy your machines consume, adding up to cost savings over time.
Installation and Maintenance Guide
Setting It Up
- Ensure your tool holder is clean and free of debris before inserting the TNMP insert.
- Align the combo pin properly into the clamp for secure fastening.
- Use proper torque settings to avoid over-tightening and damaging the insert.
- Double-check the insert orientation to match the direction of cut.
- Wear safety glasses and gloves during installation for protection.
Keeping It Going
- Regularly inspect the insert for signs of wear or chipping, especially around the corner radius.
- Clean the thru hole area to prevent chip buildup that can affect performance.
- Sharpen or replace the insert as needed based on cutting performance.
- Store inserts in a dry, cool place to avoid corrosion or damage.
- Keep a maintenance log to track tool usage and replacement intervals.
Frequently Asked Questions
Q: What materials is the INSERT TNMP 22 04 04 best suited for?
It's designed for soft and exotic alloys, delivering low cutting forces to prevent damage.
Q: Can I use both standard and double cut on this insert?
Yes, the insert is compatible with both cut types depending on your finish and durability needs.
Q: What does the combo pin and clamp design do?
This design ensures the insert is securely fastened and stable during machining.
Q: What is the purpose of the thru hole in the insert?
The thru hole aids chip removal and helps maintain stability during cutting.
Q: Is this insert compatible with all TNMP tool holders?
It's compatible with tool holders designed specifically for TNMP inserts.
Q: How should I maintain the insert to maximize its lifespan?
Regular cleaning of chip buildup and inspection for wear will help keep it performing well.
Q: What corner radius should I expect?
The corner radius on this insert is approximately 0.203 inch, ideal for smooth finishes.
Q: Is the 1/2 inch inscribed circle standard for TNMP?
Yes, 1/2 inch is a common I.C. size that fits a range of holders.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don't wait to enhance your machining setup with the INSERT TNMP 22 04 04. Order now and experience smoother cuts and longer-lasting inserts that keep your projects moving efficiently. Your next precision job deserves the best.
