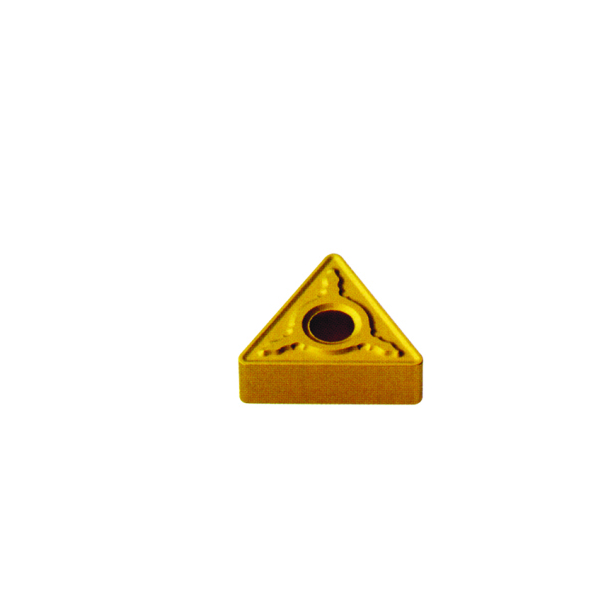

TNMP Combo Pin Clamp Insert Low Cut
Product Overview
If you're handling soft or exotic alloys, the INSERT TNMP 16 03 16 is designed just for you. This combo pin and clamp insert offers low cutting forces, ensuring smooth machining every time.
Crafted for precision and durability, it fits seamlessly in your tooling setup, providing consistent performance for metalworking pros who demand quality and reliability.
Featuring a 3/8 inch inner circle and a 0.150 inch corner radius, it balances sharpness with strength, making it an ideal choice for your next project.
Key Features
- Combo pin and clamp insert design for secure tool holding
- Low cutting forces suited for soft and exotic alloys
- Standard or double cut options to match machining needs
- 3/8 inch inner circle measurement for compatibility
- Precise 1/8" width for fine, detailed cutting
- 1/16" thru-hole for easy installation and versatility
- Durable corner radius of 0.150 inches for extended tool life
- Optimized for stable, vibration-reduced machining
- Compatible with a wide range of metalworking machinery
- Produced for consistent cut quality and repeatability
Specifications
- Shape / Type: TNMP Style Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Inner Circle Diameter (I.C.): 3/8 inch
- Width: 1/8 inch
- Thru Hole: 1/16 inch
- Corner Radius: 0.150 inch
- Material Compatibility: Soft and Exotic Alloys
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMP324
Why Choosing Burrs4Less TNMP Inserts Benefits Your Metalworking Business
Beyond the technical specs, Selecting TNMP inserts from Burrs4Less means investing in higher productivity and less downtime. These inserts contribute to longer maintenance intervals since their low cutting forces reduce tool wear and heat buildup. That translates to fewer disruptions on your shop floor and more consistent output quality, keeping your projects on schedule.
Burrs4Less has built a reputation for combining innovation with dependability. Made right here in the USA, these inserts undergo rigorous quality control, ensuring each one meets tight tolerances and delivers exceptional performance. when you use parts trusted by industry leaders, you’re indexing your production to proven standards that you can count on.
Case Study: Real Business, Real Results
In Birmingham, Alabama, a machine shop upgraded their tooling for working with exotic alloys.
"Since switching to the TNMP324 inserts, we've noticed smoother cuts and less wear on our machines, boosting our turnaround time significantly."
Melissa Harper – Operations Manager
Improved machining efficiency by 30%
Why Low Cutting Forces Matter for Machining Soft and Exotic Alloys
Think of machining soft or exotic metals like slicing through butter versus a tough steak. Low cutting forces mean the tool doesn't have to work as hard to make clean cuts, reducing heat buildup and tool wear. This keeps your production running longer without downtime and guarantees better surface finishes. It's like having a pair of sharp scissors instead of dull ones—you get the job done faster with less frustration.
Installation and Maintenance Guide
Setting It Up
- Ensure the insert matches machine specifications before installation
- Securely tighten the combo pin and clamp for stable positioning
- Check that the thru hole aligns properly with mounting screws
- Use recommended torque settings to avoid damaging the insert
- Inspect the insert edges for chips or damage prior to mounting
Keeping It Going
- Regularly clean inserts to prevent material buildup
- Monitor cutting performance and replace worn inserts timely
- Avoid applying excessive feed rates that increase wear
- Store inserts in a dry environment to prevent corrosion
- Document tool life cycles to optimize usage and inventory
Frequently Asked Questions
Q: What materials are compatible with the TNMP324 insert?
It is designed for soft and exotic alloys, offering low cutting forces for these materials.
Q: Does this insert come in different cut types?
Yes, it is available in either standard cut or double cut options depending on your finishing needs.
Q: What does the corner radius mean?
The corner radius of 0.150 inches helps balance strength and sharpness for the insert, improving durability.
Q: How do I install the insert properly?
Ensure the combo pin and clamp securely hold the insert in place and use the correct torque on mounting screws.
Q: What is the benefit of having a thru hole?
The 1/16 inch thru hole allows easy mounting and better stability during machining.
Q: Can this insert handle high-speed machining?
While it supports efficient cutting with low forces, machine speeds should be adjusted according to material hardness and toolholder specs.
Q: Is this product made in the USA?
Yes, Burrs4Less manufactures it domestically to ensure quality control.
Q: What is the inner circle size and why is it important?
The inner circle is 3/8 inch, matching your toolholder for secure fitting and proper operation.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don't wait to enhance your machining process! The INSERT TNMP 16 03 16 is stocked and ready to ship from our USA-based warehouse. Upgrade your tooling setup today for smoother, more efficient cuts on your soft and exotic alloys.
