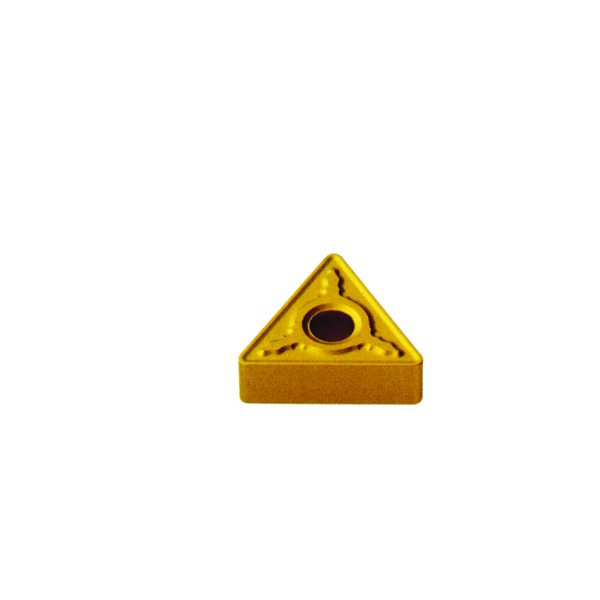

TNMP Combo Pin and Clamp Insert 3/8 I.C.
Product Overview
Looking for a reliable insert that handles soft and exotic alloys with ease? The TNMP322 INSERT TNMP 16 03 08 is designed just for you, featuring a combo pin and clamp setup that cuts down on effort while maximizing precision.
Metal fabricators and machinists working with challenging materials will appreciate its low cutting forces that minimize wear and keep the machining smooth. It’s especially suited for delicate alloys that can be tricky to handle.
With a compact 3/8 inch inscribed circle and a corner radius of 0.150, this insert blends versatility and control in one neat package. Get ready to add efficiency and finesse to your machining tasks.
Key Features
- Combo pin and clamp insert design for stability
- Low cutting forces to protect tooling and workpieces
- Standard or double cut options to match machining needs
- 3/8 inch inscribed circle for compact operation
- 1/8 inch width and 1/32 inch thru hole for secure mounting
- 0.150 inch corner radius for clean edge finishes
- Optimized for soft and exotic alloys
- Durable carbide material resists wear
- Compatible with a wide range of tool holders
- Manufactured to tight quality standards for consistent results
Specifications
- Shape / Type: TNMP Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 3/8 inch
- Width: 1/8 inch
- Thru Hole: 1/32 inch
- Corner Radius: 0.150 inch
- Material Compatibility: Soft and Exotic Alloys
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMP322
Why Burrs4Less TNMP Inserts Stand Out in Metalworking
Investing in high-quality inserts like the TNMP322 from Burrs4Less doesn’t just upgrade your tools—it upgrades your whole operation. when working with soft or exotic alloys, precision and consistency are king, and these inserts deliver just that with minimal wear and long-lasting performance. Over time, this reliability translates into less downtime and fewer costly tool changes, helping your shop stay productive and profitable.
With decades of experience in carbide tooling, Burrs4Less continues to earn the trust of professionals across the USA. Their commitment to quality craftsmanship and ongoing innovation means you’re not just buying an insert—you’re gaining a partner dedicated to your machining success. Plus, with manufacturing practices focused on sustainability, these inserts support environmentally mindful operations without sacrificing performance.
Case Study: Real Business, Real Results
In Raleigh, North Carolina, a custom aerospace parts manufacturer needed to reduce tool wear during production upgrades.
"Switching to the TNMP322 insert noticeably lowered cutting forces, helping us extend tool life and maintain precision, especially on tough, exotic alloys."
Haley Morgan – Production Supervisor
Improved production consistency and reduced tooling costs by 30%
How the Combo Pin and Clamp Design Reduces Cutting Effort
Think of the combo pin and clamp setup as a two-way street that holds the insert firmly in place without overexerting your machining tools. It’s like fastening your bike tightly before a bumpy ride — everything stays secure, reducing vibrations and cutting resistance. This means smoother cuts, less heat buildup, and longer tool life when working with those soft and exotic materials that can be finicky sometimes.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of debris before attaching the insert.
- Align the insert with the pin and clamp slots carefully to ensure a secure fit.
- Use the correct torque settings recommended for your tool holder to avoid over-tightening.
- Check the insert seating for any gaps or movement before starting the machine.
- Confirm that the cutting edge is oriented correctly for optimal performance.
Keeping It Going
- Regularly inspect the insert for signs of wear or chipping after each use.
- Clean the insert and tool holder to prevent buildup of material and grit.
- Store inserts in a dry, organized area to avoid damage.
- Replace inserts at the first sign of deterioration to maintain machining quality.
- Keep a log of insert usage to predict replacement timing better.
Frequently Asked Questions
Q: What materials are best suited for the TNMP322 insert?
The insert is optimized for machining soft and exotic alloys, providing low cutting forces for better control.
Q: Does the TNMP322 come in different cut types?
Yes, you can choose between standard cut or double cut to match your machining needs.
Q: What is the inscribed circle size of this insert?
The TNMP322 has a 3/8 inch inscribed circle, making it compact and versatile.
Q: How do I secure the insert properly?
Use the combo pin and clamp design by aligning it carefully and tightening with the recommended torque.
Q: What is the corner radius, and why does it matter?
The corner radius is 0.150 inches, which helps achieve clean edges and reduces stress during cutting.
Q: Can I use this insert with any tool holder?
It’s designed to fit holders compatible with TNMP combo pin and clamp inserts; always verify compatibility first.
Q: How do I know when to replace the insert?
Replace it if you notice wear, chipping, or poor cutting performance to maintain quality.
Q: Is this insert made in the USA?
Yes, the TNMP322 is proudly made in the USA to high-quality standards.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to elevate your machining efficiency—order the TNMP322 Insert TNMP 16 03 08 today and experience smoother cuts with less wear. Your tools and workflow will thank you!
