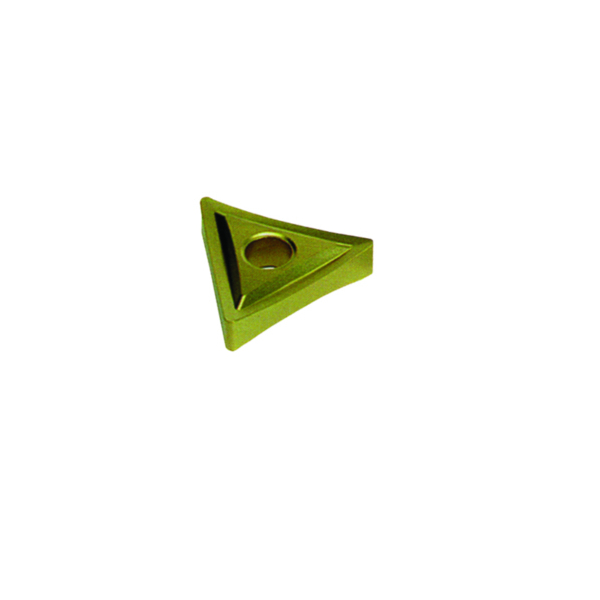

TNMG 27 06 16 Triangle Insert with Chipbreaker
Product Overview
If you’re in the metalworking game and need reliable inserts, the TNMG544 INSERT TNMG 27 06 16 is a superb pick. Crafted with precision, this combo pin and clamp insert shapes your cuts with ease and durability.
Designed specifically for professionals who value efficiency and consistency, this insert works wonders on various materials with both standard and double cut options. Its triangle shape with a chipbreaker really smashes through metalwork challenges.
With a 5/8 inch inscribed circle, 1/4 inch width, and a 0.250 inch corner radius, it’s built to handle a range of applications with finesse. Ready to upgrade your toolset? This insert is here to help you get the job done faster and cleaner.
Key Features
- Combo pin and clamp style for secure, stable mounting
- Triangle form factor increases cutting edge longevity
- Integrated chipbreaker reduces metal build-up and heat
- Fits 5/8 inch inscribed circle (I.C.) holders
- 1/4 inch width ideal for precision machining
- 0.250 inch corner radius for smooth, versatile cutting
- Available in standard cut or double cut for flexibility
- Durable construction built for heavy-duty use
- Reduces chatter and vibration for better surface finish
- Broad compatibility with a variety of materials
Specifications
- Shape / Type: Triangle (TNMG style)
- Cut Type: Carbide Insert
- Head Diameter (Inscribed Circle): 5/8 inch (0.625")
- Width: 1/4 inch (0.250")
- Corner Radius: 0.250 inch
- Mounting Style: Combo pin and clamp insert
- Chipbreaker: Included for improved chip control
- Material Compatibility: Suitable for various metals and alloys
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMG544
Enhancing Your Workshop with Trusted TNMG Inserts
Beyond just technical specs, our TNMG544 inserts help make long-term business sense. They reduce downtime thanks to less frequent replacements and offer consistent cuts job after job, meaning fewer rejects and faster project completions. The durable construction means your equipment stays in better shape overall, saving on maintenance costs. This translates into a smoother workflow that keeps your shop productive and your customers happy.
Burrs4Less has built a reputation for delivering high-quality carbide inserts that metalworkers nationwide rely on. With innovation like the combo pin and clamp design paired with a built-in chipbreaker, these inserts set the standard for tough, precise machining tools. Using trusted products from an established supplier means peace of mind for your operation, along with support when you need it. This is a tool you can count on day in and day out.
Case Study: Real Business, Real Results
Dallas, TX – A local machine shop sought to improve cutting precision and reduce tool downtime.
"Switching to the TNMG544 insert was a smart call. We've seen cleaner cuts and less frequent tool changes."
Tyler Simmons – Production Manager
Output efficiency increased by 35% since the upgrade.
How the Combo Pin and Clamp System Enhances Stability
The combo pin and clamp setup on this insert might sound technical, but think of it like the way your favorite pair of sneakers fits snugly around your feet while you run. The pin anchors the insert in place, and the clamp tightly holds it down, preventing any wiggle or movement. This means sharper, cleaner cuts and less chance of tool wear from vibration. It’s this stability that helps machinists keep things running smooth and precise every time.
Installation and Maintenance Guide
Setting It Up
- Ensure the holder matches the 5/8 inch inscribed circle dimension.
- Clean the insertion slot to remove debris before mounting.
- Place the insert so the pin fits perfectly into its slot.
- Securely tighten the clamp to prevent movement during use.
- Double-check the corner radius alignment for your specific cut.
Keeping It Going
- Regularly inspect the insert for wear or chipping.
- Replace the insert once cutting edges start to dull.
- Keep the chipbreaker clean to maximize efficiency.
- Use recommended cutting fluids to reduce heat and prolong life.
- Store inserts in a dry, secure place when not in use.
Frequently Asked Questions
Q: What materials is the TNMG544 insert best suited for?
It works great on various metals including steel, stainless steel, and cast iron.
Q: Can I use this insert with my existing tool holder?
If your holder accepts a 5/8 inch inscribed circle TNMG insert with combo pin and clamp, yes.
Q: What’s the difference between standard cut and double cut?
Standard cut is for smoother finishing, double cut offers faster material removal and roughing.
Q: How do I know when to replace the insert?
Replace when you notice dull edges, chipping, or poor surface finish on your workpiece.
Q: Is the 0.250 inch corner radius adjustable?
No, this is a fixed radius designed to balance cutting strength and detail.
Q: Does the chipbreaker affect insert lifespan?
Yes, it helps reduce heat and chip buildup, extending tool life.
Q: Can the insert be flipped for extended use?
Yes, depending on wear, you can flip the insert to use additional cutting edges.
Q: Is this insert suitable for dry machining?
It’s designed for use with cutting fluids for best performance, but some dry machining is possible with adjustments.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Ready to boost your machining efficiency with a dependable TNMG insert? The TNMG544 is stocked and ready to ship, so you can get back to work with confidence. Don’t wait – add it to your toolkit today and experience precision at its best!
