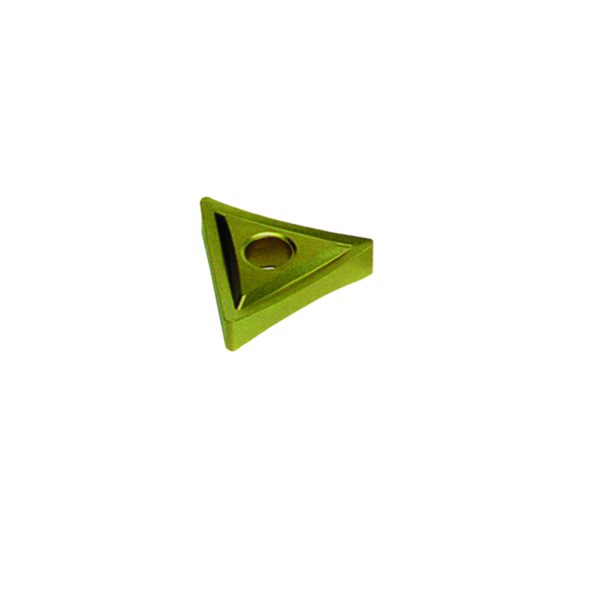

TNMG 27 06 12 Combo Pin Clamp Insert
Product Overview
Meet the TNMG543 INSERT TNMG 27 06 12, a versatile and reliable cutting insert designed specifically for professionals demanding precision and durability. Crafted with a combo pin and clamp design in a triangular shape, it’s built to tackle a variety of metalworking challenges with ease.
If you’re a machinist or shop owner looking to enhance your turning or milling operations, this insert is a great fit. The unique chipbreaker feature helps manage chips for a smoother finish and better tool life, making it ideal for both standard and double cut applications.
With a 5/8 inch inscribed circle and a 0.250 inch corner radius, this insert offers a balanced cutting edge that delivers clean and accurate results. It’s time to upgrade your tooling with something that’s engineered to keep pace with your production demands.
Key Features
- Combo pin and clamp style for secure and stable tool holding
- Triangular insert shape provides three cutting edges for efficiency
- Chipbreaker design controls chip flow, reducing potential damage
- Available with Standard Cut and Double Cut options for versatility
- 5/8 inch inscribed circle balances strength and accessibility
- 0.250 inch corner radius for smooth and precise cutting
- 1/4 inch width delivers durability without sacrificing accuracy
- Thru hole mounting ensures quick and secure insert changes
- Compatible with a wide range of carbide tool holders
- Manufactured for consistency and longer tool life
Specifications
- Shape / Type: Triangle with Chipbreaker
- Cut Type: Carbide Insert
- Head Diameter / I.C.: 5/8 inch
- Width: 1/4 inch
- Corner Radius: 0.250 inch
- Thru Hole: Yes
- Material Compatibility: Suitable for various metals including steel and cast iron
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMG543
Why Burrs4Less Inserts Deliver More Than Just Precision
Beyond the fine technical details, these TNMG inserts represent a long-term partnership between your operations and Burrs4Less. With high manufacturing standards, every insert promises minimal downtime and fewer replacements. Over time, this translates into less equipment maintenance and a smoother workflow that isn’t constantly interrupted by tool changes. The brand’s dedication to quality also means consistent performance batch after batch, which is critical when delivering tight tolerance parts where reliability is king.
Burrs4Less has carved out a respected place in the metalworking community by focusing on innovation and durability. The company’s inserts offer exceptional wear resistance and chip control that helps shops run cleaner and leverage environmental benefits, like less scrap and waste. when you choose their carefully engineered inserts, you’re not just getting a part—you’re investing in a solution that improves shop productivity, enhances safety with better chip evacuation, and reduces overall operational costs.
Case Study: Real Business, Real Results
Chicago, Illinois – Upgrading tooling to reduce downtime and improve finish quality.
"Switching to the TNMG543 inserts has noticeably improved our cycle times and cut down on tool wear. The chipbreaker really helps us maintain cleaner cuts and less scrap."
Lisa Horton – Production Manager
Boosted production efficiency by 35% while extending insert life.
How the Chipbreaker Design Keeps Your Cuts Neat and Efficient
The chipbreaker on this triangular insert acts like a traffic controller on a busy highway. Instead of allowing metal chips to fly off in uncontrolled directions, it guides them neatly away from the cutting edge. This prevents clogging and heat build-up, which can damage both the insert and your workpiece. Think of it as smoothing out the metal removal process, making every cut cleaner and your tools last longer – no messy interruptions, just precision.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of debris before inserting.
- Align the combo pin and clamp insert correctly to secure it firmly.
- Check that the triangular insert seats fully into the holder’s pocket.
- Tighten clamps properly but avoid overtightening to prevent damage.
- Confirm the insert’s chipbreaker side is positioned correctly for optimal chip control.
Keeping It Going
- Regularly inspect inserts for wear or chipping and replace as needed.
- Keep the tool holder clean to avoid cutting interference.
- Use coolant or air blasts to reduce heat and chip buildup during operation.
- Store spare inserts in a dry place to prevent corrosion.
- Follow recommended speeds and feeds for your material to extend tool life.
Frequently Asked Questions
Q: What materials can this TNMG insert cut?
It is compatible with a variety of metals including steel, cast iron, and some non-ferrous materials.
Q: What’s the difference between standard cut and double cut?
Standard cut inserts have a simpler rake for general cutting, while double cut inserts offer a more aggressive, smoother finish by having two sets of cutting edges.
Q: How do I know if the insert fits my tool holder?
Check your tool holder specifications to match the 5/8 inch inscribed circle and 1/4 inch thickness of this insert.
Q: Why does the insert have a chipbreaker?
The chipbreaker controls the flow and shape of metal chips during cutting, reducing heat and workpiece damage.
Q: Can I use this insert for finishing and roughing?
Yes, depending on the cut type Selected, it suits both finishing and roughing applications.
Q: How do I properly secure the insert?
The combo pin and clamp design ensures a stable hold when properly installed in compatible holders.
Q: Does the corner radius affect cutting performance?
Yes, the 0.250 inch corner radius strikes a balance between edge strength and cutting precision.
Q: Is coolant necessary when using this insert?
Using coolant or air blasts can help increase tool life by reducing heat and clearing chips effectively.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Boost your machining performance with the TNMG543 INSERT TNMG 27 06 12 today. Stock up now and experience the smooth cuts and long-lasting durability that keeps your shop running at its best.
