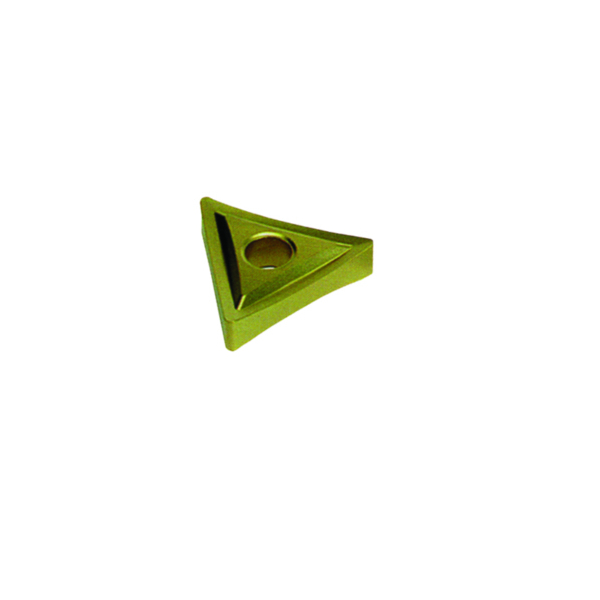

TNMG 22 04 12 Triangle Insert with Chipbreaker
Product Overview
Looking for a reliable cutting insert to enhance your metalworking projects? The TNMG 22 04 12 insert fits the bill perfectly with its robust design and precision engineering.
Ideal for machinists and industrial professionals who demand consistency, this combo pin and clamp insert offers versatility by supporting both standard and double cutting techniques.
With its triangle shape and integrated chipbreaker, this insert is built to optimize chip control and improve tool life. It’s a straightforward upgrade that'll boost your workshop’s efficiency.
Key Features
- Triangle-shaped TNMG style for precise cutting
- Combo pin and clamp design for secure and easy installation
- Supports both standard cut and double cut types
- Integrated chipbreaker enhances chip control during machining
- Thickness of 3/64" delivers durability for heavy-duty tasks
- Corner radius of 0.203" improves surface finish quality
- Half-inch inscribed circle size (1/2 I.C.) for compatibility with various tool holders
- 3/16" width ensures strength and cutting stability
- Thru hole for improved mounting stability
- Versatile use in a wide range of metal cutting applications
Specifications
- Shape / Type: TNMG Triangle Insert
- Cut Type: Carbide Insert
- Head Diameter (Inscribed Circle): 1/2 inch
- Width: 3/64 inch
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Suitable for metal cutting operations
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMG433
Trusted Durability and Consistent Precision with TNMG Inserts
This TNMG 22 04 12 insert isn't just about sharp edges and cutting power—it represents long-term value for your metalworking operation. By reducing premature tool wear and improving chip control thanks to its chipbreaker design, you spend less time swapping parts and tweaking setups during your workflow. That means fewer interruptions, a smoother production process, and more consistent results job after job. Over time, these factors lead to significant cost savings and increased profitability.
Burrs4Less: Innovation and Reliability You Can Count On
At Burrs4Less, we’ve built a reputation on quality and innovation that stands out in a crowded marketplace. Our TNMG inserts are crafted with precision and backed by decades of machining knowledge, offering tools that professionals trust nationwide. Our commitment to manufacturing proudly in the USA means you get products that meet rigorous standards while supporting local industry. Choosing our inserts means you're investing in tools that balance performance, environmental responsibility, and reliability for your everyday metalworking needs.
Case Study: Real Business, Real Results
Dallas, TX - Precision machining shop upgraded to TNMG 22 04 12 inserts for improved throughput.
"Switching to these inserts cut our setup time in half while delivering consistently smooth finishes on tough alloys. The chipbreaker design really makes a noticeable difference in controlling debris and tool wear."
Michael Stevens – Operations Manager
Boosted production efficiency by 35% within three months of use.
Why the Combo Pin and Clamp Design Makes Your Job Easier
Think of the combo pin and clamp like a secure handshake between your insert and tool holder. This dual fastening system ensures the insert stays firmly locked in place during even the most demanding cuts. It helps reduce vibrations and movement, which not only improves precision but also extends the life of both your insert and machine components. Just like how a solid grip keeps a hammer steady, this design keeps your insert exactly where it needs to be for consistent, reliable performance.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of debris before installation.
- Align the insert properly to match the pin and clamp positions.
- Secure the insert tightly using the clamp to prevent movement during operation.
- Double-check the corner radius and orientation for your specific application.
- Confirm that the thru hole is correctly seated to enhance stability.
Keeping It Going
- Regularly inspect the insert for signs of wear or chipping.
- Clean the chipbreaker areas to avoid buildup that affects performance.
- Replace inserts once cutting quality declines to maintain surface finish standards.
- Store spare inserts in a dry, organized space to prevent damage.
- Use appropriate cutting speeds and feeds to maximize insert life.
Frequently Asked Questions
Q: What materials can I use this TNMG insert on?
The TNMG 22 04 12 insert is designed primarily for metalworking, suitable for a wide range of steel and alloy materials.
Q: How do I determine if I need a standard cut or double cut insert?
Standard cuts are good for general machining, while double cuts offer smoother finishes on tougher materials.
Q: What does the chipbreaker do?
The chipbreaker helps break down metal chips during cutting to improve safety and surface finish.
Q: Can this insert fit any tool holder?
It’s designed for holders that accommodate TNMG inserts with combo pin and clamp setups; verify your equipment specs.
Q: What does '1/2 I.C.' mean?
It stands for 1/2 inch inscribed circle—the diameter of the imaginary circle touching the insert’s cutting edges, important for sizing.
Q: How important is the corner radius?
The corner radius affects the surface finish and strength of the insert’s cutting edge.
Q: Does the thru hole affect performance?
Yes, it enhances mounting stability and helps keep the insert firmly secured to the tool holder.
Q: Are these inserts made in the USA?
Yes, these inserts are proudly made in the USA to high-quality standards.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don't wait to upgrade your tool kit with the TNMG 22 04 12 insert. Order now and experience the blend of durability and precision that keeps your projects running smoothly. Stock is available and ready to ship—let's get machining!
