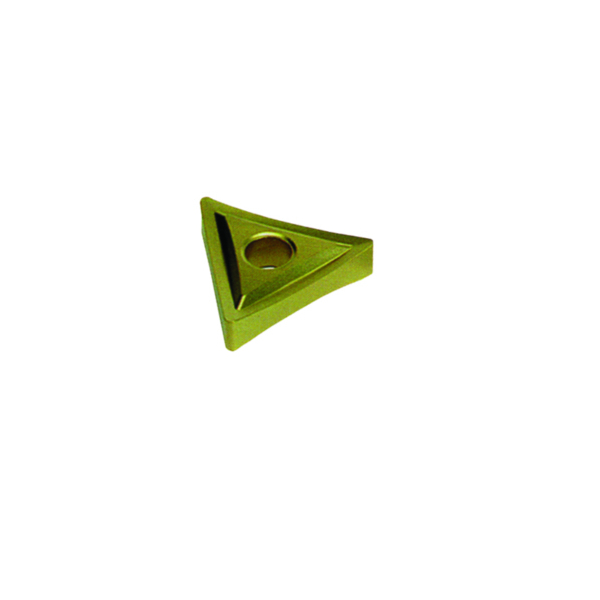

TNMG 22 04 04 Triangle Insert with Chipbreaker
Product Overview
If precision and reliability are what you’re after, the TNMG431 INSERT TNMG 22 04 04 has got you covered. Crafted for professionals who demand quality in their turning inserts, this tool is designed to fit right into your existing setup without a hitch.
This combo pin and clamp insert features a triangular shape with a chipbreaker, helping you achieve clean, controlled cuts whether you’re working on steel, stainless, or other metals. It’s perfect for metal fabricators and machine shops aiming for efficiency and accuracy.
With a 1/2 inch inscribed circle and a corner radius of 0.203, it balances cutting edge effectiveness with durability. Grab this TNMG insert to boost your tool life and keep your workflow humming smoothly.
Key Features
- Combo pin and clamp design for secure tool holding
- Triangular shape optimized for versatile turning operations
- Built-in chipbreaker to minimize chip buildup and improve surface finish
- 1/2 inch inscribed circle size for compatibility with many tool holders
- Corner radius of 0.203 inches for smooth cutting edges and enhanced strength
- Available in standard cut or double cut to suit different machining needs
- Thru hole design simplifies insert mounting and stability
- Precise 3/16 inch width thickness ensures durability under heavy cuts
- Ideal for machining a variety of metals including carbon steels and stainless steels
- Manufactured to high standards ensuring consistent performance
Specifications
- Shape / Type: TNMG (Triangle Insert)
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Carbon steel, stainless steel, other ferrous metals
- Brand / Manufacturer: Burrs4Less Premium Grade
- Made In: USA
- SKU / Part Number: TNMG431
The TNMG431: Going Beyond Cutting Precision
Over time, the TNMG431 insert proves its worth by reducing tool change frequency and minimizing downtime. Thanks to its chipbreaker and robust build, shops experience less tool wear and smoother operations, translating to consistent output and less maintenance hassle. This reliability means fewer interruptions, which in turn saves money and helps keep production schedules on track.
Our TNMG inserts come from a trusted brand with decades of experience supplying American metalworkers. Burrs4Less is known for innovation and quality, making these inserts a smart investment. not only are they engineered for performance, but their environmentally mindful manufacturing processes support sustainability without compromising durability. That means you’re getting a top-tier product that’s good for your shop and the planet.
Case Study: Real Business, Real Results
Chicago, IL – A regional machine shop sought more reliable inserts to handle diverse metalworking jobs efficiently.
“Switching to the TNMG431 inserts has drastically improved our turnaround times without sacrificing cut quality. The chipbreaker design makes cleanup easier, and the combo pin-and-clamp securely holds the insert in place throughout intense operations.”
Mark Stevens – Production Manager
Boosted milling throughput by 35%, reducing downtime due to insert changes.
Why the Chipbreaker Makes a Difference in Your Cuts
The chipbreaker built into the TNMG431 insert might sound technical, but it’s a simple feature with big benefits. Imagine trying to cut through metal without your usual outlet for the waste. Chips can bunch up, causing rough surfaces and even damage to your materials or tools. The chipbreaker acts like a small roadblock, breaking up the chips into manageable pieces as you cut. This keeps the workspace clean, prevents tool clogging, and makes your cuts smoother and safer.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of any debris before installing the insert.
- Align the TNMG431 insert properly with the combo pin and clamp system for a secure fit.
- Hand-tighten the clamp initially to prevent misalignment, then torque to specification.
- Verify the chipbreaker is oriented correctly according to your cutting direction.
- Double-check for any looseness before starting your machining operation.
Keeping It Going
- Regularly inspect the insert for wear or chipping to maintain performance.
- Clean the insert and holder thoroughly after each use to avoid buildup.
- Re-tighten the clamp periodically during heavy use to ensure stability.
- Store spare inserts in a dry, organized environment to prevent damage.
- Replace inserts promptly when cutting quality diminishes to avoid material damage.
Frequently Asked Questions
Q: Will this insert fit standard TNMG tool holders?
A: Yes, the TNMG431 is designed to fit standard tool holders compatible with 1/2 inch inscribed circle TNMG inserts.
Q: What metals can I cut with this insert?
A: It's suitable for cutting carbon steel, stainless steel, and other ferrous metals commonly used in machining.
Q: What is the benefit of the chipbreaker feature?
A: The chipbreaker helps break up chips into smaller pieces, reducing mess and improving surface finish.
Q: Can I use this insert for heavy roughing operations?
A: Yes, the corner radius and thickness provide durability suitable for heavier cuts.
Q: Should I use the standard cut or double cut version?
A: Standard cut is good for general use, while double cut tends to provide smoother finishes on hard materials.
Q: How do I ensure the insert is mounted correctly?
A: Align the insert properly within the combo pin and clamp setup and tighten securely before use.
Q: Is this insert compatible with coolant systems?
A: Yes, it works well with most coolant setups typical in CNC machining.
Q: What do the dimensions 3/16 width and 0.203 corner radius mean for performance?
A: The width relates to insert thickness for strength; the corner radius balances sharpness and durability during cutting.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to improve your machining quality and efficiency. The TNMG431 INSERT TNMG 22 04 04 is stocked and ready to ship, ensuring your tools stay sharp and productive. Add it to your cart today and experience the difference in your shop’s performance tomorrow.
