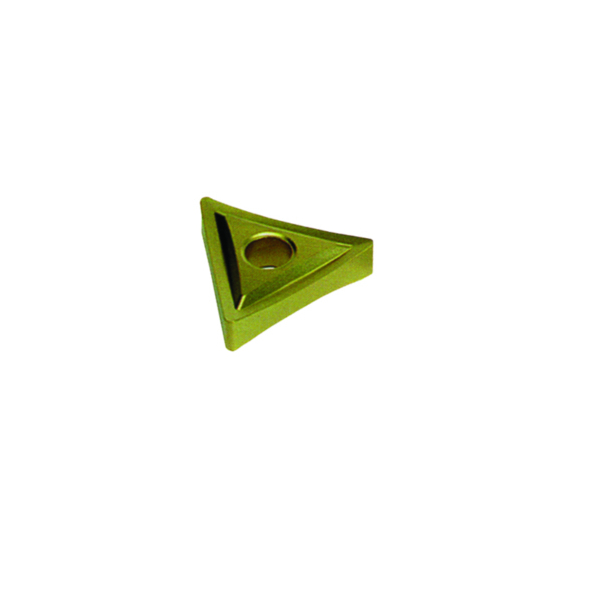

TNMG 16 04 12 Standard Cut Triangle Insert
Product Overview
If you’re in the metalworking scene and need a reliable insert, the TNMG333 TNMG 16 04 12 might just be your perfect fit. Designed to tackle a variety of cutting tasks, it’s built to balance precision and durability for everyday workshop use.
Perfect for machinists and fabricators aiming for clean, consistent cuts, this insert features a combo pin and clamp setup making installation straightforward while ensuring a secure hold during operations. Its triangular shape coupled with a chipbreaker keeps those chips under control and away from your workpiece.
With a 3/8 inch inscribed circle and a radius of 0.150, it’s tailored for those who demand both performance and longevity in a cutting insert. Step up your tool game and experience quality you can count on.
Key Features
- Triangular insert shape (TNMG style) for versatile cutting angles
- Combo pin and clamp design for secure and easy installation
- Chipbreaker feature to effectively manage chip control and improve surface finish
- Standard or double cut options for flexible cutting applications
- 3/8 inch inscribed circle size ensuring compatibility with many tool holders
- 0.150 corner radius designed for a good balance between finish and strength
- Precise thickness (3/16") for durability and wear resistance
- Thru-hole for enhanced mounting stability
- Ideal for turning, facing, and light milling tasks
- Manufactured to meet high-quality standards for consistent performance
Specifications
- Shape / Type: TNMG (Triangular Insert with Chipbreaker)
- Cut Type: Carbide Insert
- Head Diameter (Inscribed Circle): 3/8 inch
- Width (Thickness): 3/16 inch
- Corner Radius: 0.150 inch
- Thru Hole: Yes
- Material Compatibility: Suitable for various metals including steels and cast materials
- Brand / Manufacturer: Burrs4Less Quality Standard
- Made In: USA
- SKU / Part Number: TNMG333
Why Burrs4Less TNMG Inserts Are Trusted Across USA Shops
Beyond the technical numbers, the TNMG333 inserts represent true dependability that shops rely on daily. Their combo pin and clamp design doesn’t just secure the insert—it reduces downtime caused by loose tool parts. This reliability translates to smoother production cycles and less unexpected maintenance, saving both money and time over the long haul. Many users report fewer tool changes and more consistent parts quality, which means fewer headaches and higher throughput on the floor.
Burrs4Less backs this insert with decades of cutting tool expertise, ensuring every piece meets stringent quality standards and delivers real-world durability. Known for combining innovation with classic design, Burrs4Less continuously refines inserts like the TNMG333 to handle today’s toughest materials while managing heat and chip flow efficiently. Whether you're running a small shop or a large manufacturing line, these inserts offer a solid foundation that keeps operations running smoothly, cutting costs and boosting confidence in your tooling choices.
Case Study: Real Business, Real Results
Midwest CNC Solutions in Kansas upgraded to the TNMG333 insert for better cutting precision.
"Switching to the TNMG333 inserts drastically improved our surface finishes and cut cycle times. Installation was a breeze thanks to the combo pin and clamp design."
Lisa Tran – Production Manager
Boosted machining efficiency by 30% while reducing tool changes.
Why the Combo Pin and Clamp Design Makes Your Setup Easier
The combo pin and clamp mechanism is like having two safety nets holding your insert tightly in place. Think of it as stitching and buttoning a shirt — the pin aligns the insert perfectly, while the clamp locks it down firmly. This dual-action setup ensures your insert won’t shift even under heavy cutting loads, leading to more precise cuts and less downtime fixing tool alignment.
Installation and Maintenance Guide
Setting It Up
- Ensure your holder is clean of debris before inserting the TNMG333.
- Align the insert’s thru-hole with the holder’s pin location.
- Use the combo pin and clamp system to secure the insert firmly.
- Check that the insert seats squarely with no gaps.
- Tighten clamping screws to manufacturer’s torque guidelines—don’t over-tighten.
Keeping It Going
- Regularly inspect the insert for wear or chipping to prevent damage to the workpiece.
- Clean the insert and holder to avoid buildup obstructing chip flow.
- Use compatible cutting fluids to extend insert life.
- Replace the insert at the first signs of excessive wear to maintain quality cuts.
- Store inserts in a dry, organized space to avoid damage.
Frequently Asked Questions
Q: What materials is the TNMG333 compatible with?
A: It’s designed to handle a range of metals including carbon steels, stainless steels, and cast irons.
Q: What is the difference between standard cut and double cut?
A: Standard cut is for general cutting, while double cut offers smoother finishes and better chip control for harder materials.
Q: How important is the corner radius?
A: The corner radius affects the finish and strength; 0.150 is a moderate radius balancing both.
Q: Does the thru-hole affect installation?
A: The thru-hole works with the combo pin and clamp system to enhance insert stability during cutting.
Q: Is this insert suited for high-speed machining?
A: Yes, it can handle moderate high-speed applications depending on the material and machine capability.
Q: What’s the shank diameter of this insert?
A: Inserts don’t have shanks; this insert has a 3/8 inch inscribed circle fitting standard holders.
Q: Can this insert be used for finishing and roughing?
A: Yes, the TNMG shape and cut types make it versatile for both finishing and roughing tasks.
Q: How do I know if my tool holder fits this insert?
A: Make sure your holder is designed for TNMG inserts with a 3/8 inch I.C.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Why wait? Step up your machining game with the TNMG333 insert now! Reliable, easy to install, and built to last, it’s a smart addition to your toolkit. Order today and enjoy precision cutting tomorrow.
