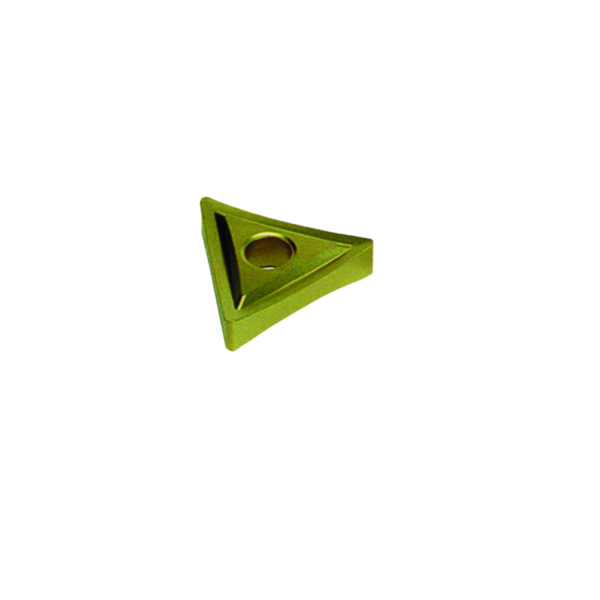

TNMG 16 03 04 Triangle Insert with Chipbreaker
Product Overview
Looking for a reliable cutting insert that delivers precision and durability? The INSERT TNMG 16 03 04 is designed for professional machinists who demand consistency in their metalworking tasks. Its combo pin and clamp design ensures secure placement for accurate cuts every time.
Specifically crafted in a triangular shape with a chipbreaker, this insert efficiently controls chip flow to enhance cutting performance. Whether you're tackling tough metals or fine finishes, this insert stands up to the challenge without skipping a beat.
With a versatile cut type option—standard or double cut—and an easy-to-use thru-hole design, it’s a great fit for various machining setups. Ready to improve your cutting process? This insert is a dependable choice that professionals trust.
Key Features
- Triangular shape optimized for stability and precision
- Combo pin and clamp design for secure mounting
- Incorporated chipbreaker to control and direct chips efficiently
- Available in standard or double cut options for versatile applications
- 3/8 inch inscribed circle (I.C.) size suitable for many tool holders
- 0.150 inch corner radius for smooth edge finishes
- 1/8 inch width thickness ensures durability and strength
- Thru-hole design allows easy installation and setup
- Compatible with a wide range of materials
- Manufactured with precision for consistent repeat performance
Specifications
- Shape / Type: Triangle with Chipbreaker
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 3/8 inch
- Shank Diameter (Width): 1/8 inch
- Corner Radius: 0.150 inch
- Overall Length: not Applicable (Insert)
- Material Compatibility: Suitable for Various Metals
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TNMG321
The Burrs4Less Promise: Trusted Precision Every Time
When you invest in the INSERT TNMG 16 03 04, you're not just buying an insert—you’re getting the assurance of Burrs4Less’s dedication to quality and consistency. Manufactured in the USA, this insert offers outstanding longevity, meaning fewer tool changes and less downtime for your operations. Over time, this translates to real cost savings and a smoother workflow experience, especially in demanding industrial environments.
Our inserts benefit from decades of combined innovation and rigorous testing under real-world conditions. The chipbreaker design not only boosts performance but also promotes safer and cleaner machining by directing chips away effectively. This balance of durability, efficiency, and safety has earned Burrs4Less a trusted reputation among metalworking professionals nationwide.
Case Study: Real Business, Real Results
Orlando, Florida-based Precision Parts upgraded their tooling inserts to improve efficiency in high-volume runs.
"Switching to the INSERT TNMG 16 03 04 was the best decision we made this year. The chipbreaker feature significantly reduced downtime for cleaning and gave our finishes a much cleaner edge."
Robert Whitman – Production Manager
Increased output by 35% while reducing insert replacement frequency by 20%.
How the Chipbreaker Enhances Your Cutting Process
Chipbreakers might sound technical, but think of them like the grooves on a car tire that prevent slipping. In cutting tools, a chipbreaker helps control the way metal shavings break and flow away from the cut. Instead of long, tangled curls that can gum up your machine, chips come off in neat, manageable pieces. This reduces heat and tool wear, just like how good tires keep your ride smooth and safe. By keeping your workspace cleaner and your insert running cooler, the chipbreaker helps you get the job done faster and with better results.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is compatible with TNMG 3/8 inch inserts.
- Clean the clamp and pin areas to remove debris for secure fit.
- Position the insert so the chipbreaker faces the correct chip flow direction.
- Tighten the clamp securely but avoid overtightening to prevent damage.
- Double-check alignment to maintain cutting precision.
Keeping It Going
- Inspect inserts regularly for wear or chips to replace when needed.
- Use proper coolant or lubrication to minimize heat buildup during cutting.
- Clean chips and dust from insert and holder after every shift.
- Store unused inserts in a dry, organized place to prevent damage.
- Follow machine manufacturer guidelines for speeds and feeds.
Frequently Asked Questions
Q: What materials can this TNMG insert be used on?
This insert is suitable for a variety of metals commonly used in machining, including steel, stainless steel, and cast iron.
Q: How does the chipbreaker affect cutting performance?
The chipbreaker helps manage the flow and breakage of metal chips, reducing heat and prolonging the insert’s life.
Q: Can I use this insert in any tool holder?
You need a compatible tool holder designed for 3/8 inch inscribed circle TNMG inserts with a combo pin and clamp setup.
Q: What's the difference between standard cut and double cut options?
Standard cuts provide general-purpose performance, while double cuts offer smoother finishes and better chip control.
Q: How do I install the insert properly?
Clean the holder, position the insert with the chipbreaker oriented properly, then securely tighten the clamp without overdoing it.
Q: Is the corner radius customizable?
This model has a fixed 0.150 inch corner radius, optimized for balanced performance and finish quality.
Q: Can I use coolant with this insert?
Yes, using coolant is recommended to reduce heat build-up and prolong tool life.
Q: How often should I replace the insert?
Replace inserts when you notice decreased cutting performance or visible wear and chipping.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let subpar inserts slow your workflow. Add the INSERT TNMG 16 03 04 to your toolkit today and experience the precision and durability professionals rely on. Order now and keep your cutting performance sharp and steady!
