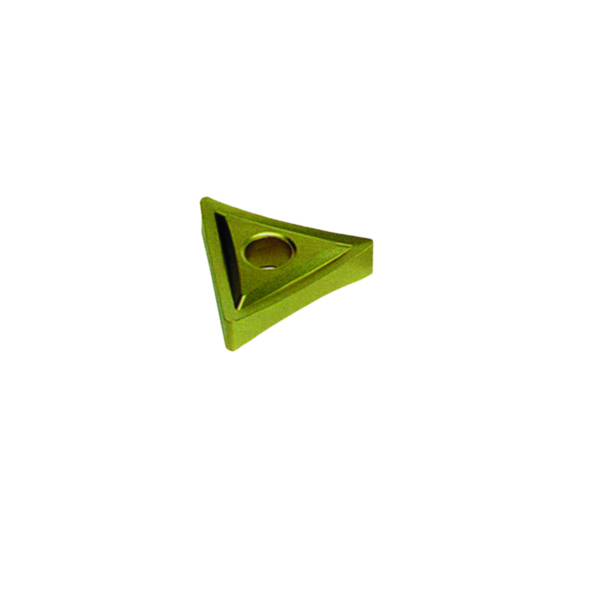

TNMG 11 03 04 Triangle Insert with Chipbreaker
Product Overview
Meet the INSERT TNMG 11 03 04, a precise and reliable cutting insert designed for metalworking professionals who demand quality and consistency. This insert fits perfectly into standard tool holders, making it a versatile choice for various machining tasks.
If you're tackling projects that require accuracy and durability, this TNMG-style insert with its combo pin and clamp design ensures secure mounting and optimal performance. The triangular shape with chipbreaker helps improve chip control, reducing downtime and improving finish quality.
With a corner radius of 0.093 and multiple cut type options, this insert offers flexibility for a range of cutting operations. Whether you’re refining details or taking on tougher materials, the TNMG221 INSERT is built to deliver dependable results every time.
Key Features
- Standard or Double Cut options available for versatile machining.
- Combo pin and clamp style for secure tool holder attachment.
- Triangular shape (TNMG style) offering multiple cutting edges per insert.
- Chipbreaker designed for efficient chip removal, improving surface finish.
- 1/4 inch inscribed circle size ensures compatibility with common holders.
- Corner radius of 0.093 inch balances strength and fine detail capability.
- Thru hole design for robust mounting and stability during cutting.
- High dimensional accuracy for repeatable, consistent results.
- Manufactured for long-lasting wear resistance in various materials.
- Easy indexable design reduces downtime when rotating or replacing inserts.
Specifications
- Shape / Type: Triangular (TNMG Style)
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/4 inch
- Width: 1/8 inch
- Corner Radius: 0.093 inch
- Thru Hole: Yes
- Mounting Style: Combo Pin and Clamp
- Chipbreaker: Yes
- SKU / Part Number: TNMG221
Trusted Durability and Consistent Performance for Your Workshop
When you’re running a busy shop, tool reliability goes beyond just specs. The INSERT TNMG 11 03 04 offers a balance of strength and finesse that keeps your operations smooth day after day. Thanks to its combo pin and clamp mount system, it minimizes insert shifting, which means fewer scrapped parts and less rework. The chipbreaker design not only controls chips efficiently but also helps maintain cooler cutting conditions, preserving both the insert and your workpiece. Over time, this translates to less downtime and a steady workflow that professionals can count on.
Innovation Backed by Proven Quality
Burrs4Less partners with leading manufacturers to bring you inserts that meet rigorous industry standards. The TNMG line is recognized for its thoughtful engineering, meticulously crafted to deliver precision and endurance. With attention to environmentally responsible production and material efficiency, these inserts support sustainable operations without sacrificing performance. Investing in these inserts means trusting a product with a solid reputation, designed to keep your machining as efficient and cost-effective as possible.
Case Study: Real Business, Real Results
Seattle-based Precision Machining Inc. upgraded their tooling inserts to boost productivity on intricate part jobs.
"Switching to the TNMG221 inserts has significantly improved our machining accuracy and reduced tool change downtime. The chipbreaker design keeps operations cleaner and our quality really shines through."
Michael Jensen – Production Manager
Results included a 35% increase in throughput and enhanced surface finishes on complex components.
How the Combo Pin and Clamp Design Enhances Stability
The combo pin and clamp mounting style might sound technical, but it simply means your insert stays put even under tough conditions. Think of it like a seatbelt and airbag combo for your cutting edge—keeping it securely locked in place while giving a little bit of flexibility to avoid damage. This ensures consistent cuts and reduces the risk of insert movement that could ruin your workpiece or wear your tool prematurely.
Installation and Maintenance Guide
Setting It Up
- Ensure tool holder matches the 1/4 inch inscribed circle size.
- Clean the holder and insert seat before placement to avoid debris interference.
- Carefully align insert so the pin and clamp lock it securely.
- Tighten clamp screws following manufacturer torque recommendations.
- Check insert seating to avoid any gaps or misalignment.
Keeping It Going
- Inspect inserts regularly for wear or chipping.
- Rotate or replace inserts promptly to maintain cutting quality.
- Keep chipbreakers and tool seats clean for smooth chip flow.
- Store inserts in a dry, dust-free environment to prevent corrosion.
- Use appropriate cutting fluids to extend insert life and reduce heat.
Frequently Asked Questions
Q: What materials can I machine with these TNMG inserts?
A: They work well on steel, stainless steel, cast iron, and some non-ferrous metals, depending on the cut type.
Q: Are both Standard Cut and Double Cut inserts interchangeable?
A: Yes, but each cut type is optimized for different surface finishes and chip control.
Q: What does the corner radius affect in machining?
A: It influences edge strength and cut smoothness—bigger radius for durability, smaller for detail.
Q: How do I know my tool holder fits a 1/4 inch inscribed circle insert?
A: Check your holder specifications for compatibility with TNMG 16 inserts (1/4" size).
Q: Does the chipbreaker help with heat management?
A: Yes, it improves chip flow which reduces friction and heat buildup during cutting.
Q: Can I reuse the inserts by flipping them?
A: Yes, the triangular shape allows rotating the insert to use new cutting edges.
Q: How tight should the clamp screw be?
A: Tighten firmly but avoid over-torquing to prevent damage to the insert or holder.
Q: What is the benefit of the thru hole in this insert?
A: It offers extra stability and secure mounting during heavy or precision operations.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let downtime slow your productivity—grab the INSERT TNMG 11 03 04 today and experience smooth, consistent cuts on every job. Stock up now and keep your shop running at top efficiency with Burrs4Less’ trusted quality.
