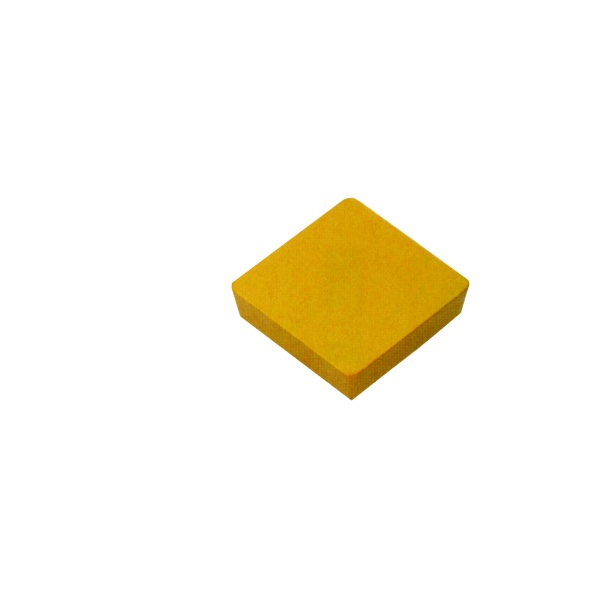

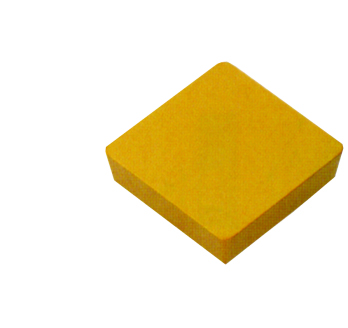

SPGN 15 04 12 Double-Sided Clamp Style Insert
Product Overview
If you're looking to upgrade your metal turning process, this SPG533 SPGN 15 04 12 Insert is just the ticket. It's designed specifically for professionals who demand reliable, precise cutting performance in their tooling setup.
This clamp style insert features double-sided use with a square ground top and bottom, engineered for smooth, problem-free chip formation. Perfect for machinists who appreciate quality and consistency in their turning operations.
Durability and efficiency come together in this insert, making it a must-have for anyone tackling metalworking projects that require superior results with less hassle. Step up your machining game with a tool designed to deliver every time.
Key Features
- Clamp style insert for secure mounting and stability
- Double-sided design doubles the lifespan of the insert
- Square ground top and bottom for consistent cutting edge integrity
- Optimized for clean, trouble-free chip formation
- 5/8 inch inscribed circle for versatile compatibility
- 3/16 inch width for precise cutting applications
- Corner radius optimized at 3/64 inch for sharp and accurate cuts
- Thru hole design for easy and secure attachment
- Ideal for turning operations on various metals
- Built to help reduce downtime and tooling costs
Specifications
- Shape / Type – Clamp Style Insert
- Cut Type – Carbide Insert
- Inscribed Circle (I.C.) – 5/8 inch
- Width – 3/16 inch
- Corner Radius – 3/64 inch
- Design – Double Sided, Square Ground Top and Bottom
- Thru Hole – Yes
- Material Compatibility – Metals (various)
- Brand / Manufacturer – SPG
- Made In – USA
- SKU / Part Number – SPG533
SPG Inserts: A Strong Investment for Long-Term Performance
Beyond just fitting your tool holder, SPG inserts like the SPG533 stand out because they reduce downtime and maintenance costs in the long haul. Thanks to the double-sided design, you get twice the cutting edges without needing extra inserts. This means less frequent changes and fewer interruptions. Also, the robust clamp style attachment keeps the insert steady, lowering the chances of tool holder wear or misalignment. Over time, that means smoother cuts, less scrap, and savings that add up for any metalworking business aiming for consistency.
SPG has built a reputation for reliable inserts that meet tough industry demands. Their innovative design ensures optimal chip flow and cutting precision, keeping shops compliant with operational standards while boosting productivity. Moreover, the materials and manufacturing quality used in these inserts help reduce wasted energy and improve tool life cycles, making them a smart and responsible choice for businesses looking to balance performance and environmental impact.
Case Study: Real Business, Real Results
Houston, Texas: A metal fabrication shop upgraded their turning inserts to improve precision and reduce chip-related issues.
"Switching to the SPG533 inserts has noticeably improved our workflow with cleaner cuts and less downtime for clearing chips. The double-sided design has also stretched our tooling budget further."
Maria Thompson – Production Manager
Increased turning efficiency by 35%, leading to faster project completion times.
How the Double-Sided Design Ensures Longer Use and Less Waste
Imagine having a pair of shoes where both soles can be swapped and worn equally – you get twice the mileage before needing a replacement. That’s exactly how this double-sided insert works. when one cutting edge wears out, simply flip the insert to the other side, cutting the downtime and cost of tool replacement in half. This design not only saves money but also keeps your machine running smoother by providing consistently sharp edges for your metal turning jobs.
Installation and Maintenance Guide
Setting It Up
- Ensure the spindle or tool holder is clean before installation to avoid misalignment.
- Insert the SPG533 securely into the clamp style holder, making sure it sits flush.
- Use the thru hole to fasten the insert tightly to prevent any movement during operation.
- Check that the double-sided insert is oriented correctly for your specific turning task.
- Verify tool alignment by running a test cut before starting full production.
Keeping It Going
- Inspect the insert edges regularly for wear and chip buildup.
- Flip the insert when one side dulls to maximize tool lifespan.
- Keep the tool holder and clamp area free of debris to ensure proper seating.
- Replace the insert when both sides show significant wear or damage.
- Clean the insert with a soft brush and approved solvent after use to prevent corrosion.
Frequently Asked Questions
Q: Is the SPG533 insert compatible with all turning tools?
The insert is designed for clamp style holders matching the 5/8 inch inscribed circle and 3/16 inch width, so compatibility depends on your tool holder specifications.
Q: Can both sides of the insert be used equally?
Yes, the double-sided design allows you to flip the insert and use both sides for twice the lifespan.
Q: What metals is this insert suitable for?
It is optimized for various metal types commonly machined in turning operations, but check your specific metal requirements.
Q: What does the corner radius mean for cutting?
The 3/64 inch corner radius affects the sharpness and finish of the cut, balancing precision and durability.
Q: How do I properly secure this insert?
Use the thru hole and clamp holder to firmly fasten the insert, ensuring no movement during operation.
Q: Can worn inserts be sharpened?
Typically, these inserts are replaced rather than sharpened to maintain optimal performance.
Q: Does the insert reduce chip build-up?
Yes, the square ground top and bottom design helps form chips cleanly for smoother operation.
Q: How often should I flip the insert?
Flip the insert once you notice dulling or decreased cutting quality on one side to maximize lifespan.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
