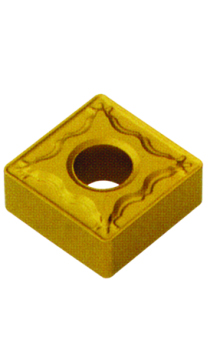

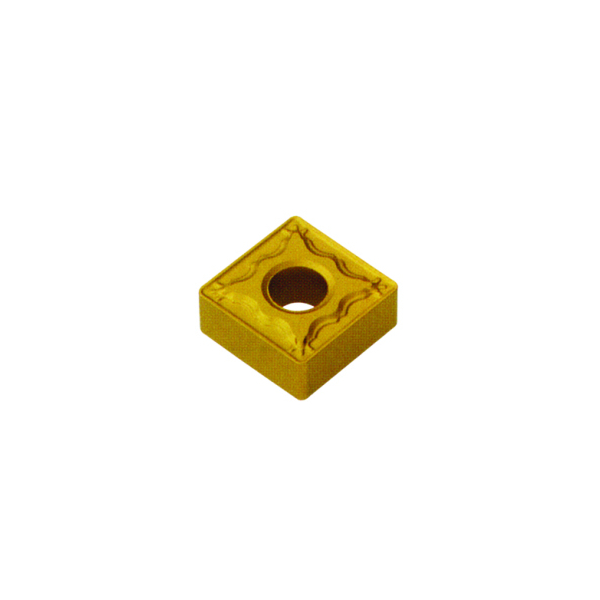

SNMG 12 04 04 Combo Pin Clamp Insert
Product Overview
Looking for a reliable insert that handles medium to heavy cuts with ease? The SNMG 12 04 04 insert fits perfectly into various applications, making metalworking tasks smoother and more precise.
This double-sided combo pin and clamp insert is designed to excel on a wide range of materials, whether you're working with steel, cast iron, or non-ferrous metals. Pros who need durability and versatility will appreciate its robust design.
With a corner radius of .203 and a thru hole for secure mounting, this insert brings top-of-the-line performance and longevity to your cutting operations. It’s an essential addition to your tooling lineup for getting consistent results.
Key Features
- Double-sided combo pin and clamp design for secure fit
- Standard cut or double cut options for varied material needs
- 1/2 inch inscribed circle (I.C.) diameter for versatile mounting
- 3/16 inch width provides robust cutting edge
- .203 inch corner radius for smooth finish and reduced wear
- Thru hole for strong, stable attachment during operation
- Capable of medium to heavy cutting applications
- Compatible with a broad range of materials including steels and cast irons
- Durable design suited for repetitive use and tough conditions
- Reversible sides maximize lifespan and reduce tool change downtime
Specifications
- Shape / Type – SNMG
- Cut Type – Carbide Insert
- Head Diameter (Inscribed Circle) – 1/2 inch
- Width – 3/16 inch
- Corner Radius – .203 inch
- Thru Hole – Yes
- Material Compatibility – Steels, Cast Iron, Non-ferrous metals
- Brand / Manufacturer – Burrs4Less
- Made In – USA
- SKU / Part Number – SNMG431
Why Burrs4Less SNMG Inserts Stand Out in Your Workshop
When investing in tooling like the SNMG 12 04 04 inserts, it’s about more than just specs—it’s about long-term value. These inserts help reduce frequent tool changeovers thanks to their double-sided design and durable build, which means less downtime and more consistent production. Over time, this reliability translates into fewer interruptions, lower maintenance costs, and steadier output, giving your shop an operational edge that really counts during busy runs.
Burrs4Less has a rich history of supplying quality carbide tooling designed right here in the USA. Our inserts follow rigorous quality standards recognized across the metalworking industry. Plus, their efficiency isn’t just about performance—it’s also about sustainability: longer-lasting inserts mean less frequent replacements and less waste, supporting greener operations while keeping your cost per part down. This combination of durability, consistency, and responsible design makes them a dependable choice for professionals.
Case Study: Real Business, Real Results
Detroit, Michigan shop upgraded their inserts to increase throughput on heavy-duty cast iron parts.
"Switching to the SNMG 12 04 04 inserts made a noticeable difference in cutting efficiency and tool life. We cut down our tool change time and improved edge finish on tough components."
Lisa M. – Production Manager
Boosted machine uptime by 30% and reduced scrap rate by 15%.
Why the Double-Sided Design Matters in Your Inserts
The SNMG insert's double-sided construction means it essentially gives you two cutting edges for the price of one. Imagine having a reversible spoon—you use one side, then flip it over when it gets dirty, doubling the usage before needing a replacement. This design not only stretches how often you can use the insert but also keeps your operations running longer without interruption. For the busy shop floor, this means less downtime swapping tools and more work done.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder matches the SNMG insert size (1/2 inch I.C.).
- Clean the insert and holder seating area to prevent misalignment.
- Place the insert securely using the combo pin and clamp system.
- Use appropriate torque on clamp screws to avoid slippage.
- Verify insert orientation to utilize the double-sided feature effectively.
Keeping It Going
- Regularly inspect the insert for wear or chip damage.
- Flip the insert to the unused side when one edge dulls.
- Keep cutting tools lubricated and clean to extend life.
- Avoid excessive cutting speeds that can overheat and degrade the insert.
- Store inserts in a dry, protected area to prevent corrosion.
Frequently Asked Questions
Q: Can I use the SNMG 12 04 04 insert on all types of metals?
A: Yes, this insert is versatile and designed for a wide range of materials including steels and cast irons.
Q: What does double-sided mean for this insert?
A: Double-sided means you get two cutting edges on one insert, effectively doubling its usage before replacement.
Q: How do I know if I should use standard cut or double cut?
A: Standard cut is good for general use; double cut offers smoother cuts on tougher materials.
Q: Is the thru hole necessary?
A: Yes, the thru hole allows for a secure and stable clamp connection to the tool holder.
Q: What is the corner radius for and why does .203 matter?
A: The corner radius affects the finish and strength of the cut; .203 is a balanced size allowing smooth cutting and durability.
Q: Can these inserts be flipped after one side wears out?
A: Absolutely, they are designed for reversible use to maximize lifespan.
Q: Do I need special tools to install the SNMG insert?
A: No special tools are necessary, just ensure proper torque on the clamp screws for secure fitting.
Q: Are these inserts compatible with my existing tooling?
A: If your tool holders are designed for SNMG 12 size inserts, these will fit perfectly.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don't wait to upgrade your tooling setup with the SNMG 12 04 04 insert. Whether you're tackling heavy cuts or diverse materials, this insert is built for dependable performance. Order yours today and experience smoother, longer-lasting cutting power!
