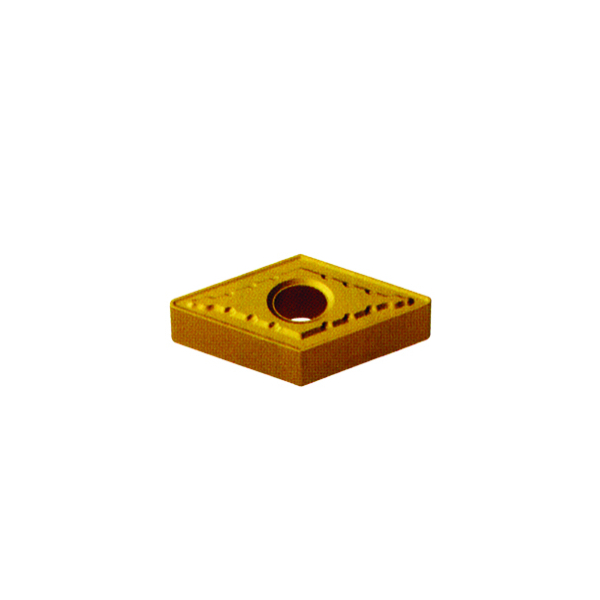

DNMG 15 04 12 Insert with Combo Pin and Clamp
Product Overview
If you're tackling precision metalwork, the INSERT DNMG 15 04 12 is engineered to be your go-to cutting insert. It’s perfect for machinists and metalworking pros who demand accuracy and reliability in their tools.
Designed with a combo pin and clamp style, this DNMG insert handles a variety of materials smoothly, making your cutting jobs easier and more consistent.
With a 1/2 inch inscribed circle and a sharp 0.203 corner radius, this insert offers the precision edge you need to elevate your machining results every time.
Key Features
- Combo pin and clamp type design for secure mounting
- Standard or double cut options for versatile usage
- 1/2 inch inscribed circle for stability and precision
- Corner radius of 0.203 inches to ensure smooth cutting edges
- Thru hole for easy installation and alignment
- Suitable for a wide range of materials and applications
- Compact 3/16 inch width for fine detail work
- Durable construction for long tool life and consistent performance
- Compatible with various tool holders in the DNMG family
- Manufactured for tight tolerances to maintain high precision
Specifications
- Shape / Type: DNMG Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 1/2 inch (0.500)
- Width: 3/16 inch (0.1875)
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Wide range (steel, stainless, cast iron, etc.)
- Brand / Manufacturer: Burrs4Less Authorized
- Made In: USA
- SKU / Part Number: DNMG433
DNMG Inserts: Boosting Productivity and Precision in Your Shop
Beyond their technical specifications, DNMG inserts like the 15 04 12 play a vital role in improving your shop’s overall efficiency. Their secure combo pin and clamp design reduces the frequency of tool swaps and errors caused by insert movement, which means less downtime and more consistent production runs. This translates into real cost savings and better quality control, especially for shops with tight tolerances or high-volume manufacturing schedules.
Choosing inserts from a trusted brand like Burrs4Less also means investing in proven performance backed by industry expertise. Our DNMG inserts are crafted with precision tolerances and materials to endure daily rigors while reducing the frequency of unexpected breakdowns. Plus, the design supports coolant delivery through the thru hole, improving energy efficiency by lowering thermal stress on tools. In practice, this means longer tool life, consistent machining quality, and ultimately a smoother workflow that keeps your business competitive.
Case Study: Real Business, Real Results
Houston, TX - Upgrading machining inserts for a mid-sized fabrication shop.
"Switching to the DNMG 15 04 12 inserts has noticeably improved the finish quality on our stainless steel parts and reduced tool change downtime immensely."
Lisa Martinez – Shop Supervisor
Increased output efficiency by 30% while maintaining tighter tolerances on complex parts.
Why the Combo Pin and Clamp Design Matters for Your Cutting Inserts
This DNMG insert uses a unique combo pin and clamp system that locks the tool securely in place during high-speed machining. Think of it like a seatbelt for your insert – it keeps things firmly steady no matter how intense the operation, preventing slippage and ensuring consistent cuts. This means you get crisp edges and fewer interruptions for re-clamping, saving you valuable shop time.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of debris before inserting the DNMG insert.
- Align the combo pin carefully with the matching holes on the holder for a proper fit.
- Secure the insert by tightening the clamp firmly, avoiding over-tightening which can damage the tool.
- Double-check that the insert sits flush and stable before beginning cutting operations.
- Use proper protective equipment to keep safe during setup.
Keeping It Going
- Regularly inspect inserts for wear or chips to maintain cutting performance.
- Clean inserts and tool holders after use to prevent buildup affecting fit.
- Replace inserts promptly at the first sign of dullness to keep cuts crisp.
- Store inserts in a safe, dry place to avoid corrosion or damage.
- Use manufacturer-recommended lubricants to prolong tool life.
Frequently Asked Questions
Q: What materials can I machine with the DNMG 15 04 12 insert?
The insert is designed to work with a wide range of materials including steel, stainless steel, and cast iron.
Q: What is the difference between standard cut and double cut?
Standard cut inserts have a single cutting edge pattern ideal for general machining, while double cut provides faster chip removal and smoother finishes on certain materials.
Q: Can this insert fit any DNMG tool holder?
It fits tool holders designed for combo pin and clamp type DNMG inserts, but always verify holder specifications for compatibility.
Q: How do I know when to replace the insert?
Replace once you see signs of dull edges, decreased surface finish quality, or chipping.
Q: Is the corner radius of 0.203 suitable for fine finishing?
Yes, a 0.203 inch corner radius balances durability and smooth finish for many machining tasks.
Q: What tools do I need for installation?
Typically, a torque wrench or standard tool holder tightening tool is enough to secure the combo clamp insert.
Q: Does the thru hole help with coolant delivery?
Yes, the thru hole can assist coolant flow to the cutting edge, helping reduce heat and extending insert life.
Q: Are inserts shipped individually or in packs?
Check product packaging details—both single inserts and multi-packs are commonly available.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Ready to sharpen up your machining game? Order the INSERT DNMG 15 04 12 today and experience reliable cuts and exceptional tool stability. Stock is available now—let’s get your shop running smoother and more efficiently!
