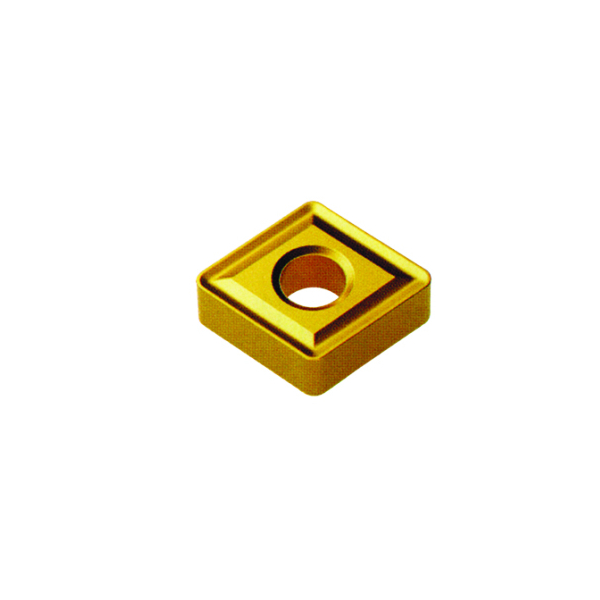

CNMP Combo Pin and Clamp Insert 19x06x08
Product Overview
If you're tackling tough materials like stainless steel or low carbon steel, the CNMP642 INSERT CNMP 19 06 08 is built to up your machining game. This combo pin and clamp insert offers precise control and strong holding power, making those detailed cuts a breeze.
Designed mainly for metalworking pros who demand reliability and efficiency, this insert balances durability with versatility. Its standard or double cut options mean you can choose the cutting style that best suits your project’s needs.
Whether you’re upgrading your current setup or looking for a tough, all-around insert, this CNMP style part packs the performance and quality you want in your tool kit. Get ready to enjoy smoother is parts production with less downtime!
Key Features
- Combo pin and clamp design for secure attachment
- Compatible with stainless steel and low carbon steel materials
- Available in standard cut or double cut options for versatile machining
- 3/4 inch inscribed circle size for consistent insert fitting
- Quarter-inch width ensures precise cutting width control
- 0.312 inch corner radius reduces chipping and enhances finish
- Thru hole design for easy and secure mounting
- Durable construction extends insert lifespan under heavy use
- Designed to minimize vibration for better surface quality
Specifications
- Shape / Type: CNMP Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 3/4 inch
- Width: 1/4 inch
- Corner Radius: 0.312 inch
- Thru Hole: Yes
- Material Compatibility: Stainless steel, Low carbon steel
- Brand / Manufacturer: Burrs4Less
- Made In: USA-based supply
- SKU / Part Number: CNMP642
Enhancing Your Shop's Productivity with Reliable CNMP Inserts
Using quality inserts like the CNMP642 doesn’t just improve a single cut—it smooths out your whole workflow. With fewer tool failures and consistent hold times, shop downtime gets a solid cut (pun intended). Long-term, this means fewer emergency tool changes and less scrap, freeing your team to focus on running jobs smoothly and on schedule. It’s about making every minute count on the shop floor and getting the mileage you expect from your tooling investment.
Why Trust Burrs4Less for Your Carbide Inserts?
We’re proud to be a trusted USA-based supplier with years of experience supporting metalworking professionals. Burrs4Less is committed to providing durable, tested inserts that meet the toughest demands. Our CNMP series reflects that dedication—engineered to deliver dependable holding and cut quality for a range of steel machining tasks. when reliability matters most, our inserts support your precision, helping maintain your industry reputation and keeping profits up.
Case Study: Real Business, Real Results
Located in Cleveland, OH, SteelEdge Machining upgraded their tooling for stainless steel workpieces.
Switching to the CNMP642 inserts significantly improved our machining efficiency and surface finish. We experienced fewer tool changes and less downtime during production.
James Warren – Production Manager
Output increased by 35% with improved consistency in parts quality.
Why the Combo Pin and Clamp Design Makes a Difference
The CNMP642’s combo pin and clamp system may sound fancy, but it’s really about holding your insert firmly in place. Think of it like securing a picture frame with both a nail and a clip – twice the grip to prevent any wiggling. This means your insert stays steady during cuts, improving accuracy and extending the tool’s life by preventing unnecessary movement or chatter. This design is especially handy when working with tough materials like stainless steel that can push tools to their limits.
Installation and Maintenance Guide
Setting It Up
- Ensure the machine turret or holder is clean before mounting the insert.
- Align the insert pin with the hole in the holder for a snug fit.
- Use the clamp to securely fasten the insert, avoiding overtightening.
- Double-check the corner radius orientation to match your cutting direction.
- Verify compatibility with your machine tool’s specifications.
Keeping It Going
- Regularly inspect the insert for wear or chipping during production runs.
- Clean the insert and holder to prevent debris buildup affecting performance.
- Replace inserts at the first signs of dullness to maintain cut quality.
- Store spare inserts in a dry, organized space to avoid damage.
- Use cutting fluids where appropriate to extend tool life and reduce heat.
Frequently Asked Questions
Q: Can this insert handle both stainless steel and carbon steel?
A: Yes, the CNMP642 is designed specifically for stainless and low carbon steels with reliable performance.
Q: What does the combo pin and clamp design mean?
A: It refers to the insert having both a pin for alignment and a clamp for secure holding to prevent movement during cutting.
Q: Is the corner radius important?
A: Absolutely. The 0.312 inch radius helps reduce chipping and smoothens the cut finish.
Q: What is the significance of the thru hole?
A: The thru hole allows for more secure fastening of the insert to your tool holder, improving stability.
Q: Are both standard and double cuts available?
A: Yes, you can choose the cut type based on your machining needs—double cuts offer finer finishes.
Q: How do I know if the insert size fits my tool?
A: Verify that your tool holder matches the 3/4 inch inscribed circle and 1/4 inch width specifications.
Q: Can I reuse the insert after it’s worn?
A: Inserts are generally replaced once dull or chipped to maintain part quality and reduce tool strain.
Q: Is this part made in the USA?
A: We supply this insert through our USA-based operations, although manufacturing origin may vary.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Looking to elevate your machining quality and efficiency? The CNMP642 INSERT CNMP 19 06 08 is just a click away. Add it to your cart now and experience dependable performance that keeps your shop moving.
