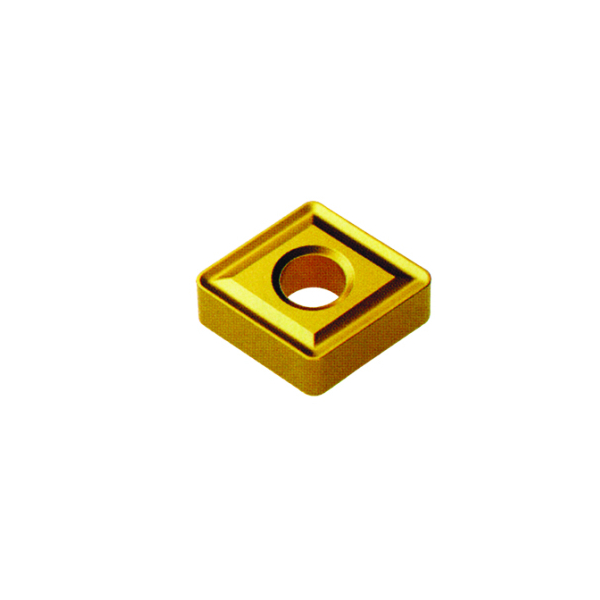

Combo Pin Clamp Insert CNMP 12 04 12
Product Overview
If you’re hunting for a reliable carbide insert that can handle both stainless steel and low carbon steel, the CNMP433 INSERT CNMP 12 04 12 is designed just for you. It’s a smart pick for machinists and metalworking pros who want a combo pin and clamp insert that won’t let them down.
This insert features a 1/2 inch inscribed circle and a 3/16 inch width, with a precise 3/64 corner radius to make your machining tasks smooth and efficient. Whether you’re upgrading your tooling or stocking up for varied projects, this versatile insert fits right in.
With its standard or double cut options, the CNMP433 offers flexibility that caters to different cutting needs, delivering consistent performance and excellent surface finishes. Ready to step up your machining game? This insert has got you covered.
Key Features
- Combo pin and clamp design for secure fitting
- Compatible with machining stainless steel and low carbon steel
- 1/2 inch inscribed circle for standard sizing
- 3/16 inch width for balanced cutting stability
- 3/64 inch corner radius for precise edge finish
- Options available in standard or double cut for application flexibility
- Durable construction for extended tool life
- Ideal for use in both roughing and finishing operations
- Reliable performance on a range of metal types
- Easy to install and replace for minimized downtime
Specifications
- Shape / Type: CNMP Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Inscribed Circle (I.C.): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 3/64 inch (0.203 inch thru hole)
- Material Compatibility: Stainless Steel, Low Carbon Steel
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: CNMP433
Long-Term Value and Efficiency with Burrs4Less CNMP Inserts
Choosing the CNMP433 insert brings more than just immediate cutting precision—it’s an investment in reducing downtime and maintenance headaches. Its robust construction and superior insert retention mean fewer replacements and less disruption on your machining line, saving you both time and money in the long haul. Consistency in quality supports your shop’s reputation and helps you deliver parts that meet tight tolerances every time.
Trusted Innovation and Industry Proven Reliability
Burrs4Less stands tall in the metalworking community because of its dedication to blending innovation with practical durability. Our CNMP series is no exception—engineered here in the USA and refined for American industry needs, these inserts address real-world challenges with thoughtful design. Their energy-efficient cutting performance also means extended machine life and reduced waste, making them a choice that’s smarter for your business and the environment.
Case Study: Real Business, Real Results
Springfield, Illinois metal fabrication shop updated their tooling to improve durability machining tough stainless steel alloys.
"Since switching to the CNMP433 inserts, our machining cycles have become noticeably smoother, with less tool changes necessary. The quality of our finishes has also improved dramatically, saving us time on rework."
Mike Lawson – Plant Manager
Reduced tooling downtime by 30% and improved part quality metrics.
How the Combo Pin and Clamp Insert Design Boosts Your Machining Precision
The combo pin and clamp setup on this CNMP insert is like having a two-part seatbelt system for your cutting tool—double the grip and stability. It ensures the insert stays firmly in place even under heavy cutting pressure. Think of it as securing a foothold on slippery terrain; you want it locked tight to avoid slips. This stability helps maintain consistent cutting angles, improves surface finish, and extends tool life, which means fewer interruptions on the shop floor.
Installation and Maintenance Guide
Setting It Up
- Ensure the insert seat and clamp assembly are clean before installation.
- Place the CNMP433 insert carefully with the pin fitting snugly into its position.
- Secure the clamp firmly to avoid any movement during operation.
- Verify that the insert corner radius matches your machining requirements.
- Check compatibility with your machine tool holder to guarantee proper fit.
Keeping It Going
- Regularly inspect the insert for signs of wear or chipping.
- Clean inserts after each use to prevent build-up of metal debris.
- Replace inserts at the first sign of dullness to maintain cut quality.
- Store unused inserts properly to avoid damage or corrosion.
- Maintain machine tool alignment to reduce undue stress on your inserts.
Frequently Asked Questions
Q: Can this insert be used on materials other than stainless and low carbon steel?
While it's optimized for stainless steel and low carbon steel, using it on other materials may impact tool life and performance.
Q: What does the 3/64 corner radius mean for my machining?
This determines the roundness of the cutting edge, affecting surface finish and chip flow during cutting.
Q: How do I decide between standard cut and double cut?
Standard cut is for general purpose machining; double cut provides smoother finishes and is better for harder materials.
Q: Is the 1/2 inch inscribed circle a common size?
Yes, it fits many standard tool holders designed for inserts of this size.
Q: What is the advantage of the combo pin and clamp design?
It offers enhanced insert retention and stability during heavy cuts.
Q: How often should I replace these inserts?
Replace inserts when you notice wear, chipping, or a decline in cut quality for best results.
Q: Can these inserts be re-sharpened?
Typically, carbide inserts are designed to be replaced rather than resharpened.
Q: Is this product made in the USA?
Yes, the CNMP433 is proudly manufactured in the USA.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t miss out on upgrading your tool lineup with the CNMP433 Insert. Add it to your cart today and experience smoother, more efficient machining that keeps your projects moving forward without a hitch.
