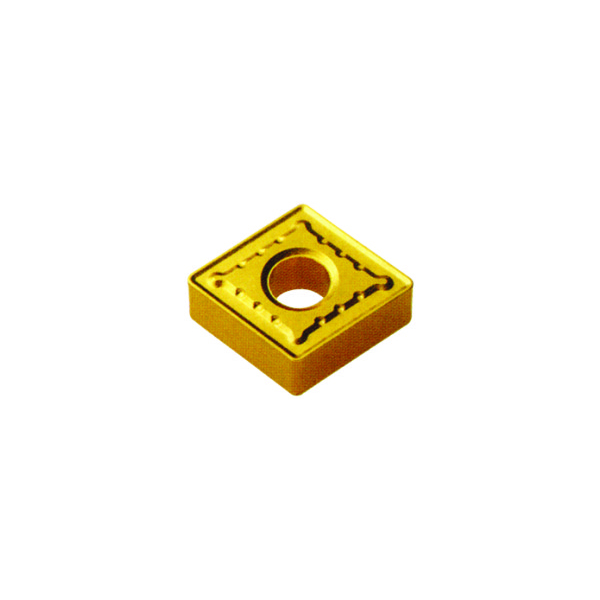

CNMG 19 06 16 Combo Pin and Clamp Insert
Product Overview
If you're navigating the world of metal cutting tools, the INSERT CNMG 19 06 16 is designed with precision and versatility in mind. Perfect for metalworking pros seeking reliability in their inserts.
This combo pin and clamp style CNMG insert offers the best of roughing, semi-finishing, and finishing capabilities, making it adaptable for various machining tasks.
With key features like a 3/4 inch inscribed circle, a 1/4 inch width, and a durable construction, it’s engineered for accuracy and long-lasting performance in demanding shop environments.
Key Features
- Combo pin and clamp design for secure mounting
- 3/4 inch inscribed circle (IC) for stability
- 1/4 inch cutting width optimizing versatility
- 1/16 inch corner radius allowing smooth finishes
- Standard or double cut for multiple surface requirements
- Durable carbide material for extended tool life
- Suitable for roughing, semi-finishing, and finishing cuts
- Precision through-hole diameter of 0.312 inch
- Compatible with a wide range of CNMG holders
- Reliable clamping reducing vibration during machining
Specifications
- Shape / Type: CNMG 19 06 16
- Cut Type: Carbide Insert
- Inscribed Circle (IC): 3/4 inch
- Width: 1/4 inch
- Corner Radius: 1/16 inch
- Through Hole Diameter: 0.312 inch
- Material Compatibility: Suitable for various metals
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: CNMG644
Reliability You Can Count On with Burrs4Less CNMG Inserts
When your manufacturing process depends on precision and uptime, Burrs4Less CNMG inserts bring the consistency you need. Their robust construction reduces the frequency of tool changes, minimizing downtime and saving on operational costs. Over time, this means less hassle and more reliable production schedules—exactly what professionals in busy shops demand. The combo pin and clamp setup offers a solid grip that significantly cuts down vibrations, resulting in better surface finishes and longer tool life.
Trusted Quality and Innovation from Burrs4Less
Backed by years of experience and a strong reputation in the metalworking industry, Burrs4Less delivers inserts engineered with innovation and quality at heart. Each CNMG insert undergoes rigorous quality control to ensure it meets industry standards for durability and performance. Plus, their focus on optimizing machining efficiency helps shops stay ahead of the competition by promoting consistency and cost-effective tooling solutions. when you choose Burrs4Less, you’re investing in tools that work as hard as you do.
Case Study: Real Business, Real Results
Denver, CO – A local manufacturing shop upgraded to this CNMG insert to boost efficiency on their multi-stage milling lines.
“Switching to this insert brought noticeable improvements in surface finish and cut consistency, which helped cut down rework significantly.”
Karen Mitchell – Production Manager
Output quality improved by 30%, reducing downtime for tool changes.
How the Combo Pin and Clamp Design Enhances Your Machining
The combo pin and clamp mounting system offers both strong holding power and easy insert replacement. Think of it like the sturdy clasp on your favorite backpack – it keeps everything secure, yet lets you quickly swap contents without hassle. This setup reduces vibration when cutting, resulting in cleaner finishes and longer tool life, making your work both smoother and more economical.
Installation and Maintenance Guide
Setting It Up
- Ensure the toolholder is clean before insert installation
- Place the CNMG insert onto the toolholder carefully aligning the pin and clamp
- Tighten clamp screws firmly but avoid over-torquing to prevent damage
- Double-check insert positioning for stability
- Use proper safety gear when handling cutting tools
Keeping It Going
- Inspect the insert regularly for signs of wear or chipping
- Keep your toolholder clean to ensure secure clamping
- Replace inserts promptly to maintain cutting quality
- Store inserts in a dry, organized space to avoid damage
- Follow machine manufacturer's recommendations for speeds and feeds
Frequently Asked Questions
Q: What metals is this CNMG insert compatible with?
A: This insert works well with a variety of metals, including steel, stainless steel, and cast iron.
Q: Can I use this insert for both roughing and finishing?
A: Yes, its combo design is versatile for roughing, semi-finishing, and finishing cuts.
Q: What does the corner radius of 1/16 inch mean for my cuts?
A: A smaller corner radius helps you achieve smoother finishes with less material stress.
Q: How important is the through hole diameter of 0.312 inch?
A: It ensures proper mounting and stability in your toolholder.
Q: Does the insert come in different cut types?
A: Yes, you can get standard or double cut versions depending on your surface finish needs.
Q: Is this insert compatible with all CNMG toolholders?
A: It's designed to fit a wide range of CNMG-compatible holders, but always double-check fit.
Q: How do I know when it’s time to replace the insert?
A: Replace when you notice decreased cutting quality or visible wear or chipping.
Q: Can I use this insert for woodworking?
A: This insert is specifically designed for metalworking and isn’t suitable for woodworking tasks.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let downtime slow you down—upgrade to the reliable INSERT CNMG 19 06 16 today. Get it from Burrs4Less and experience smoother cuts and longer tool life. Place your order now and keep your shop ahead of the curve!
