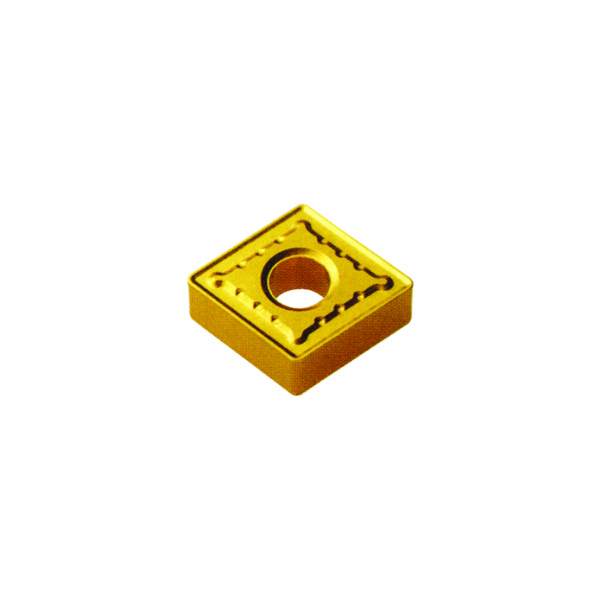

CNMG Combo Pin & Clamp Insert 3/4 IC
Product Overview
If you're looking for a versatile and robust cutting insert, the CNMG643 INSERT CNMG 19 06 12 is a solid choice. Designed for metalworking pros who need precision and durability, this tool delivers on all fronts.
Perfect for roughing, semi-finishing, and finishing operations, this combo pin and clamp insert fits various machining needs. Its sturdy construction means you can tackle challenging materials without worry.
With key features like a 3/4 inch inscribed circle and a 3/64 inch corner radius, this insert balances strength and finesse. Ready to improve your tooling setup? This insert is made to keep you cutting confidently.
Key Features
- Combo pin and clamp design for secure mounting
- Suitable for roughing, semi-finishing, and finishing tasks
- 3/4 inch inscribed circle (IC) size for versatility
- 1/4 inch insert width for durable cutting edges
- 3/64 inch corner radius allowing precise edge blends
- Standard cut or double cut options available
- Thru hole design for reliable clamping and stability
- Material compatible with a wide range of metals
- Easy to install and replace in standard CNMG tool holders
- Manufactured for consistent performance and long tool life
Specifications
- Shape / Type: CNMG Combo Pin and Clamp Insert
- Cut Type: Carbide Insert
- Head Diameter (Inscribed Circle): 3/4 inch (0.75)
- Width: 1/4 inch (0.25)
- Corner Radius: 3/64 inch (0.047)
- Thru Hole: Yes
- Material Compatibility: Wide range of metals for roughing to finishing
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: CNMG643
Enhancing Your Workshop with Burrs4Less CNMG Inserts
Investing in Burrs4Less CNMG643 inserts means you're not just getting any tool—you're getting a piece engineered for consistency and durability. Over the long haul, the secure combo pin and clamp system minimizes downtime for tool changes and adjustments, saving your production valuable minutes and dollars. The design reduces machine vibrations and tool wear, helping you maintain tight tolerances on every job while avoiding costly repairs or repeats. As your go-to for reliable carbide cutting tools, Burrs4Less reflects decades of innovation and understanding of machining challenges.
Our CNMG643 inserts are crafted in the USA with high-quality materials ensuring they can handle daily shop demands without faltering. Their universal fit with most standard holders and ability to tackle a variety of metals means more flexibility for your tooling inventory. Plus, the thorough testing Burrs4Less performs ensures every insert delivers dependable cutting force, lowering energy waste during machining. These inserts are an investment in smooth operations, elevated product quality, and ultimately, your business success.
Case Study: Real Business, Real Results
Midwest Machining Co., Ohio upgraded their tooling to the CNMG643 inserts for better finishing results.
"Switching to these inserts improved our surface finish while speeding up the semi-finishing process considerably. The secure clamp fit also reduced tool changes and downtime."
Mark Davis – Production Manager
Increased machining efficiency by 30%, reducing production bottlenecks.
How the Combo Pin and Clamp Design Keeps Your Insert Locked Tight for Reliable Cuts
The CNMG643 uses a combo pin and clamp mounting system, which might sound technical but is really about keeping your insert firmly in place. Think of it like a super-strong button holding a shirt together—this design locks the insert so it doesn’t wiggle or slip during work. This means smoother cuts, fewer tool changes, and less chance of damaging parts. when you’re cutting metal, stability is everything, and this setup ensures your inserts stay put no matter how rough the job.
Installation and Maintenance Guide
Setting It Up
- Wear safety glasses and gloves before handling inserts.
- Ensure tool holder compatibility with CNMG inserts.
- Remove old inserts carefully using proper tools.
- Clean the insert pocket to remove debris for a snug fit.
- Place the CNMG643 insert onto the holder aligning the pin and clamp slots.
- Tighten the clamp screw securely to prevent movement.
Keeping It Going
- Regularly check insert tightness during machining shifts.
- Inspect inserts for chip wear or edge damage.
- Replace inserts promptly when performance declines.
- Keep cutting fluids clean and well applied to reduce heat build-up.
- Store spare inserts in a dry, dust-free environment.
Frequently Asked Questions
Q: What materials can I machine with the CNMG643 insert?
A: These inserts work well on various metals including steel, stainless steel, cast iron, and some non-ferrous metals.
Q: Can I use both standard and double cut inserts with my existing holder?
A: Yes, as long as the holder supports CNMG inserts with combo pin and clamp mounting.
Q: How do I choose the right corner radius?
A: Smaller radii help with detailed finishing, while bigger radii enhance durability during roughing.
Q: What does the 'thru hole' feature help with?
A: It ensures the insert is securely clamped, reducing movement and improving cutting stability.
Q: Is this insert suitable for high-speed machining?
A: Yes, but always verify toolholder and machine specs to match recommended speeds.
Q: How often should I replace the insert?
A: Replace inserts when you see wear signs like chipping or poor surface finish.
Q: Does the insert come pre-sharpened?
A: Yes, these inserts are ready to use out of the box for immediate cutting performance.
Q: Can I use coolant with these inserts?
A: Absolutely, using coolant often extends insert life and helps maintain cutting quality.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Ready to boost your machining workflow? Grab the CNMG643 INSERT CNMG 19 06 12 now and experience improved tool reliability and cutting precision. Don't miss out on a tool that helps keep your projects moving smoothly and your shop efficient.
