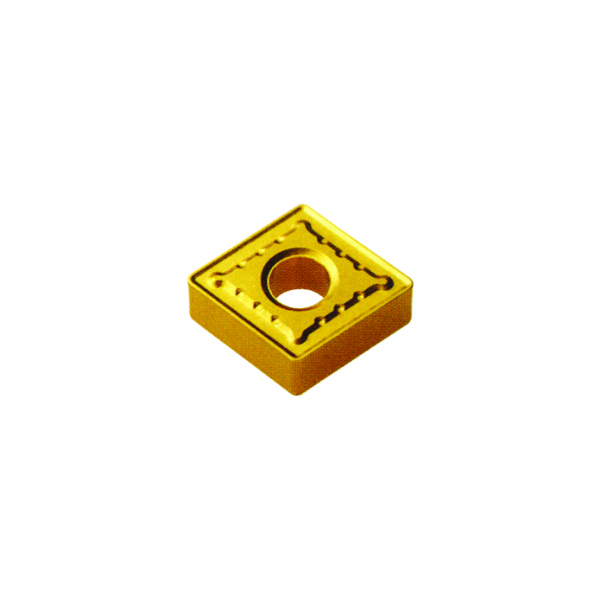

CNMG 19 06 08 Combo Pin and Clamp Insert
Product Overview
Meet the INSERT CNMG 19 06 08—designed to bring precision and versatility to your metalworking toolbox. Whether you’re roughing, semi-finishing, or finishing, this combo pin and clamp insert has got you covered.
If you’re a machinist or a shop owner looking for reliable inserts that perform consistently across different job stages, this CNMG style insert is a fantastic choice. Its design streamlines your workflow without compromising accuracy.
Engineered with a 3/4 inch inscribed circle and a snug 1/32 inch corner radius, this insert balances cutting power and surface finish, making your tasks smoother and more efficient every time.
Key Features
- Combo pin and clamp design for secure and flexible mounting
- 3/4 inch inscribed circle (IC) for extended cutting edge life
- Multiple cut options: Standard Cut or Double Cut for various material types and finishes
- Corner radius of 0.312 inches enhances finish quality and insert durability
- 1/4 inch width offers solid cutting strength and stability
- Versatile insert compatible with roughing, semi-finishing, and finishing operations
- Through-hole design for easy placement and precision locking
- Compatible with a broad range of CNC and manual machines
- Sharp edges for efficient material removal with minimal vibration
- Proven durability reduces the need for frequent replacements
Specifications
Shape / Type: CNMG
Cut Type: Carbide Insert
Head Diameter (IC): 3/4 inch (0.75")
Shank Diameter (Width): 1/4 inch (0.25")
Corner Radius: 1/32 inch (0.03125")
Overall Length: N/A (Insert Only)
Material Compatibility: Suitable for Roughing, Semi-Finishing, and Finishing Metal Surfaces
Brand / Manufacturer: Burrs4Less Premium Inserts
Made In: USA
SKU / Part Number: CNMG642
CNMG Inserts: Rugged Reliability Meets Precision Engineering
For shops that run heavy-duty metal cutting projects day in and day out, reliability isn’t just nice, it’s a must. The CNMG 19 06 08 inserts deliver consistent performance that means less downtime, fewer insert swaps, and smoother production runs. Their tough construction and secure mounting reduces vibrations, which protects your machines and helps keep repeat jobs on target. Over time, that translates into major savings – less wear on both your inserts and machines.
At Burrs4Less, we’ve built our reputation on delivering trusted quality tools that pros can count on. Our CNMG inserts are no exception, backed by manufacturing precision that meets the highest industry standards. You’re not just buying an insert—you’re investing in a cutting-edge solution proven across shops nationwide. Plus, the environmental bonus is in their lasting durability: fewer replacements mean less waste and a smaller carbon footprint, aligning quality with responsibility.
Case Study: Real Business, Real Results
Chicago, IL – A local metal fabrication shop needed faster turnaround and tighter tolerances on mixed batch orders.
"Switching to the CNMG642 inserts improved our cycle times dramatically without sacrificing surface finish. The combo pin and clamp system kept the inserts locked firmly even under tough cutting conditions."
Lisa Raymond – Operations Manager
Boosted throughput by 30% with less rework required.
How the Combo Pin and Clamp Design Boosts Your Cutting Confidence
Ever noticed how a well-secured tool bit feels rock solid versus one that wiggles just a bit? That’s exactly what this combo pin and clamp insert offers—dual locking mechanisms that work together for maximum stability. Imagine fastening a picture frame with both nails and strong adhesive; it won’t budge, even with a little nudge. This design prevents movement during cutting, which means cleaner cuts, longer tool life, and less downtime swapping out inserts.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free from debris.
- Align the combo pin and clamp insert properly into the seat.
- Secure the insert tightly by fastening both the pin and clamp screws.
- Double-check for stability by applying gentle manual force.
- Load your preferred cutting parameters based on material and operation type.
Keeping It Going
- Regularly inspect inserts for wear or chipping before every batch.
- Clean insert seats to maintain a snug fit and prevent vibrations.
- Rotate inserts to extend service life when applicable.
- Replace inserts promptly when signs of dullness appear for best finish quality.
- Store unused inserts in protective cases to avoid damage.
Frequently Asked Questions
Q: What materials are these CNMG inserts best suited for?
They work great for a variety of metals, including steels, stainless steel, and cast iron during roughing to finishing stages.
Q: What does the combo pin and clamp design mean?
It means the insert uses both a pin and clamp to hold it firmly in place, minimizing movement during cutting for better results.
Q: How do I know which cut type to choose?
Standard cut inserts are good for general use, while double cut inserts offer smoother finishes and are better for hard metals.
Q: What is the corner radius and why is it important?
Corner radius refers to the rounded edge measurement of the insert; it affects the finish quality and insert strength.
Q: Can this insert be used on CNC machines?
Yes, these inserts are designed for both manual and CNC machining applications.
Q: How often should I replace the insert?
Replace it when you notice dull edges or poor finish to maintain cutting efficiency.
Q: Does the 1/4 inch width affect compatibility?
It must match the tool holder specification; most standard CNMG holders support this width.
Q: What does '3/4 IC' mean?
It stands for 3/4 inch Inscribed Circle, basically the size of the insert's cutting edge circle which is critical for fitting the tool holder.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to upgrade your cutting operations—grab your CNMG 19 06 08 inserts now and experience the difference precise, stable, and durable inserts make. Stock up today and power through your projects with confidence and ease!
