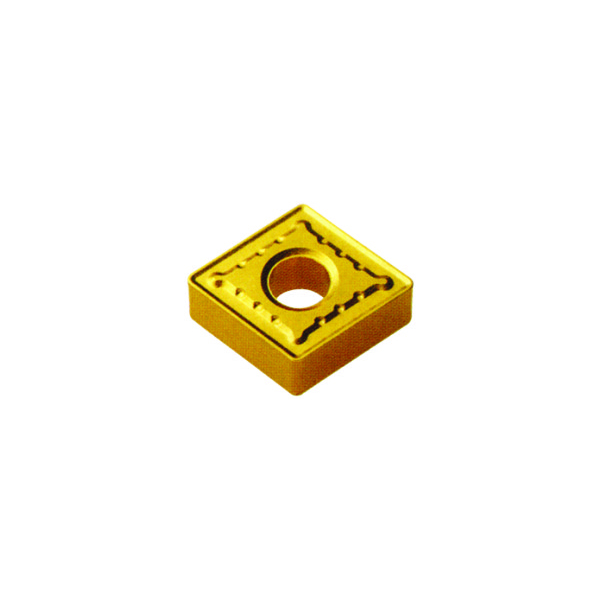

CNMG 16 06 16 Combo Pin Clamp Insert
Product Overview
If you're in the metalworking game, the CNMG544 INSERT CNMG 16 06 16 is crafted just for you. Designed with versatility in mind, it fits perfectly in a combo pin and clamp setup, making it your go-to for roughing, semi-finishing, and finishing tasks.
This insert shines on machines requiring precision without compromising on durability. Whether you're handling tough materials or intricate shapes, it delivers consistent performance every time.
Featuring a 5/8 inch inscribed circle and a handy 0.250 corner radius, it balances strength and sharpness so you can tackle any project with confidence and ease.
Key Features
- Combo pin and clamp design for secure fitting
- Suitable for roughing, semi-finishing, and finishing operations
- Standard or double cut options available for versatile applications
- 5/8 inch inscribed circle for optimal contact area
- Quarter-inch width to handle a range of cuts
- 0.250 inch corner radius for smooth edge transitions
- Through-hole design for easy mounting
- Durable construction suitable for demanding conditions
- Compatible with various metal materials
- Designed to minimize vibration and tool wear
Specifications
- Shape / Type: CNMG
- Cut Type: Carbide Insert
- Head Diameter (Inscribed Circle): 5/8 inch (0.625")
- Width: 1/4 inch (0.250")
- Corner Radius: 0.250 inch
- Thru Hole: Yes
- Material Compatibility: Suitable for roughing, semi-finishing, finishing
- Brand / Manufacturer: Burrs4Less Exclusive
- Made In: USA
- SKU / Part Number: CNMG544
Trusted Quality for Consistent Machining Success
The CNMG544 insert is more than just its specifications. Investing in this reliable tool means fewer interruptions, thanks to its robust construction that stands up to rigorous use. This durability reduces the frequency of replacements and downtime, which translates directly into cost savings and smoother shop operations. Over time, consistent performance like this builds trust with customers who expect precision and timely delivery.
Built in the USA with attention to detail, this insert benefits from Burrs4Less’s dedication to innovation and quality. Our long-standing reputation in the metalworking industry means you’re getting a product that’s tested and proven. Plus, the design incorporates environmental considerations by promoting longer tool life and reducing material waste, aligning with modern manufacturing goals for sustainability and efficiency.
Case Study: Real Business, Real Results
Located in Cleveland, OH, Precision Machine Works upgraded to CNMG544 inserts to handle a wide range of production tasks more efficiently.
"Switching to these CNMG inserts has made our finishing work smoother and cut our setup time in half. They hold up great under tough conditions and keep our turnaround fast."
Mark Randolph – Senior Machinist
Improved throughput by 35% while maintaining high precision quality
Why the Combo Pin and Clamp Design Is a Practical Win
Sometimes, the way an insert is held in place makes all the difference, right? The combo pin and clamp setup on this CNMG insert is like the best tag team— the pin keeps it centered while the clamp makes sure it stays locked in tight. Imagine needing to hold a picture frame steady while you hang it; the pin is your finger keeping it aligned, and the clamp is the wall hook holding it secure. This means less wiggle during cutting, cleaner finishes, and a longer tool life because it doesn’t shift or catch unexpectedly.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder matches the CNMG size and type.
- Clean mounting surfaces to prevent misalignment.
- Carefully position the insert using the pin for perfect centering.
- Tighten the clamp securely but avoid over-torquing.
- Double-check for any play or movement before operation.
Keeping It Going
- Regularly inspect for wear or chips on the cutting edge.
- Clean inserts after each use to remove residue and debris.
- Store unused inserts in a dry, organized container to avoid damage.
- Replace inserts promptly when dull to maintain quality and efficiency.
- Use appropriate coolant or lubrication based on the material cut.
Frequently Asked Questions
Q: What materials can the CNMG544 insert handle?
It is suitable for a variety of metals, including steel and stainless steel, tailored for roughing to finishing phases.
Q: Can I use both standard and double cut types interchangeably?
Yes, depending on your finish requirements, standard cuts are great for general use, while double cuts offer a smoother finish.
Q: What does the 0.250 corner radius impact?
The corner radius helps balance cutting strength and edge finish quality, excellent for versatile operations.
Q: Is the combo pin and clamp design compatible with all tool holders?
It's designed for specific holders; ensure that your tool holder supports CNMG combo pin and clamp inserts.
Q: How often should I inspect or replace the insert?
Check frequently for edge chipping or dulling—replace as soon as performance drops.
Q: Does the thru hole affect installation?
The thru hole simply makes mounting straightforward and secure, preventing movement during cutting.
Q: What is the significance of the 5/8 inch inscribed circle?
This size determines the insert’s fit in the holder and contact with the material, balancing strength and maneuverability.
Q: Can I use coolant with this insert?
Yes, coolant can be used based on material and machine requirements to extend tool life and improve finish.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
