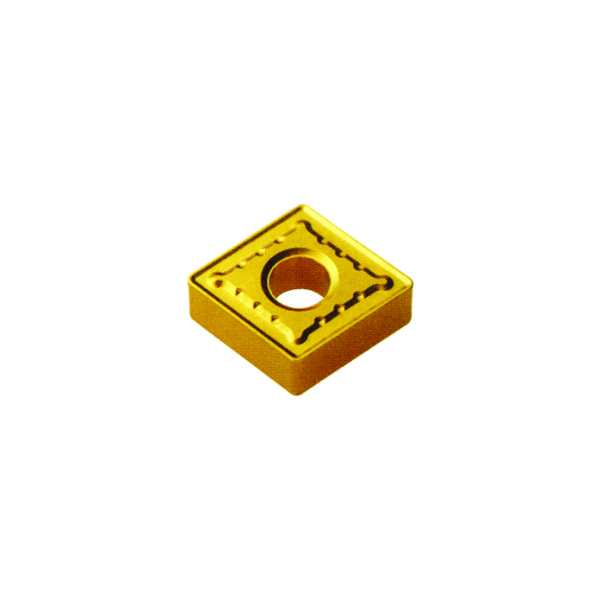

CNMG 16 06 08 Combo Pin and Clamp Insert
Product Overview
The CNMG542 INSERT CNMG 16 06 08 is a trusty insert designed to bring versatility and precision to your machining projects. Whether you’re roughing out material or putting on the finishing touches, this insert has you covered.
Ideal for metalworking professionals who demand reliability and performance, this combo pin and clamp insert handles a variety of tasks from roughing to semi-finishing and finishing with ease. It’s a solid choice for shops aiming to improve workflow without switching tools constantly.
With its 5/8" inscribed circle and 1/4" width, along with a 0.250" corner radius, this insert offers consistent results while maximizing tool life. Ready to elevate your machining game? This insert is a durable partner you can depend on.
Key Features
- Combo pin and clamp design provides secure and stable mounting
- Suitable for roughing, semi-finishing, and finishing operations
- Standard or double cut options available for flexible cutting performance
- 5/8" inscribed circle (IC) for compatibility with various holders
- 1/4" width ensures strength and rigidity during cutting
- 0.250" corner radius for balanced edge strength and finish quality
- Through hole design simplifies tool setup and reduces downtime
- Compatible with a wide range of materials and machining environments
- Precision-manufactured to tight tolerances for consistent performance
- Designed to extend tool life and reduce wear
Specifications
- Shape / Type: CNMG (Combo Pin and Clamp Insert)
- Cut Type: Carbide Insert
- Head Diameter (Inscribed Circle): 5/8" (0.625")
- Shank Width: 1/4" (0.25")
- Corner Radius: 0.250"
- Thru Hole: Yes
- Material Compatibility: For roughing, semi-finishing, and finishing various metals
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: CNMG542
Why Burrs4Less CNMG Inserts Deliver Consistent Long-Term Value
Beyond their solid specs, Burrs4Less CNMG inserts are built for steady, day-in and day-out performance that helps your shop stay productive longer. Their durable design reduces frequent replacements, helping you minimize downtime. This reliability means more predictable production schedules and lower overall tool costs, all while maintaining high-quality finishes.
The Burrs4Less brand prides itself on precision manufacturing and customer trust earned over years in the tooling industry. Innovating with designs like the combo pin and clamp ensures that machinists get not just inserts, but dependable solutions. Their inserts are made and supported right here in the USA, giving you confidence in availability, quality, and responsive service.
Case Study: Real Business, Real Results
Houston, TX – A custom steel fabrication shop upgraded to CNMG542 inserts to improve turnaround times and surface quality.
“Switching to these CNMG inserts cut our machining time nearly in half while delivering a finer finish on complex parts. The reliable mounting system minimizes any insert movement, which was a huge plus.”
Jessica Greene – Production Manager
Increased machining efficiency by 45% and improved surface finish consistency.
How the Combo Pin and Clamp Design Keeps Your Setup Rock-Solid
Think of the combo pin and clamp design like a seatbelt and airbag working together. The pin acts like a seatbelt, keeping the insert securely snapped in place, while the clamp adds an extra layer of hold to prevent any wiggle during those tough machining tasks. This means your insert stays steady even when cutting through stubborn metal, leading to safer, more precise cuts and longer tool life. So instead of worrying about shifting inserts or frequent replacements, you get consistent results lap after lap.
Installation and Maintenance Guide
Setting It Up
- Make sure the tool holder is clean and free from old insert debris.
- Align the insert so the pin seats squarely into its position.
- Secure the insert with the clamp mechanism, ensuring firm contact.
- Double-check the insert is flush and properly seated before starting.
- Confirm cutting direction aligns with the recommended insert orientation.
Keeping It Going
- Inspect inserts regularly for wear or chipping to avoid poor finishes.
- Clean the holder clamp and pin area to prevent buildup that could loosen the insert.
- Replace inserts promptly at the first signs of excessive wear.
- Use appropriate cutting speeds to prevent overheating and premature tool degradation.
- Store inserts in a dry, protected environment to maintain sharpness and prevent corrosion.
Frequently Asked Questions
Q: What materials can I machine with the CNMG542 insert?
The CNMG542 insert is designed for a range of metals including steel, stainless steel, and cast iron, covering roughing to finishing operations.
Q: How do I know if I need a standard cut or double cut insert?
Standard cut is suitable for general machining, while double cut reduces vibration and improves surface finish, ideal for finishing passes.
Q: What does the combo pin and clamp design mean?
It means the insert is secured with both a locating pin and clamp screw, offering extra stability during cutting for precision and safety.
Q: What is the significance of the 0.250" corner radius?
The corner radius balances edge strength with finish quality, providing durability without sacrificing smooth cuts.
Q: Can this insert be used for both roughing and finishing?
Yes! The CNMG542 is designed to handle roughing, semi-finishing, and finishing tasks effectively.
Q: How do I replace the insert safely?
Ensure the tool holder is clean, remove the old insert, seat the new one properly with the pin, then tighten the clamp securely.
Q: Does the through hole affect performance?
The through hole helps with quick mounting and precise positioning without affecting cutting performance.
Q: Is this insert compatible with all CNMG holders?
It fits standard holders designed for 5/8" inscribed circle CNMG inserts, but always double-check holder specifications.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t let your tooling slow you down—get your CNMG542 INSERT CNMG 16 06 08 today and experience precision, stability, and versatility in one package. Stock up now and keep your operation running smoothly!
