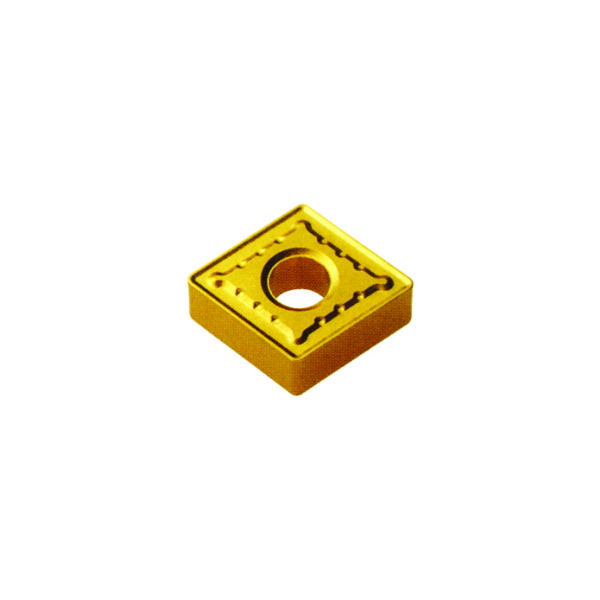

CNMG 12 04 08 Combo Pin and Clamp Insert
Product Overview
Looking for a reliable cutting insert that can handle a variety of machining tasks? The INSERT CNMG 12 04 08 is designed for versatility, combining roughing, semi-finishing, and finishing capabilities in one tool. Whether you're tackling metalworking or precision machining, this insert is geared for professionals aiming for consistent results.
This CNMG style insert features a combo pin and clamp design, which makes it ideal for stable and secure mounting. It's perfect for machinists who need to switch efficiently between rough cuts and fine detailing without changing tools. Spend less time swapping inserts and more time getting the job done.
With a half-inch inscribed circle and a 0.203 corner radius, this carbide insert offers precision where it counts. The 3/16 width lets you maintain control and balance throughout your machining process. Ready to upgrade your tool setup? This insert delivers dependable performance you can count on.
Key Features
- CNMG 12 04 08 style for versatile use in roughing, semi-finishing, and finishing
- Combo pin and clamp design ensures secure and stable tool holding
- Standard or double cut option for adapting to material and finish requirements
- Half-inch (1/2 IC) inscribed circle for compatibility with a wide range of tool holders
- 3/16" width balances strength and precision
- 0.203" corner radius for smooth edge transitions and reduced chipping
- Thru hole design simplifies insert mounting and replacement
- Durable carbide construction for long tool life and consistent cutting performance
- Ideal for metalworking tasks requiring flexibility and accuracy
- Works well in a variety of machining environments and materials
Specifications
- Shape / Type: CNMG 12 04 08
- Cut Type: Carbide Insert
- Inscribed Circle (IC): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 0.203 inch
- Thru Hole: Yes
- Material Compatibility: Suitable for roughing, semi-finishing and finishing metal cuts
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: CNMG432
Why Burrs4Less CNMG Inserts Stand Out Beyond Specifications
When it comes to long-term business value, these CNMG inserts help machine shops reduce downtime and maintenance costs. Their robust carbide construction ensures fewer insert changes and longer tool life, meaning less frequent tool swaps and minimized interruptions in production. The well-thought-out design reduces the risk of breakage and chipping, which can cause costly part rejects. Plus, Burrs4Less’ commitment to quality control means you consistently get inserts that perform as expected, batch after batch—helping you maintain reliability on the shop floor.
Our CNMG inserts reflect decades of innovation and industry leadership, earning respect among metalworking pros nationwide. Designed and manufactured in the USA, Burrs4Less combines precision engineering with environmental responsibility, ensuring our inserts minimize waste through durability and efficient cutting performance. From small job shops to large production facilities, our inserts deliver daily operational advantages—from consistent machining accuracy to simpler inventory management. Choosing Burrs4Less means investing in tools that go the distance.
Case Study: Real Business, Real Results
Location: Austin, Texas + Reason for upgrade: Improving tooling efficiency and reducing changeover time
"Switching to the CNMG 12 04 08 inserts has cut our setup times dramatically and improved the finish quality. Our machinists appreciate how steady and reliable these inserts are during both roughing and finishing passes."
Jessica M. – Production Manager
Measurable outcome: Increased output efficiency by 35% and reduced scrap rates by 12%
Why the Combo Pin and Clamp Design Makes All the Difference
The combo pin and clamp mechanism on this insert isn’t just for show—it’s what keeps your insert locked in place with precision and stability. Imagine trying to build a shelf using screws that constantly loosen; your shelf would wobble and fall apart. This design is like using the right screws and brackets, ensuring your cutting edge doesn’t shift under pressure, resulting in smoother cuts and longer insert life. The combo system also makes changing inserts quick and hassle-free, so you spend less time on setup and more time machining.
Installation and Maintenance Guide
Setting It Up
- Ensure your tool holder is clean and free from debris before inserting the CNMG 12 04 08.
- Align the insert properly with the clamp and pin for secure seating.
- Tighten the clamp firmly but avoid over-tightening to prevent damage.
- Use recommended torque settings from your tool holder manual.
- Double-check the insert sits flush to avoid vibration during cutting.
Keeping It Going
- Inspect the insert regularly for wear, especially on the cutting edges.
- Clean inserts after use to prevent material buildup that affects performance.
- Store extra inserts in a dry, organized place to prevent chipping and corrosion.
- Rotate the insert corners when wear appears to maximize tool life.
- Replace inserts promptly if noticeable chatter or poor finish appears.
Frequently Asked Questions
Q: What materials can the INSERT CNMG 12 04 08 be used on?
It's suitable for a range of metals including steel, cast iron, and certain non-ferrous materials, especially in roughing and finishing cuts.
Q: Can I use this insert in any CNMG tool holder?
It fits most standard CNMG holders that accept 1/2 inch inscribed circle inserts with thru hole mounting.
Q: What's the difference between standard and double cut?
Standard cut offers more aggressive material removal, while double cut provides a finer finish and reduces chatter.
Q: How does the combo pin and clamp design affect tool setup?
This design offers a secure locking mechanism for stable machining and faster insert changes.
Q: What is the purpose of the corner radius?
The 0.203 inch radius helps balance edge strength and finish quality by reducing chipping and smoothing cuts.
Q: How do I know when to replace this insert?
Replace it when you see noticeable wear on edges, poor finish quality, or chatter during operation.
Q: Is the insert compatible with all carbide machining operations?
Yes, but always check your specific cutting parameters for best performance.
Q: Does the thru hole affect cutting performance?
It does not affect cutting quality but makes installation and removal easier and more secure.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don't miss out on elevating your machining performance with the INSERT CNMG 12 04 08. Order now to experience the perfect balance of durability and precision, backed by Burrs4Less’ trusted quality. Let’s get your shop running smoother and more efficiently today!
