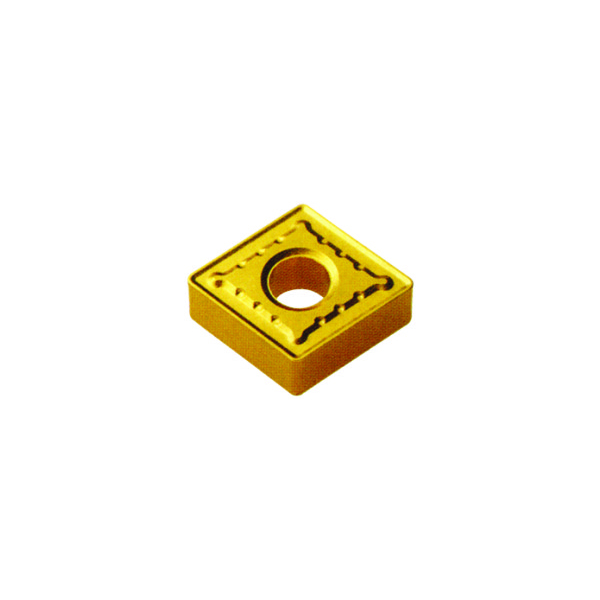

CNMG 12 04 04 Combo Pin Clamp Insert
Product Overview
If you’re diving into metalworking projects that demand precision and versatility, the CNMG431 INSERT CNMG 12 04 04 is a perfect fit. This insert is designed for professionals needing consistent results in roughing, semi-finishing, and finishing tasks.
Made with a combo pin and clamp style, it promises easy installation and reliable grip, making your workflow smoother and more efficient. Its compatibility with both standard and double cut types means it adapts to different surface finishes effortlessly.
Whether you're a machinist or a metal shop owner, this insert delivers a balance of durability and precision, helping you achieve that clean cut every time. Ready to upgrade your toolset? This CNMG insert might just be the missing piece.
Key Features
- Combo pin and clamp design ensures secure fitting.
- Suitable for roughing, semi-finishing, and finishing applications.
- Available in standard or double cut options for versatile surface finishes.
- 1/2 inch inscribed circle (IC) for reliable size consistency.
- 3/16-inch width supports heavy-duty metal removal.
- Corner radius of 1/64 inch (0.203) for precision edge work.
- Thru hole design for quick and efficient mounting.
- Durable construction promises long service life under tough conditions.
- Compatible with a wide range of tool holders.
- Ideal for professional metalworking environments.
Specifications
- Shape / Type: CNMG (Combo Pin and Clamp Insert)
- Cut Type: Carbide Insert
- Head Diameter (Inscribed Circle): 1/2 inch
- Width: 3/16 inch
- Corner Radius: 1/64 inch (0.203)
- Overall Length: not applicable (insert dimensions based on standard CNMG size)
- Material Compatibility: Metalworking (roughing to finishing stages)
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: CNMG431
Trust in Burrs4Less for Dependable Metalworking Tools
Beyond the crisp cuts and solid construction, choosing a Burrs4Less CNMG insert means investing in a legacy of quality. Manufactured right here in the USA, our inserts undergo rigorous quality checks, ensuring your operations keep moving without surprise downtime. Their wear-resistant carbide material reduces the need for frequent replacements, which means less time changing tooling and more time focused on production. That dependable performance translates to long-term savings for businesses, with fewer interruptions and less maintenance hassle.
Burrs4Less is a leader in metalworking tooling thanks to consistent innovation and customer focus. Our CNMG inserts are no exception—they combine thoughtful design with industry insight to provide inserts that are energy-efficient to produce and durable in use. This reduces material waste and supports greener operations while delivering the precision needed in today's competitive machining environments. With Burrs4Less, you get tools that keep your shop efficient, safe, and ready for whatever challenge comes next.
Case Study: Real Business, Real Results
Detroit, Michigan – A precision machining shop sought to improve finish quality and reduce tool change downtime.
"Switching to the CNMG431 insert reduced our tool swaps and improved finish consistency, saving us significant labor hours."
Anthony Ramirez – Shop Manager
Increased machining efficiency by 35% while maintaining tight tolerances.
How the Combo Pin and Clamp Design Boosts Your Cutting Efficiency
The combo pin and clamp style of this CNMG insert is like having a reliable handshake between your tool and cutting edge—solid and steady. Unlike other inserts that might wiggle or misalign under pressure, this design clamps down securely, preventing movement during cuts. Imagine trying to write with a pen that keeps slipping; the combo pin and clamp keep the insert perfectly in place, ensuring your cuts are clean and precise every time. This means less chatter, a smoother surface finish, and longer tool life because everything stays exactly where it should during operation.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of debris before inserting.
- Align the insert’s pin with the tool holder slot for accurate fitting.
- Tighten the clamp screw firmly but avoid overtightening to prevent damage.
- Verify that the insert is seated flush with the holder for optimal cutting angles.
- Wear safety gloves to prevent injury while handling sharp inserts.
Keeping It Going
- Inspect inserts regularly for signs of wear or chipping.
- Clean inserts after use to remove metal residues and prevent corrosion.
- Store unused inserts in a dry, organized container.
- Replace inserts promptly to maintain cutting quality and prevent machine damage.
- Follow manufacturer torque specifications for reinstalling inserts to maintain clamp integrity.
Frequently Asked Questions
Q: What material types is the CNMG431 insert best suited for?
It performs well on a wide variety of metals, including steels and alloys, from roughing to finishing stages.
Q: Can I use this insert in any tool holder?
It fits holders designed for CNMG inserts with a 1/2 inch inscribed circle and combo pin and clamp style.
Q: What is the difference between standard cut and double cut?
Standard cut is for general cutting, while double cut provides smoother finishes by reducing vibration.
Q: How often should I replace the insert?
Replace it when you notice dull edges or reduced surface finish quality to maintain performance.
Q: Is the 1/64 inch corner radius suitable for detailed work?
Yes, the small radius allows for precise finishing and detailed edge work.
Q: Does the combo pin and clamp design improve stability?
Absolutely, it ensures a secure fit preventing insert movement during operation.
Q: Are the inserts reusable?
They can be rotated to use multiple cutting edges but must be replaced once worn or damaged.
Q: What safety precautions should I take when installing the insert?
Use gloves to handle inserts carefully and ensure the tool holder is clean before installation.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to equip your shop with a reliable CNMG insert that makes your machining tasks smoother and more efficient. Order your CNMG431 INSERT CNMG 12 04 04 today and experience quality you can rely on for every cut.
