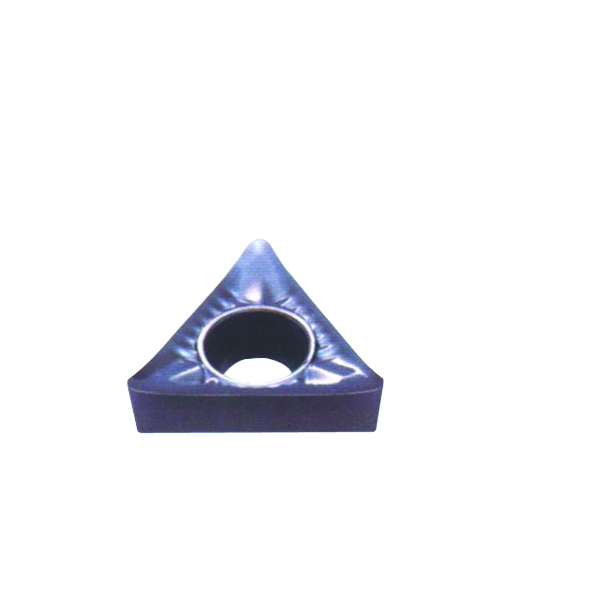

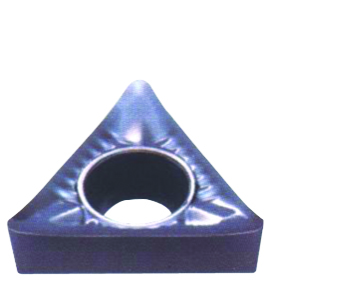

TCGX Style Screw-On Triangle Insert with Chipbreaker
Product Overview
Introducing the TCGX 32.51 INSERT 16 T3 04, a precision-engineered carbide insert designed for professional-grade metalworking tasks. This screw-on style insert features a triangle shape with a chipbreaker, boosting efficiency on tough materials.
Perfect for machinists and metal fabricators who demand reliable cuts and long tool life, this insert suits standard or double cut applications, ensuring versatility across jobs. Its 7-degree relief angle helps reduce tool wear and improve surface finish quality.
With a 3/8 I.C. and a razor-sharp 0.173-corner radius, you get accuracy in every edge. Whether you're fine-tuning or executing heavy-duty cuts, this insert is your trusty partner on the shop floor.
Key Features
- Screw-on style insert for easy replacement and secure fit
- Triangle shape enhances stability and cutting precision
- 7-degree relief angle minimizes tool wear and heat buildup
- Built-in chipbreaker for efficient chip control
- Compatible with both standard cut and double cut applications
- 3/8 inch inscribed circle (I.C.) size for versatility
- 5/32 inch width for balanced strength and accessibility
- Corner radius of 0.173 inch improves surface finish quality
- Thru-hole design allows for firm attachment to tool holders
- Durable carbide construction ensures long service life
Specifications
- Shape / Type: Triangle with Chipbreaker
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 3/8 inch
- Width: 5/32 inch
- Corner Radius: 0.173 inch
- Relief Angle: 7 degrees
- Thru Hole: Yes
- Attach Style: Screw-on
- Material Compatibility: Cut Type for metalworking
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TCGX 32.51
Why Burrs4Less TCGX Inserts Are an Investment You Won't Regret
Beyond just being sharp tools, these TCGX inserts pay off by minimizing downtime with their easy screw-on design. That means less time fiddling with changing inserts and more time focusing on delivering precise parts. Plus, thanks to their solid carbide build, they resist wear and chipping better than cheaper substitutes, cutting down replacement costs over time. It’s all about keeping your shop efficient and your budget in check.
As a brand, Burrs4Less prides itself on delivering trusted, USA-made industrial tools that professionals count on daily. Our inserts reflect decades of expertise and feedback from machinists nationwide, ensuring the products match real-world needs. This legacy means you're not just buying a tool; you're investing in quality, consistency, and support that keeps your operations running smoothly year after year.
Case Study: Real Business, Real Results
Located in Cleveland, OH, Precision Metalworks upgraded their tooling inserts to reduce downtime and improve cut quality.
"Switching to the TCGX screw-on inserts drastically cut our tool change times and made chip evacuation smoother than ever before. Our production rates jumped without sacrificing finish quality."
Mark Reynolds – Production Supervisor
Increased output by 35% while lowering tool change downtime by 20%.
Why the 7-Degree Relief Angle Makes a Cut Above the Rest
That 7-degree relief angle on the TCGX insert might seem technical, but it’s actually a clever design that helps the insert slide smoothly through metal without dragging. Think of it like the angle on a knife – too flat, and it sticks; just the right angle, and it slices cleanly and easily. This small but important tilt reduces friction and heat buildup, which means your tools last longer and your workpiece looks sharper. Less resistance equals better accuracy and less wear on your machine—a win-win!
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder is clean and free of debris before installation.
- Align the insert properly with the screw-on seating surface.
- Hand-tighten the screw to avoid cross-threading.
- Use a torque wrench to tighten the screw to manufacturer’s recommended torque.
- Double-check for secure fit to prevent movement during operation.
Keeping It Going
- Inspect the insert regularly for signs of wear or chipping.
- Clean the insert and tool holder after each use to prevent buildup.
- Replace worn inserts promptly to maintain cutting quality.
- Store spare inserts in a dry, organized case to avoid damage.
- Avoid overheating by using proper cutting speeds and lubrication.
Frequently Asked Questions
Q: What materials is this insert best suited for?
This TCGX insert works great on a variety of metals, especially steel and tough alloys.
Q: Can I use this insert with both standard and double cut applications?
Yes, the insert supports both standard cut and double cut operations effectively.
Q: How do I ensure the screw-on insert fits correctly?
Make sure the insert matches the tool holder size and screws in without cross-threading; use the right torque to secure it.
Q: What does the chipbreaker on this insert do?
The chipbreaker helps control and break metal chips during cutting, improving safety and surface finish.
Q: Is the 7-degree relief angle adjustable?
The relief angle is fixed in the insert design to optimize cutting performance and reduce tool wear.
Q: How often should the insert be replaced?
Replace it when signs of chipping, excessive wear, or poor cutting performance appear.
Q: Does this insert require special storage conditions?
Store inserts in a dry, organized case to avoid damage and corrosion.
Q: Can I use this insert on wood or plastics?
This insert is designed specifically for metalworking; it's not recommended for wood or plastic.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don't wait to upgrade your tooling with the reliable TCGX 32.51 INSERT 16 T3 04. Order now and experience smoother cuts, easier insert changes, and a more productive workflow today!
