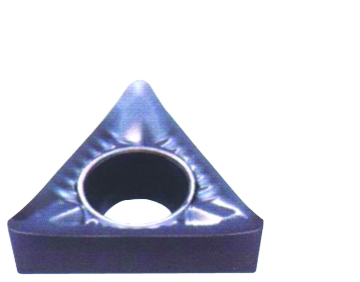

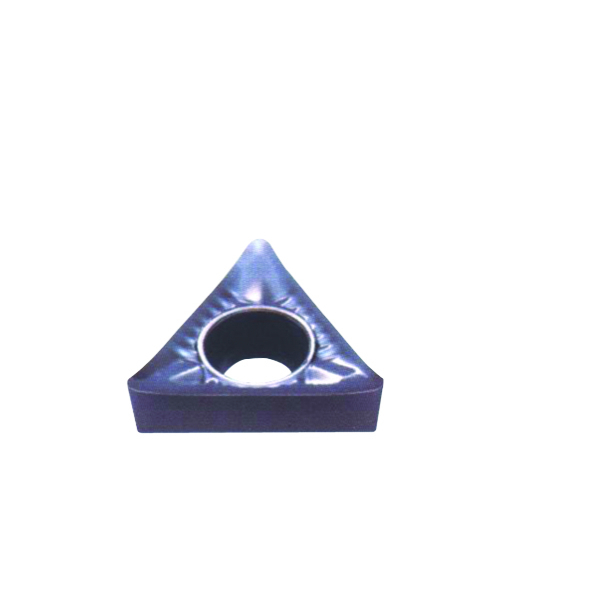

TCGX Screw-On Triangle Insert with Chipbreaker
Product Overview
Meet the TCGX 32.50 INSERT 16 T3 02 – a sturdy screw-on style carbide insert designed with a 7-degree relief angle. It features a triangle shape with a chipbreaker, making it a smart choice for precision metal cutting tasks.
This insert is perfect for machinists and metalworking pros looking to get a clean, consistent cut with standard or double cut options. It’s built with a 3/8 inch inscribed circle and has a .173 inch corner radius for versatile use.
Whether you're upgrading your existing toolset or tackling new projects, this insert delivers durability and control that helps you get the job done right the first time.
Key Features
- Screw-on style insert for easy and secure attachment
- 7 degree relief angle for efficient cutting
- Triangle shape design with chipbreaker improves chip control
- 3/8 inch inscribed circle (I.C.) size for standardized fits
- 5/32 inch width offering balanced strength and precision
- 0.008 inch corner radius enables fine detailing and edge work
- Suitable for both standard and double cut applications
- Thru hole design for versatile mounting options
- Ideal for a wide range of metalworking tasks
- Long-lasting carbide material ensures durability and wear resistance
Specifications
- Shape / Type: Triangle with chipbreaker
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 3/8 inch (0.375)
- Shank / Width: 5/32 inch (0.156)
- Corner Radius: 0.173 inch
- Thru Hole: Yes
- Relief Angle: 7 degrees
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TCGX 32.50
Elevating Your Metalworking Beyond Basic Tools
Investing in a high-quality insert like the TCGX 32.50 isn’t just about the immediate cut quality; it means fewer breakdowns and lower maintenance headaches down the road. Its robust chipbreaker design and precise relief angle contribute to consistent finishes and prolonged tool life, helping you avoid costly downtime. For shops running multiple shifts, this reliability adds up to significant operational savings over time.
Burrs4Less has a solid reputation built on delivering cutting tools that meet professional standards at competitive prices. Their commitment to innovation means you’re not just getting an insert, but a tool backed by industry knowledge and US-based quality assurance. This combo ensures your business stays efficient, competitive, and ready to tackle complex jobs day after day.
Case Study: Real Business, Real Results
Dallas, Texas – Upgrading to the TCGX inserts for increased machining accuracy
"Since switching to the TCGX 32.50 inserts, we've noticed a remarkable improvement in cut quality and tool longevity. The chipbreaker really helps control debris, which speeds up our workflow considerably."
Amanda Collins – Lead Machinist
Reduced tool change frequency by 35%, boosting production uptime.
Why the Chipbreaker Design Makes a Difference
The chipbreaker on this insert works like a tiny traffic controller for metal shavings. By breaking big chips into smaller pieces, it prevents jams and keeps your machining smooth and consistent. Think of it like chopping firewood into manageable logs; it’s easier to handle and less likely to cause blockages. This means less downtime and a cleaner work environment.
Installation and Maintenance Guide
Setting It Up
- Ensure the tool holder matches the 3/8 inch inscribed circle size.
- Align the insert's thru hole with the holder's mounting screw.
- Secure the insert firmly using the screw, but avoid over-tightening.
- Check that the 7-degree relief angle is correctly oriented for your cutting direction.
- Verify chipbreaker edges face outward to optimize chip flow.
Keeping It Going
- Regularly inspect the insert for wear or damage to maintain cut quality.
- Clean chips and debris after each use to prevent buildup.
- Replace the insert before corners get too rounded to avoid poor finishes.
- Store unused inserts in a dry area to prevent corrosion.
- Use proper coolant or lubrication to extend insert life during machining.
Frequently Asked Questions
Q: What materials is this insert compatible with?
This insert works great with a variety of metals, including steel and cast iron.
Q: Can I use this insert for both roughing and finishing?
Yes, the standard or double cut options offer flexibility for different machining tasks.
Q: Is the chipbreaker design beneficial for all types of cuts?
Chipbreakers help mostly during heavy cutting by controlling chip flow and reducing heat buildup.
Q: What tool holders are compatible with the 3/8 inch insert?
Any tool holder designed for triangular inserts with a 3/8 inch inscribed circle will fit.
Q: How tight should I screw down the insert?
Secure it firmly but avoid overtightening, which can damage the insert or holder.
Q: Does the insert require coolant during use?
Using coolant or lubricant can extend tool life, but some dry machining applications are also possible.
Q: What’s the advantage of the 7-degree relief angle?
This angle helps reduce friction and allows the insert to cut efficiently without rubbing.
Q: Can I reuse an insert if only one edge is worn?
Most triangular inserts can be rotated to use other edges until fully worn.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Don’t wait to upgrade your metalworking setup with our reliable TCGX 32.50 inserts. Place your order today and experience cleaner cuts, longer tool life, and smoother operation that keeps your projects on track.
