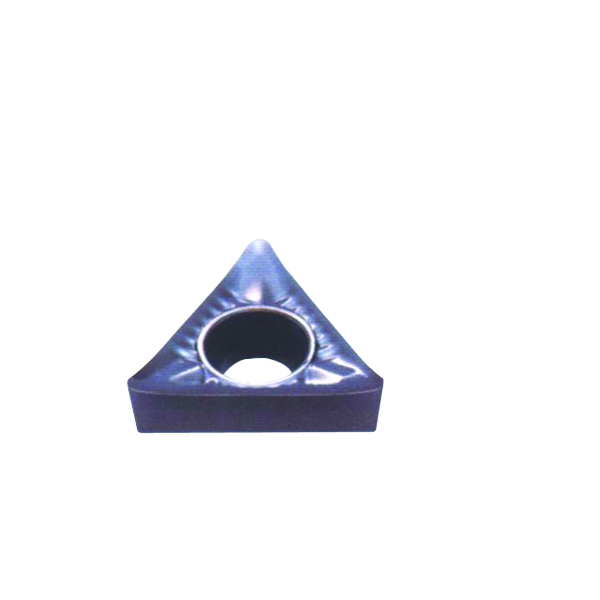

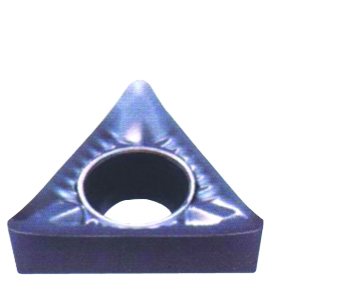

TCGX Screw-On Triangle Insert 1/4 I.C.
Product Overview
Looking for a reliable insert to upgrade your cutting tools? The TCGX 21.51 INSERT 11 02 04 is designed to deliver precise and consistent results for metalworking professionals.
This insert features a screw-on style with a 7-degree relief angle and a triangular shape complete with a handy chipbreaker, perfect for managing debris and keeping your work smooth.
Whether you’re refining your lathe setup or in need of a sturdy replacement, this TCGX insert offers reliability you can count on, making your machining tasks easier and more efficient.
Key Features
- Screw-on style insert ensures secure attachment
- 7-degree relief angle for optimized cutting
- Triangular shape for versatile machining applications
- Built-in chipbreaker reduces chip clogging
- Standard or double cut options available
- 1/4 inch inside circle (I.C.) dimension
- 3/32 width for precision cutting
- Corner radius of 0.110 inch offers smooth edges
- Thru hole design for streamlined mounting
- Compatible with various metalworking setups
Specifications
- Shape / Type: Triangle with chipbreaker
- Cut Type: Carbide Insert
- Head Diameter (I.C.): 1/4 inch
- Width: 3/32 inch
- Corner Radius: 0.110 inch
- Thru Hole: Yes
- Relief Angle: 7 degrees
- Style: Screw-on Insert
- Brand / Manufacturer: Burrs4Less
- Made In: USA
- SKU / Part Number: TCGX 21.51
Durability and Performance You Can Rely On
The TCGX 21.51 insert is built to deliver consistent performance over time, reducing the frequency of tool changes and minimizing machine downtime. Its sturdy construction and reliable chipbreaker design help maintain clean cuts day in and day out, offering you peace of mind on longer production runs. This reliability translates into lower costs and less waste, making it a smart investment for serious shops.
A Trusted Name in Professional Machining
Manufactured in the USA, Burrs4Less carries a heritage of quality and innovation in cutting tools. The TCGX line continues that tradition with attention to precision and user needs. Whether it’s industry certification or user feedback, these inserts meet the high standards professionals expect. Beyond specs, that trust means you’re getting a tool that works as hard as you do.
Case Study: Real Business, Real Results
Located in Detroit, MI, Precision Machining Solutions upgraded their tooling with the TCGX inserts to improve productivity.
"Switching to Burrs4Less' TCGX inserts gave us steadier performance and reduced downtime dramatically."
Michael Thompson – Plant Manager
Boosted throughput by 35% while cutting maintenance intervals in half.
How the Chipbreaker Keeps Your Work Clean and Efficient
The built-in chipbreaker on the TCGX insert might sound technical, but think of it like a leaf blower for your cutting operation. It’s designed to break up the metal chips as you cut, preventing them from piling up and clogging your tool area. This means smoother cutting, less heat buildup, and less frequent cleaning, keeping your workflow steady and your finished product neat.
Installation and Maintenance Guide
Setting It Up
- Make sure the lathe or cutter is powered off before installing.
- Align the insert so the hole fits snugly onto the mounting screw.
- Securely tighten the screw for a firm attachment without overtightening.
- Check the 7-degree relief angle positioning for proper cutting geometry.
- Inspect the chipbreaker area for any debris before use.
Keeping It Going
- Regularly clean the insert and chipbreaker to prevent buildup.
- Inspect the insert for signs of dulling or wear after each use.
- Replace the insert promptly to avoid rough cuts and tool damage.
- Store spare inserts in a dry, secure place to maintain quality.
- Use proper cutting speeds recommended for your material to extend insert life.
Frequently Asked Questions
Q: What types of machines are compatible with the TCGX 21.51 insert?
This insert is designed primarily for lathes and other machines that accept screw-on triangular inserts with a 1/4 inch I.C.
Q: Can I use this insert for cutting materials other than metal?
While optimized for metalworking, it can be used on some harder woods with care, but it's not designed for soft materials like plastics.
Q: Which cut type should I choose: standard or double cut?
Standard cut is best for general use, while double cut offers smoother finishes and reduced burrs on tougher materials.
Q: How does the chipbreaker benefit my machining process?
The chipbreaker helps manage and break chips during cutting, leading to less clogging and smoother operation.
Q: Is the corner radius important?
Yes, the 0.110 inch radius balances sharpness with durability, providing good edge strength without sacrificing finish quality.
Q: What is the relief angle for?
The 7-degree relief angle prevents the insert from rubbing on the material, reducing heat and wear during cutting.
Q: How do I know when to replace the insert?
Replace when you notice dullness, chipping, or inconsistent finishes to maintain cutting quality.
Q: Does the thru hole design affect installation?
The thru hole allows the insert to be securely fastened with screws, ensuring stable placement.
-
Q: How do I know when it’s time to Replace or Resharpen the burr?
Replace or Resharpen it when you notice decreased cutting efficiency or visible wear on the cutting edges.
Why Choose Burrs4less?
Discover top reasons to pick our carbide burrs for your projects. Factory-direct quality at wholesale prices.
-
Premium Quality
Pro-grade tungsten carbide burrs for durable, precise work.
-
Affordable Pricing
Wholesale rates from USA manufacturer, high performance.
-
Fast & Free Shipping
24-hour shipping, free on $100+ orders.
-
Expert Guidance
Team assists in picking ideal burr for materials.
Ready for Order
Ready to enhance your machining setup with a proven, high-quality insert? Order your TCGX 21.51 INSERT 11 02 04 now and experience smooth, efficient cutting like never before. Don’t wait—upgrade your workflow today!
